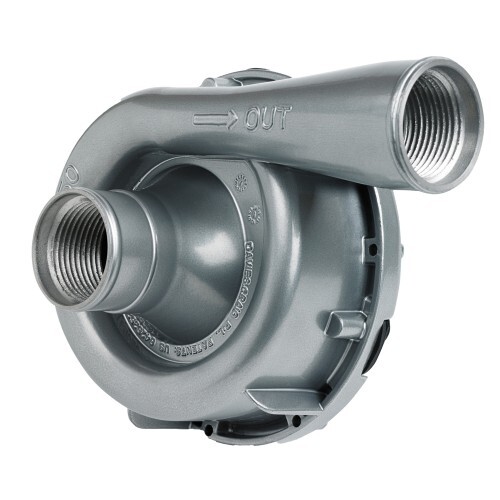

EWP®150 Remote Electric Water Pump (12V) (Part #8160)

The EWP®150 Alloy Electric Water Pump is designed for remote mounting in the engine bay, making it an ideal solution for high-horsepower, turbocharged, supercharged, and modified engines. It is extensively used in intercooler applications and provides efficient cooling for engines generating excessive heat.

This rugged, high-flow pump eliminates the parasitic power losses of mechanical water pumps, delivering up to 10kW (13hp) of additional power and improving overall engine performance.

CONTENTS

Part Description Units
EWP®150 Alloy 1

TECHNICAL SPECIFICATIONS

Operating Voltage 3V DC to 15V DC
Maximum Current 10A @ 13V
Flow Rate (Max) 162 L/min (42.8 US gal/min)
Operating Temp. -40°C to 120°C (-40°F to 248°F)
Pump Weight 1170 grams (2.6 lbs)
Pump Material Aluminum (Powder Coated)
Burst Pressure 500 kPa (72.5 PSI)
Seal Ceramic Face Seal
Fits Hose Sizes 35mm to 51mm (1?" to 2")
Push-On Fitting Size

38mm (Options: 44mm with 3mm Sleeve #8510, 51mm with 6mm Sleeve #8511)

Internal Fittings Inlet & Outlet: -16AN ORB

EWP & Controller Installation Demonstration
