EWP®115 Nylon Combo Remote Electric Water Pump & Controller (12V) (Part #8930)

Take complete control of your engine cooling with the EWP®115 Nylon Electric Water Pump and LCD EWP®/Fan Digital Controller. This system is suitable for small, medium, large, high-performance, and 4WD vehicles. It improves engine cooling control and capacity while increasing power, torque, and fuel efficiency.

The EWP®115 eliminates the parasitic power losses of a mechanical belt-driven pump, releasing up to an additional 10kW (13hp). The pump continues to operate after engine shutdown, eliminating "heat soak" and extending engine life. It is extensively used in intercooler applications.

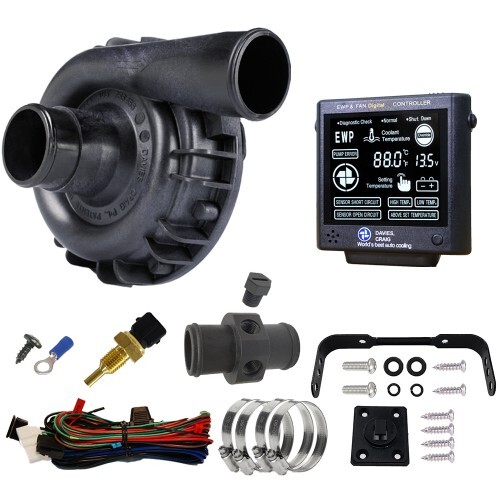

COMBO CONTENTS
Part Description Units
EWP®115 - Nylon 12V Assembly 1
Hose Clamps 4
Wiring Harness - EWP & Fan Controller 1
EWP/Fan Digital Controller 1
Adapter - Nylon - Inline, 35mm (2 x 1/4" NPT) 1
1/4" NPT Nylon Bung 1
U-Bracket for Controller 1
Mounting Plate for Controller 1
Screw - Self Tap 8x3/8 BZ 1
Blue 6mm Ring Terminal 1
Sensor Thermal - Coolant Temp - 1/4" NPT Thread 1

TECHNICAL SPECIFICATIONS
Operating Voltage 3V DC to 15V DC
Maximum Current 10A @ 13V
Flow Rate (Max) 139 L/min (36.7 US gal/min) @ 13V DC
Operating Temp. -40°C to 120°C (-40°F to 248°F)
Pump Weight 920 grams (2.03 lbs)
Pump Material Nylon 66, 30% Glass-Filled
Burst Pressure 500 kPa (72.5 PSI)
Inlet & Outlet 38mm Push-on Barb (Options: 44mm with 3mm Sleeve #8510, 51mm with 6mm Sleeve #8511)

EWP & Controller Installation Demonstration
