EWP®150 BLACK Kit Remote Electric Water Pump (12V) (Part #8065)

Celebrating 50 years of Davies Craig Pty Ltd, the **BLACK LABEL** Limited Edition EWP®150 Remote-Mounted Electric Water Pump offers high performance, compactness, and modern style. This matte-black powder-coated pump is ideal for high-horsepower, turbocharged, supercharged, and modified engines, as well as intercooler applications.

The EWP®150 Black Alloy unit features -AN16 ORB internal fittings for neat and secure screw-in applications. It complements or replaces existing mechanical water pumps, eliminating parasitic power losses and increasing engine efficiency by freeing up to 10kW (13hp).

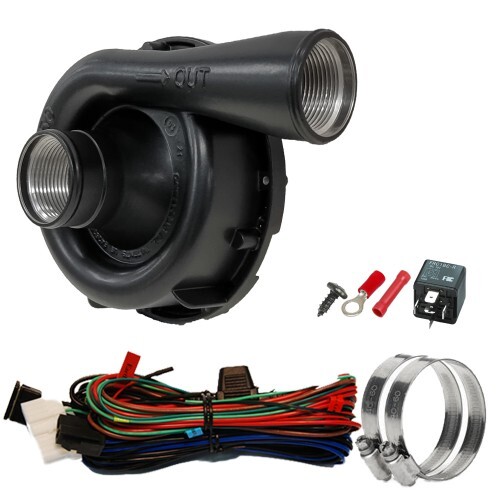

KIT CONTENTS
Part Description Units
EWP®150 Black Alloy 1
EWP Basic Wiring Harness 1
Hose Clamps 2
Red Wire Joiner 1
Red 6mm Ring Terminal 1
Relay - 12V 40 Amp 5 Pin with Resistor Protection 1
Screw - Self Tap 8x3/8 BZ 1

TECHNICAL SPECIFICATIONS
Operating Voltage 3V DC to 15V DC
Maximum Current 10A @ 13V
Flow Rate (Max) 162 L/min (42.8 US gal/min)
Operating Temp. -40°C to 120°C (-40°F to 248°F)
Pump Weight 1170 grams (2.6 lbs)
Pump Material Aluminum (Powder Coated)
Burst Pressure 500 kPa (72.5 PSI)
Seal Ceramic Face Seal
Self-Priming No
Fits Hose Sizes 35mm to 51mm (1?" to 2")
Push-On Fitting Size

38mm (Options: 44mm with 3mm Sleeve #8510, 51mm with 6mm Sleeve #8511)
Internal Fittings Inlet & Outlet: -16AN ORB

EWP & Controller Installation Demonstration
