EWP®115 Alloy Kit Remote Electric Water Pump (12V) (Part #8040)

The EWP®115 Alloy Electric Water Pump delivers 115 litres per minute of coolant flow and is ideal for small, medium, large, high-performance, and 4WD vehicles. It improves engine cooling control, capacity, and fuel economy while enhancing power and torque.

This pump is a practical alternative to belt-driven water pumps, which sap engine power. By hardwiring the EWP®115 into your electrical system, it bypasses the engine and releases up to an additional 10kW (13hp). It is also extensively used in intercooler applications.

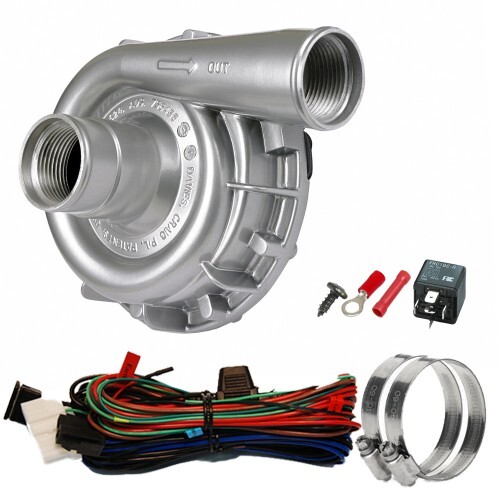

KIT CONTENTS
Part Description Units
EWP®115 Alloy 12V 1
EWP® Basic Wiring Harness 1
Hose Clamps 2
Red Wire Joiner 1
Red 6mm Ring Terminal 1
Relay - 12V 40 Amp 5 Pin with Resistor Protection 1
Screw - Self Tap 8x3/8 BZ 1

TECHNICAL SPECIFICATIONS
Voltage 12 Volt Pump
Operating Voltage 3V DC to 15V DC
Maximum Current 10A @ 13V
Flow Rate (Max) 139 L/min (36.7 US gal/min) @ 13V DC
Operating Temp. -40°C to 120°C (-40°F to 248°F)
Pump Design Clockwise centrifugal with volute chamber
Pump Weight 920 grams (2.03 lbs)
Pump Material Aluminum (Powder Coated)
Burst Pressure 500 kPa (72.5 PSI)
Seal Ceramic Face Seal
Self-Priming No
Fits Hose Sizes 35mm to 51mm (1?" to 2")
Push-On Fitting Size 38mm Inlet & Outlet (Options: 44mm with 3mm Sleeve #8510, 51mm with 6mm Sleeve #8511)

EWP & Controller Installation Demonstration
