Mantic Clutch Kit, Stage 5, Performance, 200 mm x 22T x 24.5 mm, For Mazda MX5 1.6 Ltr, B6 NA306, 1/89-12/93 1989-1993, Kit

Description

Designed and manufactured to replace the clutch system installed as Original Equipment, a Mantic Stage 5 replacement clutch kit offers a strong torque capacity increase. Each component has been thoroughly tested and developed for a specific application. This range provides a Quality Assured replacement part that will meet or exceed the requirements of the original unit. After 70 years of experience in developing and manufacturing clutch kits for OEM and Aftermarket use, CI is the trusted source for a complete range of Clutch Kits suited to your vehicle. MANTIC STAGE SERIES COVER ASSEMBLY: Mantic Stage 5 clutch kits feature a 20% increase (over original equipment) in clamp load for increased torque capacity. SPHEROIDAL GRAPHITE CASTINGS: Approximately 300% stronger than a standard casting this material (sometimes referred to as an Anti Burst casting) not only increases strength by up to 3 times, it also improves heat dispersion. BALANCED COVERS: To insure that the clutch system performs at maximum efficiency and that no unwanted vibration is generated as the cover spins, all Mantic Stage cover assemblies undergo a 2 stage balancing process. CERAMETALLIC FRICTION MATERIAL CLUTCH PLATE - NON CUSHIONED, NON SPRUNG: The Torque Capacity of a Clutch Plate can be increased by using exotic cerametallic friction material featuring a higher coefficient of friction. However, cerametallic material reduces pedal feel and results in more sudden clutch engagement, reducing street driveability. Mantic Stage 5 Clutch Kits feature cerametallic friction material on both sides of the clutch plate, no segment cushioning and no hub springs. This results in a strong torque capacity increase compared with Stage 2 and more sudden engagement compared with Stage 3 or 4 kits. This type of configuration is not suitable for street use; but instead is finely tuned for the aggressive shifting required for various forms of motorsport. If you require a significant torque capacity increase, but still wish to drive your vehicle on the road, we recommend you purchase a Mantic Track multi plate clutch kit.

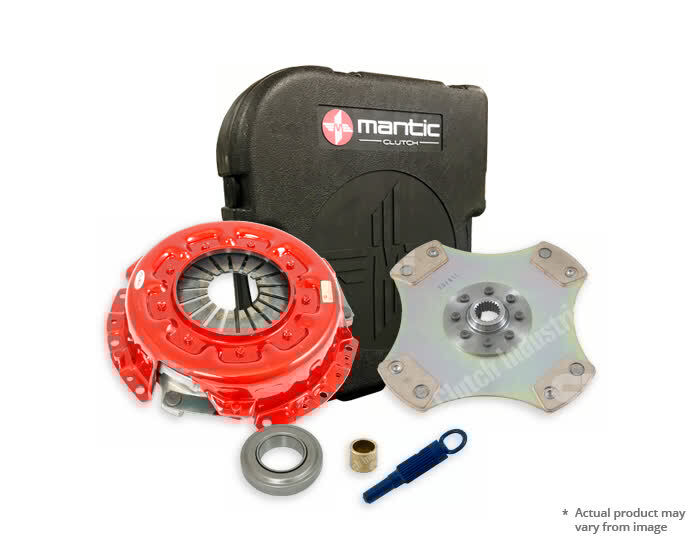

This kit includes : MANTIC Heavy Duty Cover Assembly, Full Cerametallic, No Cushion, Non Sprung (SC) Clutch Plate For Increased Torque capacity. Not for Daily Drive; Track Only., Release bearing, Clutch Alignment Tool, Spigot Bearing

Features and Specifications

Mantic Heavy Duty SGI Cover Assembly

Full Cerametallic Clutch Plate, Non-Cushion, Non-Sprung

Dual Mass Flywheel: Not Included

Flywheel Step: 0.5

Solid Flywheel: Not Included

Concentric Slave Cylinder: Not Included

Spigot: RSB506

Alignment Tool: CAT152

Torque Capacity: Peak: 432Nm, Rated: 345Nm

Fitment:

Mazda MX5 1.6 Ltr, B6 NA306, 1/89-12/93 1989-1993
