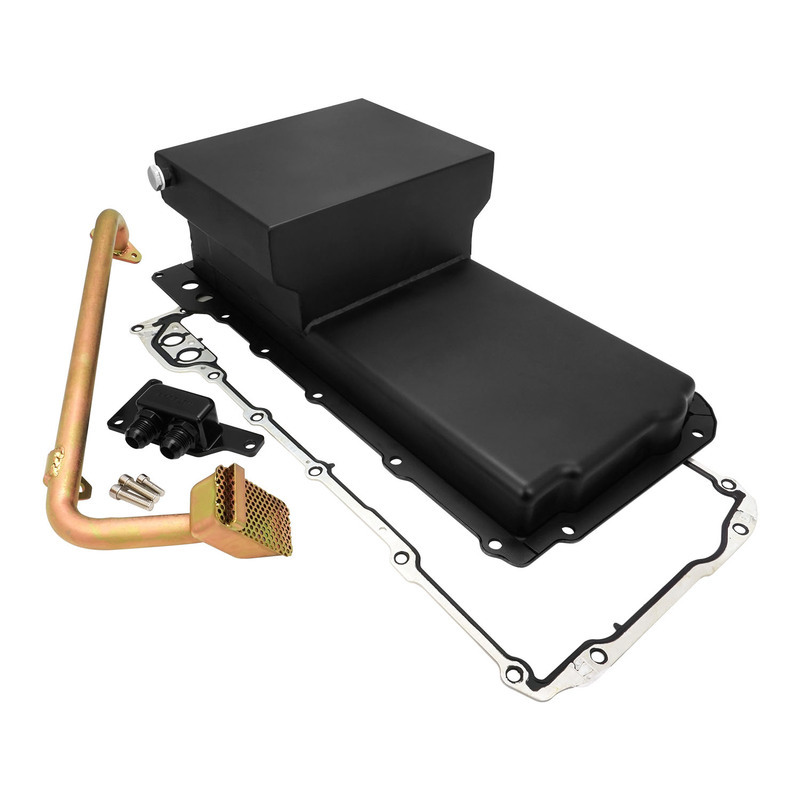

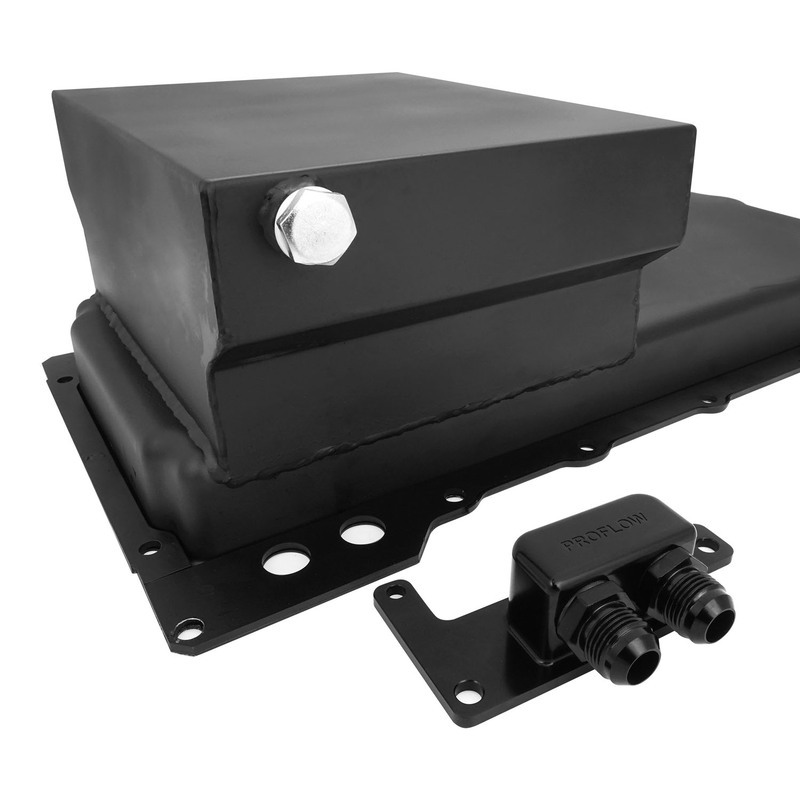

RTS’ LS fabricated oil pans allow for fitment in a wide variety of Holden/Chevrolet vehicles where a bulky cast aluminium pan cannot be used due to clearance issues. Fabricated from either 3 mm steel or 9.5 mm thick aluminium, these low profile pans have anti-slosh baffles and four trap doors to correctly baffle oil while maintaining a 6.5 L capacity. A wide variety of options are available which include remote oil filter kits or in-built AN10 fittings and come with a matte black coating. Designed for Gen III and IV LS wet sump applications.

Note: The aluminium front sump versions can be made to suit VB-VT Holden Commodores with LS engines.

Features:

  • Rear sump version suits a wide variety of 1970-1990s RWD GM vehicles
  • Sump is 6” deep for increased ground clearance
  • Pan depth at front half of pan is 1 5/8” for increased K-member/steering clearance
  • 21” length overall with the sump 10” long
  • 10 1/4” wide at sump kickouts
  • Fits stroker kits up to 4.125” stroke with OE connecting rod design

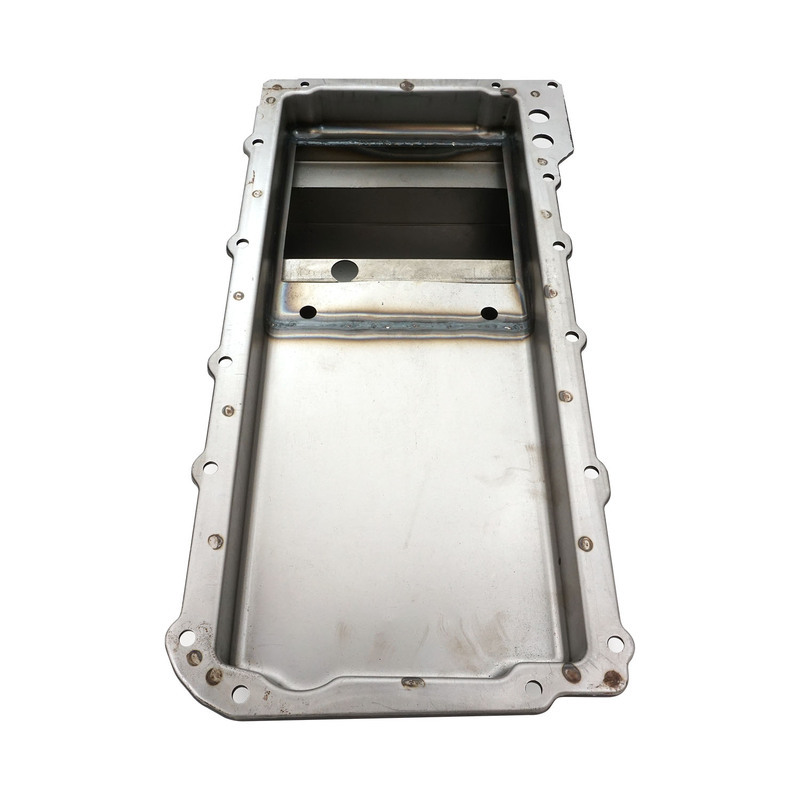

  • Anti-slosh baffles with a trap door ensures oil is always around the pickup during acceleration and braking
  • Pick-up tubes are included with all pans
  • Kit part numbers also include a dipstick and FRAM oil filter
