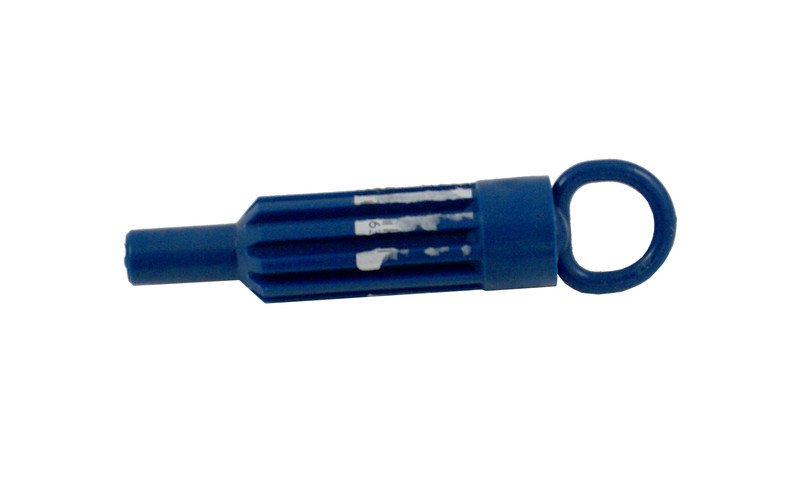

Installing a new clutch is an exercise in frustration, mainly because you have to manhandle a giant transmission underneath your car. The last thing you want to do is have to start all over because the clutch plate slipped out of alignment and won't engage with the input shaft. Save yourself some time and effort and use a clutch alignment tool to make sure this does not happen to you. The tools are very simple, made from injection moulded plastic or nylon, you need the tool that matches your transmission. This is a matter of knowing the spline count on the input shaft. If the splines don't line up, it won't work. Do not try to fudge it with a tool that does not fully engage the spines. If your clutch alignment tool does not fit the pilot bearing/bushing, it is the wrong one, you need to get the correct one. On the back of the engine, the flywheel bolts to the crank. Inside the crank is a recess for the bearing. The tip of the clutch alignment tool locks into the bearing, keeping your clutch in place. First, insert the tool into the clutch plate. Make sure the clutch is facing the correct direction. The tool should stick all the way through the spines on the plate. Then place the clutch on the flywheel, and engage the alignment tool into the pilot bushing or bearing in the centre of the crankshaft. Push the clutch tight to the flywheel. The tool goes into the clutch plate, and then the tool is installed into the bearing on the flywheel. It should not move around at all. With the clutch on the flywheel, install the pressure plate to the flywheel and start the bolts. Wiggle the alignment tool to make sure it is fully engaged and seated in the pilot bushing/bearing. Tighten the pressure plate bolts in a criss-cross pattern and then torque to spec. The clutch alignment tool stays in the clutch until you are ready to install the transmission. While the pressure place should hold the clutch from moving, don't take the risk of pulling the tool out too soon. Once the transmission is ready to install, pop the tool out, and slide the transmission into place. Every application has a different clutch tool. These three tools look similar, and may even mesh together, but they are all different.Features and SpecificationsClutch Industries (CI) Clutch Alignment ToolMandatory use on Clutch InstallsEnsure optimum clutch life and performanceDual Mass Flywheel: Not IncludedConcentric Slave Cylinder: Not IncludedFitment:Bedford CF Red Motor CFL, Torquemaster, 1/73-12/81 1973-1981Bedford CF Red Motor CFL, Aussie, 1/73-12/81 1973-1981Bedford CF Red Motor CFS, Torquemaster, 1/73-12/81 1973-1981Bedford CF Red Motor CFS, Aussie, 1/73-12/81 1973-1981Buick 350ci, V8 1/68-12/73 1968-1973Buick 300ci 1/64-12/67 1964-1967Buick 340ci 1/66-12/67 1966-1967Buick 300ci 1/64-12/67 1964-1967Buick 401ci, V8 1/66-12/66 1966-1966Buick 350ci, V8 1/70-12/73 1970-1973Buick 455ci 4 Speed, 1/70-12/71 1970-1971Chevrolet Bel Air 230ci, 6 Cyl 1/63-12/65 1963-1965Chevrolet Bel Air 283ci, V8 1/57-12/67 1957-1967Chevrolet Bel Air 235ci, 6 Cyl 1/54-12/54 1954-1954Chevrolet Bel Air 236ci, 6 Cyl 1/50-12/53 1950-1953Chevrolet Bel Air 235ci, 6 Cyl 1/57-12/62 1957-1962Chevrolet Bel Air 250ci, 6 Cyl 1/66-12/71 1966-1971Chevrolet Bel Air 217ci, 6 Cyl 1/50-12/52 1950-1952Chevrolet Bel Air 327ci, V8 1/62-12/67 1962-1967Chevrolet Bel Air 350ci, V8 1/69-12/72 1969-1972Chevrolet Bel Air 283ci, V8 1/66-12/67 1966-1967Chevrolet Bel Air 327ci, V8 1/68-12/69 1968-1969Chevrolet Bel Air 409ci, V8 1/62-12/64 1962-1964Chevrolet Bel Air 235ci, 6 Cyl 1/57-12/62 1957-1962Chevrolet Bel Air 250ci, 6 Cyl 1/72-12/73 1972-1973Chevrolet Bel Air 250ci, 6 Cyl 1/66-12/71 1966-1971Chevrolet Bel Air 265ci, V8 1/55-12/57 1955-1957Chevrolet Bel Air 235ci, 6 Cyl 1/55-12/62 1955-1962Chevrolet Bel Air 230ci, 6 Cyl 1/63-12/65 1963-1965Chevrolet Bel Air 348ci, V8 1/58-12/61 1958-1961Chevrolet Bel Air 283ci, V8 1/57-12/67 1957-1967Chevrolet Bel Air 348ci, V8 1/58-12/61 1958-1961Chevrolet Bel Air 427ci, V8 1/66-12/69 1966-1969Chevrolet Bel Air 350ci, V8 1/69-12/72 1969-1972Chevrolet Bel Air 250ci, 6 Cyl 1/72-12/73 1972-1973Chevrolet Bel Air 283ci, V8 1/57-12/67 1957-1967Chevrolet Bel Air 396ci, V8 1/66-12/69 1966-1969Chevrolet Bel Air 327ci, V8 1/67-12/69 1967-1969Chevrolet Bel Air 265ci, V8 1/57-12/57 1957-1957Chevrolet Blazer 7.4 Ltr. V8 1/73-12/95 1973-1995Chevrolet Blazer 5.7 Ltr. V8 2/91-12/94 1991-1994Chevrolet Blazer 6.2 Ltr. V8 1/90-12/91 1990-1991Chevrolet C Series 7.4 Ltr. V8 C10, 1/73-12/80 1973-1980Chevrolet C Series 7.4 Ltr. V8 C10 Suburban, 1/73-12/80 1973-1980Chevrolet C Series 350ci V8 C20, 1/79-12/81, C20903 1979-1981Chevrolet C Series 292ci 6 Cyl C20, 1/76-12/78, C20903 1976-1978Chevrolet C Series 7.4 Ltr. V8 C20, 1/73-12/86 1973-1986Chevrolet C Series 7.4 Ltr. V8 C20 Suburban, 1/73-12/86 1973-1986Chevrolet C Series 350ci V8 C30, 1/79-12/81, C31403 1979-1981Chevrolet C Series 292ci 6 Cyl C30, 1/76-12/78, C31403 1976-1978Chevrolet C Series 7.4 Ltr. V8 C30, 1/73-12/86 1973-1986Chevrolet C Series 5.7 Ltr. V8 C1500, 1/96-12/99 1996-1999Chevrolet C Series 5.7 Ltr. V8 C1500 Suburban, 1/96-12/99 1996-1999Chevrolet C Series 5.7 Ltr. V8 C1500, 2/91-12/95 1991-1995Chevrolet C Series 5.7 Ltr. V8 C1500 Suburban, 1/92-12/95 1992-1995Chevrolet C Series 5.7 Ltr. V8 C2500, 1/96-12/00 1996-2000Chevrolet C Series 5.7 Ltr. V8 C2500 Suburban, 1/96-12/99 1996-1999Chevrolet C Series 7.4 Ltr. V8 C2500, 1/91-12/95 1991-1995Chevrolet C Series 5.7 Ltr. V8 C2500, 2/91-12/95 1991-1995Chevrolet C Series 6.2 Ltr. V8 C2500, 1/90-12/93 1990-1993Chevrolet C Series 5.7 Ltr. V8 C2500 Suburban, 1/92-12/95 1992-1995Chevrolet C Series 7.4 Ltr. V8 C2500 Suburban, 1/92-12/95 1992-1995Chevrolet C Series 5.7 Ltr. V8 C3500, 1/96-12/00 1996-2000Chevrolet C Series 5.7 Ltr. V8 K1500, 1/96-12/99 1996-1999Chevrolet C Series 5.7 Ltr. V8 K1500 Suburban, 1/96-12/99 1996-1999Chevrolet C Series 5.7 Ltr. V8 K2500, 1/96-12/00 1996-2000Chevrolet C Series 5.7 Ltr. V8 K2500 Suburban, 1/96-12/99 1996-1999Chevrolet C Series 5.7 Ltr. V8 K3500, 1/96-12/00 1996-2000Chevrolet Camaro 350ci, V8 1/67-12/70 1967-1970Chevrolet Camaro 305ci, V8 1/76-12/82 1976-1982Chevrolet Camaro 396ci, V8 1/68-12/68 1968-1968Chevrolet Camaro 302ci, V8 1/67-12/68 1967-1968Chevrolet Camaro 3.8 Ltr, V6 1/80-12/81 1980-1981Chevrolet Camaro 267ci, V8 1/80-12/81 1980-1981Chevrolet Camaro 327ci, V8 4 Speed, 1/67-12/69 1967-1969Chevrolet Camaro 307ci, V8 1/69-12/73 1969-1973Chevrolet Camaro 327ci, V8 3 Speed, 1/67-12/69 1967-1969Chevrolet Camaro 305ci, V8 1/76-12/77 1976-1977Chevrolet Camaro 396ci, V8 1/67-12/70 1967-1970Chevrolet Camaro 350ci, V8 1/67-12/70 1967-1970Chevrolet Camaro 402ci V8 1/71-12/72 1971-1972Chevrolet Chevelle 230ci, 6 Cyl 1/64-12/69 1964-1969Chevrolet Chevelle 250ci, 6 Cyl 1/68-12/73 1968-1973Chevrolet Chevelle 194ci, 6 Cyl 1/64-12/66 1964-1966Chevrolet Chevelle 307ci, V8 4 Speed, 1/68-12/73 1968-1973Chevrolet Chevelle 327ci, V8 1/64-12/68 1964-1968Chevrolet Chevelle 283ci, V8 4 Speed, 1/64-12/67 1964-1967Chevrolet Chevelle 350ci, V8 1/70-12/73 1970-1973Chevrolet Chevelle 283ci, V8 4 Speed, 1/64-12/67 1964-1967Chevrolet Chevelle 307ci, V8 3 Speed, 1/68-12/73 1968-1973Chevrolet Chevelle 327ci, V8 1/64-12/68 1964-1968Chevrolet Chevelle 283ci, V8 3 Speed, 1/64-12/67 1964-1967Chevrolet Chevelle 400ci, V8 1/70-12/70 1970-1970Chevrolet Chevelle 350ci, V8 1/69-12/69 1969-1969Chevrolet Chevelle 402ci, V8 1/72-12/72 1972-1972Chevrolet Chevelle 396ci, V8 1/66-12/69 1966-1969Chevrolet Corvette 283ci FI, V8 C1, 1/57-12/61 1957-1961Chevrolet Corvette 327ci, V8 C1, 1/62-12/62 1962-1962Chevrolet Corvette 283ci, V8 C1, 1/57-12/61 1957-1961Chevrolet Corvette 327ci, V8 C2, 1/63-12/64 1963-1964Chevrolet Corvette 427ci, V8 C2, 1/66-12/67 1966-1967Chevrolet Corvette 427ci, V8 C2, 1/66-12/67 1966-1967Chevrolet Corvette 327ci, V8 C2, 1/66-12/67 1966-1967Chevrolet Corvette 427ci, V8 C3, 1/68-12/69 1968-1969Chevrolet Corvette 327ci, V8 C3, 1/68-12/68 1968-1968Chevrolet Corvette 350ci, V8 C3, 1/69-12/72 1969-1972Chevrolet Corvette 427ci, V8 C3, 1/68-12/69 1968-1969Chevrolet El Camino 250ci, 6 Cyl 1/71-12/77 1971-1977Chevrolet El Camino 3.8 Ltr, V6 1/78-12/79 1978-1979Chevrolet El Camino 350ci, V8 1/69-12/78 1969-1978Chevrolet El Camino 3.3 Ltr, V6 1/79-12/79 1979-1979Chevrolet El Camino 305ci, V8 1/79-12/81 1979-1981Chevrolet El Camino 3.8 Ltr, V6 1/78-12/82 1978-1982Chevrolet El Camino 327ci, V8 1/64-12/68 1964-1968Chevrolet El Camino 307ci, V8 1/71-12/73 1971-1973Chevrolet El Camino 230ci, 6 Cyl 1/64-12/69 1964-1969Chevrolet El Camino 3.3 Ltr, V6 1/78-12/78 1978-1978Chevrolet El Camino 250ci, 6 Cyl 1/68-12/70 1968-1970Chevrolet El Camino 305ci, V8 1/76-12/78 1976-1978Chevrolet El Camino 194ci, 6 Cyl 1/64-12/65 1964-1965Chevrolet El Camino 402ci, V8 1/71-12/72 1971-1972Chevrolet El Camino 396ci, V8 1/67-12/69 1967-1969Chevrolet El Camino 400ci, V8 1/70-12/70 1970-1970Chevrolet G Series 5.7 Ltr. V8 G10, 1/96-12/97 1996-1997Chevrolet G Series 5.7 Ltr. V8 G20, 1/96-12/97 1996-1997Chevrolet G Series 5.7 Ltr. V8 G30, 1/96-12/97 1996-1997Chevrolet G Series 5.7 Ltr. V8 G1500, 1/98-12/98 1998-1998Chevrolet G Series 5.7 Ltr. V8 G2500, 1/98-12/98 1998-1998Chevrolet G Series 5.7 Ltr. V8 G3500, 1/98-12/98 1998-1998Chevrolet Impala 230ci, 6 Cyl 1/63-12/65 1963-1965Chevrolet Impala 235ci, 6 Cyl 1/59-12/62 1959-1962Chevrolet Impala 250ci, 6 Cyl 1/66-12/71 1966-1971Chevrolet Impala 327ci, V8 1/62-12/67 1962-1967Chevrolet Impala 283ci, V8 1/59-12/67 1959-1967Chevrolet Impala 409ci, V8 1/62-12/64 1962-1964Chevrolet Impala 235ci, 6 Cyl 1/59-12/62 1959-1962Chevrolet Impala 327ci, V8 1/68-12/69 1968-1969Chevrolet Impala 283ci, V8 1/66-12/67 1966-1967Chevrolet Impala 350ci, V8 1/69-12/72 1969-1972Chevrolet Impala 250ci, 6 Cyl 1/72-12/73 1972-1973Chevrolet Impala 250ci, 6 Cyl 1/66-12/71 1966-1971Chevrolet Impala 283ci, V8 1/59-12/67 1959-1967Chevrolet Impala 348ci, V8 1/59-12/61 1959-1961Chevrolet Impala 235ci, 6 Cyl 1/59-12/62 1959-1962Chevrolet Impala 230ci, 6 Cyl 1/63-12/65 1963-1965Chevrolet Impala 427ci, V8 1/66-12/69 1966-1969Chevrolet Impala 348ci, V8 1/59-12/61 1959-1961Chevrolet Impala 250ci, 6 Cyl 1/72-12/73 1972-1973Chevrolet Impala 396ci, V8 1/66-12/69 1966-1969Chevrolet Impala 327ci, V8 1/67-12/69 1967-1969Chevrolet Impala 283ci, V8 1/59-12/67 1959-1967Chevrolet Impala 350ci, V8 1/69-12/72 1969-1972Chevrolet K Series 292ci 6 Cyl Petrol K20 4WD, 6/78-10/78, K20903 1978-1978Chevrolet Malibu 3.8 Ltr, V6 1/78-12/78 1978-1978Chevrolet Malibu 230ci, 6 Cyl 1/66-12/67 1966-1967Chevrolet Malibu 194ci, 6 Cyl 1/64-12/66 1964-1966Chevrolet Malibu 250ci, 6 Cyl 1/73-12/77 1973-1977Chevrolet Malibu 307ci, V8 4 Speed, 1/73-12/73 1973-1973Chevrolet Malibu 283ci, V8 4 Speed, 1/64-12/67 1964-1967Chevrolet Malibu 3.8 Ltr, V6 1/78-12/81 1978-1981Chevrolet Malibu 350ci, V8 1/73-12/80 1973-1980Chevrolet Malibu 3.3 Ltr, V6 1/79-12/79 1979-1979ORANGE
