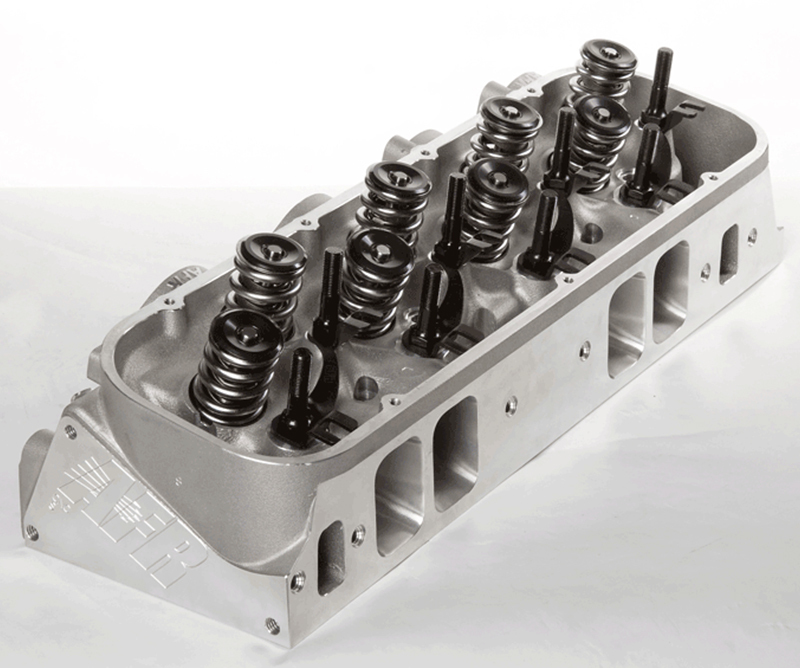

AFR 377cc Magnum BBC Competition racing heads feature 100 percent CNC-ported intakes, exhausts, and chambers; A356 aluminum castings, Titanium retainers, and high-quality components throughout. These Magnum BBC heads are best suited for large displacement (540 plus) racing engines operating at or below 7600 rpm. They are available assembled and bare. AFR assembled 377cc Magnum BBC heads typically include: * 11/32 in. intake valves * 11/32 in. Tulip exhaust Valves * PAC Racing Spring 1.625 O.D. Solid Roller, 275 lbs. on seat, .850 maximum lift * 10 degree Titanium retainers * 10 degree 11/32 in. valve locks with lash cap recess * ARP 7/16 in. rocker intake and exhaust studs * Adjustable 3/8 in. guide plates * 11/32 in. Viton® valve seals * Hardened spring cup * Intake and exhaust valve seats * 11/32 in. intake and exhaust bronze valve guides
