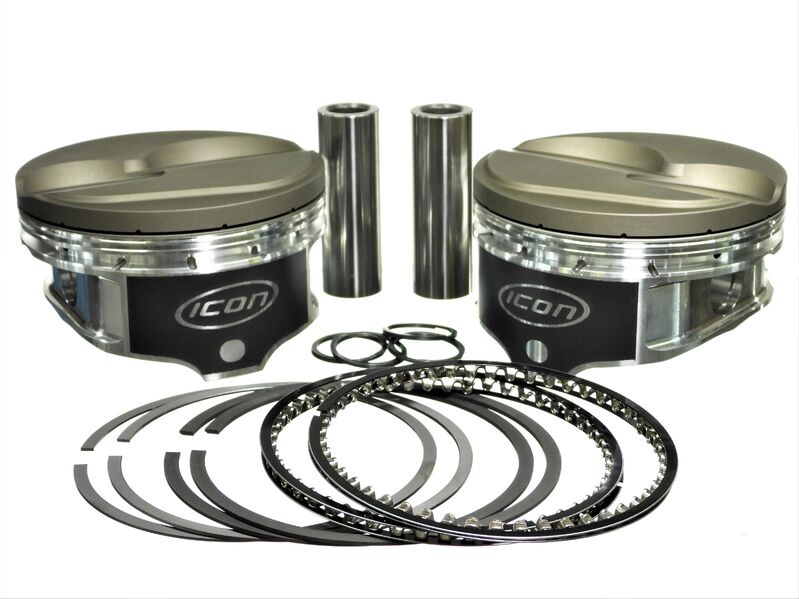

ICON Piston - Chrysler/Dodge 572ci/9.4L (V8) Kit with Rings (PART #UNI-IC433CAKTS.STD)

ICON forgings are created at UEM's in-house facility, utilizing the latest innovations in piston forging technology. Each ICON piston is purpose built from the ground up for extreme high-performance street or racing applications. From the FHR series to the LCAT, ICON offers the most diverse and fully-featured Off the Shelf forged piston on the market today. No matter what your high-performance application calls for, there is an ICON piston for you.

Click here to view the Installation Guide

SPECIFICATIONS

Engine Family Mopar Big Block Aftermarket Block
Engine Family Big Block RB
Eng. Disp. In. 572
Piston Material Forged 2618 Alloy
Stroke (in) 4.5
Stroke (in) 4.500
Stroke (mm) 114.30
Stroke (mm) 114.3
Rod (in) 7.1
Rod (in) 7.100
Rod (mm) 180.34
Compression Height IN 1.355
Compression Height MM 34.4
Compression Height mm 34.42
Ring Pack .043, 1/16, 3/16
Pin Diameter (in) 0.990
Pin Diameter (mm) 25.15
Pin Type Floating
Pin Configuration Centered
Pin Number G9902930185
Lock PRG110-3
Crown Type Dome
Crown (cc) 6.5
Intake Valve Depth/diameter 2.606/.320
Exhaust Valve Depth/diameter 1.936/.325
Top Land .300
Oe Deck Height 10.725
Oversized No
Oversize STD
Oversizes STD, .020, .030
