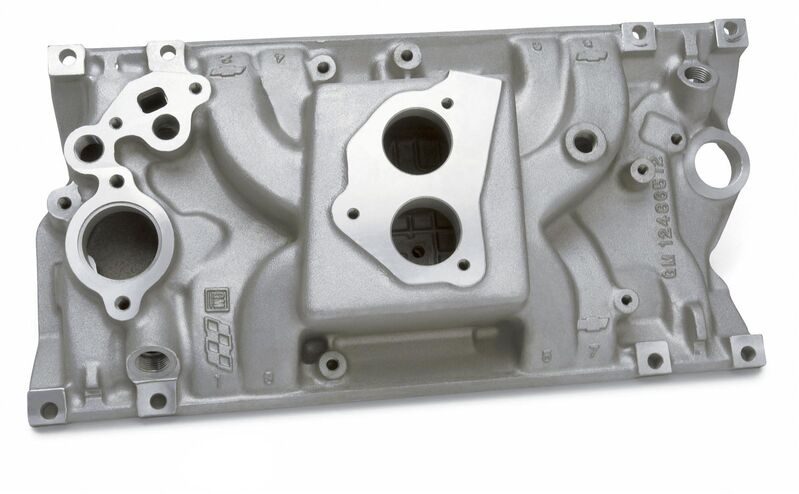

GM Performance Intake Manifold, Vortec EFI, Aluminum, Natural, Throttle Body, Chevy, GMC, 5.7L, Each (PART #GMP-12496821)

These Vortec manifolds with TBI from GM Performance are designed for maximum horsepower with throttle body fuel injection and EGR usage. These manifolds will fit all Vortec-designed cylinder heads.

SPECIFICATIONS

Brand GM Performance
Manufacturer's Part Number 12496821
Part Type Intake Manifolds, Fuel Injected
Product Line GM Performance Vortec Intake Manifolds with TBI
Cylinder Head Configuration Vortec
Fuel Injection Style Throttle body
Basic Operating RPM Range Idle-5,500
Intake Section Included Complete
Engine Block Deck Height Standard deck
Injectors Included No
Multi-Port Fuel Rails Included No
EGR Yes
Aftermarket Fuel Rail Required No
Throttle Body Included No
Supplemental Bosses Cast-In No
Supplemental Bosses Machined No
Runners Included No
Runners Removable No
Plenum Material Aluminum
Plenum Finish Natural
Base Material Aluminum
Base Color Natural
Remanufactured No
Quantity Sold individually.
Notes This manifold is primarily intended for use with Vortec heads on pre-1996 engine blocks. Blocks manufactured in 1995 or earlier have thermostat bypass passage from the block directly to the water pump. If manifold is used on 1996 and later engines (which do not have the bypass in the block), you must run a coolant bypass line from the manifold to the 5/8" hose nipple on the water pump (passenger's side). Suggested routing is from the 3/8 NPSF boss on manifold to the water pump.
