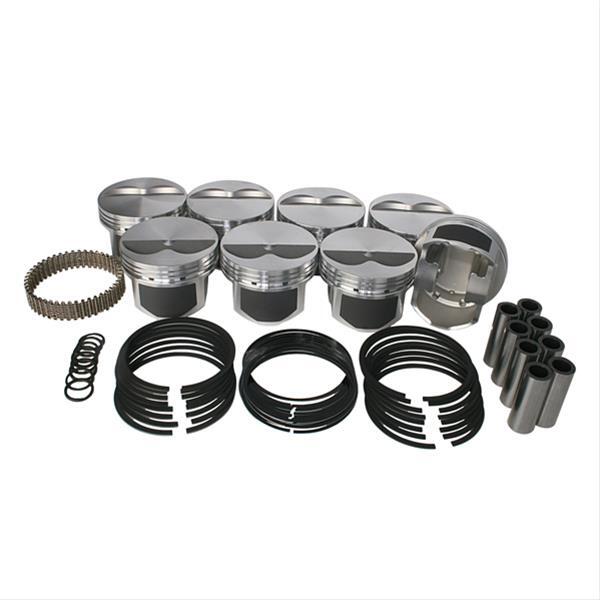

Wiseco Chevrolet Small Block Piston Set, 4.030 in. Bore, 1.260 in. Compression Height, 0.927 in. Pin Diameter, Pro Tru Street, Set of 8.

Our Pro Tru™ Street series pistons are forged from 4032 alloy aluminum in Mentor, Ohio and includes rings, pins, and clips for an all-inclusive rebuild. For any build budget, Wiseco has the piston to get you on the road or down the track.

  • ArmorGlide® Skirt Coating: Seizure resistant, Friction Reduction, and Quieter Operation
  • 4032 Forged Aluminum
  • AS-Forged Dome with Crown Features & Oil Drain Backs
  • Chromium Alloy Steel Piston Pin & Spirolox® Included
Product Series

Pro Tru Street

Bore Diameter

4.030 IN

Compression Height

1.260 IN

Piston Volume

-5.00 CC

Piston Material

4032

Skirt Coating

Yes

Forging Type

Slab Side

Piston Quantity

8

Ring Set Included

Yes

Top Compression Ring Thickness

1/16 IN

Second Compression Ring Thickness

1/16 IN

Oil Ring Thickness

3/16 IN

Wrist Pin Included

Yes

Wrist Pin Material

5115

Wrist Pin Outer Diameter

0.927 IN



Custom piston sets also available. Please fill out a custom order form & email VPW at sales@vpw.com.au for a quote.
