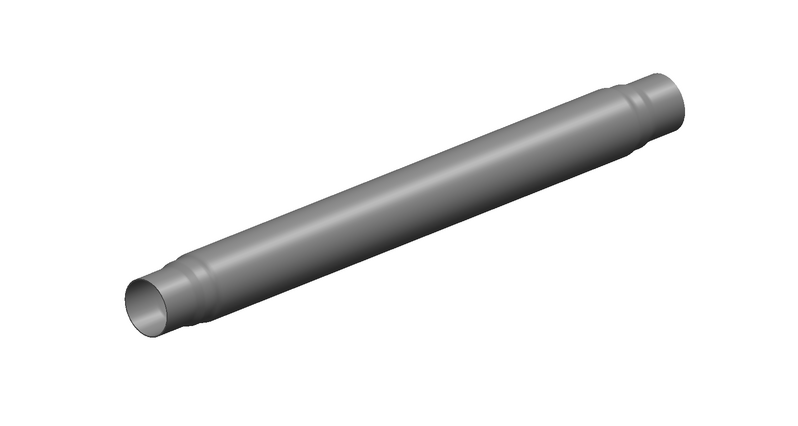

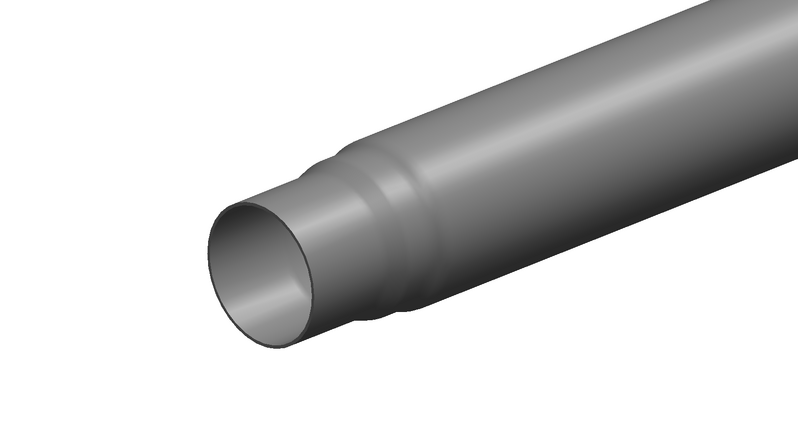

Ford enthusiasts have been waitng for this for years!. RTS has remade Ford GTHO driveshaft tubing to the exact factory double swage dimensions.The unique design of these driveshafts is that they were 3.5 inch majority of their length and then swaged down to 3.25 inch and then finally to 3.00 inch. RTS have made these tubes with the swage length and spacing/contour to be in the correct length and spacing for GTHO length shafts , but also added some length to enable customers to also build a GT length shaft by adding some extra length to the  3.00 inch tube section

  • Tube length is 1254mm to enable shaft build with correct Falcon GT centre to centre length of 52.5 inch / 52.75 inch
  • Tube length can be shortened on each end to make it 1158mm. This will allow you to build a exact replica of Ford GTHO driveshaft with Long Extension Housing Toploader
  • Use 2 x RTS-WY2281177 to complete your welded shaft assembly
