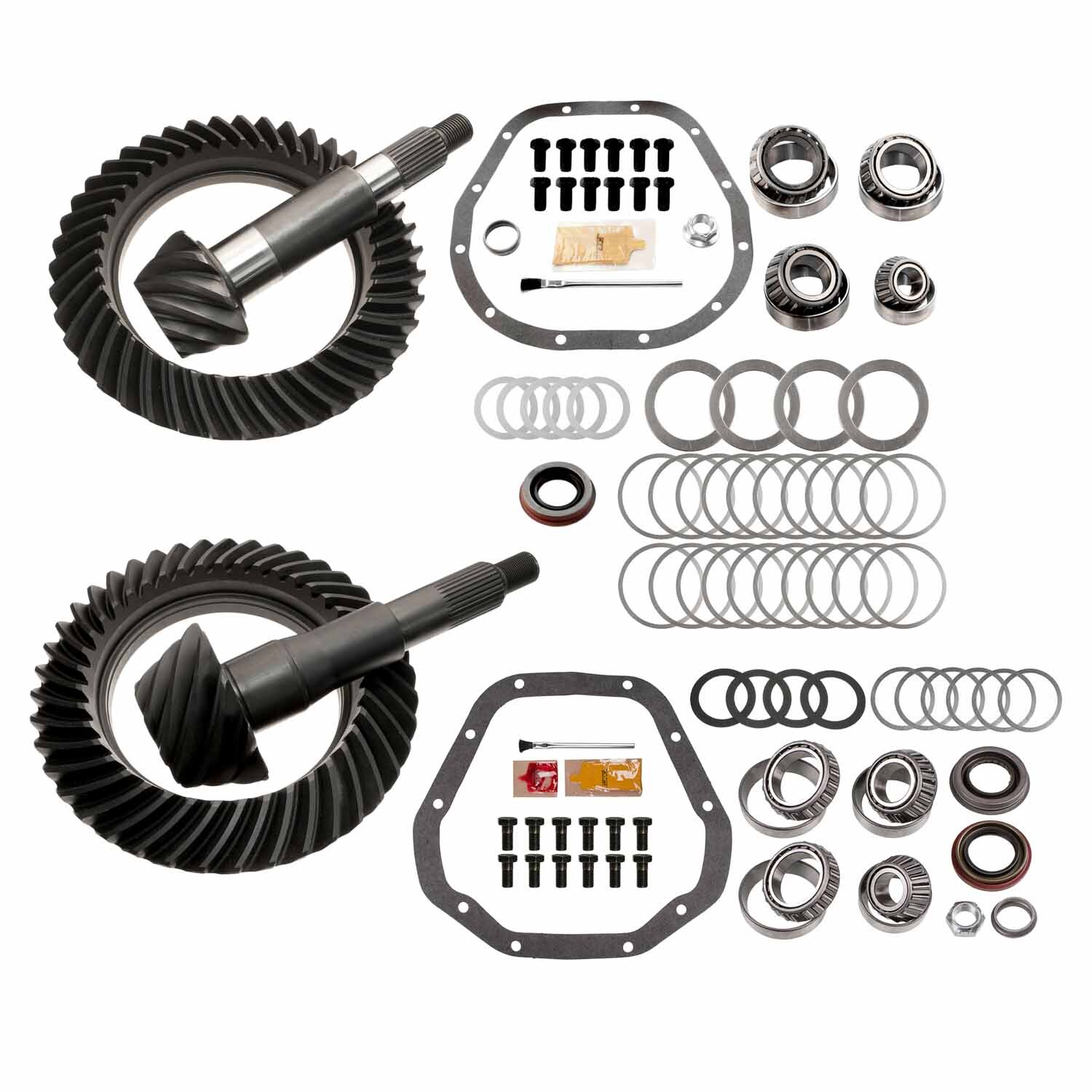

Motive Gear makes it easy to re-gear your 4x4! Motive Gear complete front and rear differential kit includes: front and rear ring and pinions, plus front and rear bearing kits. Everything you need when changing tire size on your off-road vehicle.

Specifications:
  • Cover Bolt Quantity: 10 Front, 12 Rear
  • Differential Carrier Break: 4.10 Ratio and Lower
  • Pinion Gear Tooth Quantity: 8 Front, 9 Rear
  • Pinion Shaft Diameter: 1.626 Front (Inch), 1.94 Rear (Inch)
  • Pinion Spline Count: 29 Front, 31 Rear
  • Ring & Pinion Gear Ratio: 4.88 Front, 4.89 Rear
  • Ring Gear Bolt Quantity: 12
  • Ring Gear Diameter: 9.75 Front (Inch), 10.25 Rear (Inch)
  • Ring Gear Material: 8620 Steel
  • Ring Gear Rotation: Reverse Front, Standard Rear
  • Ring Gear Tooth Quantity: 39 Front, 44 Rear
  • Taxonomy A: Differential LD
  • Taxonomy B: Ring and Pinion Gear Packages
  • Taxonomy C: Dana 60 Reverse, Ford 10.5
  • Taxonomy D: Front and Rear
Fitment: 1999 – 2007 Ford F-250 Super Duty | 1999 – 2007 Ford F-350 Super Duty
