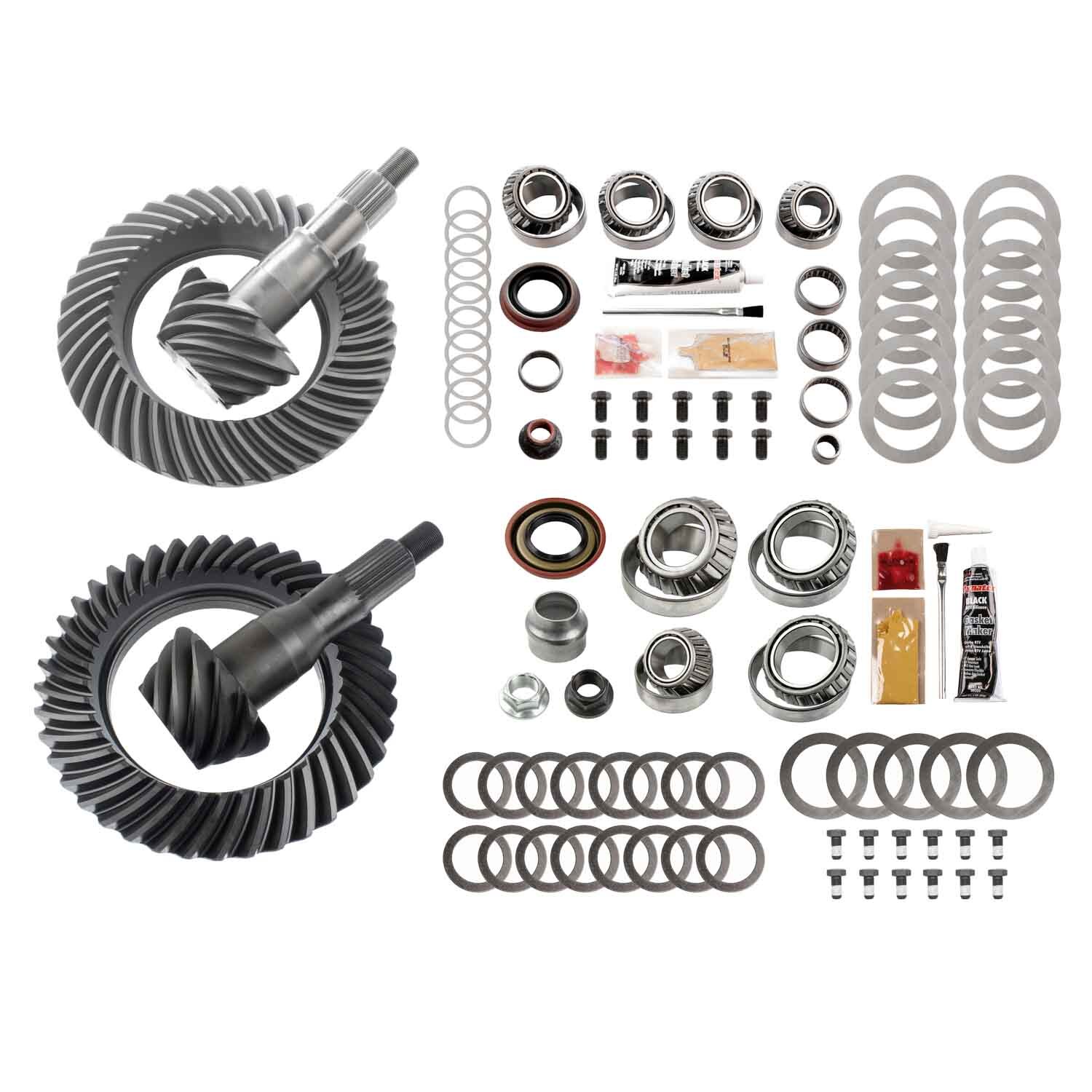

Motive Gear makes it easy to re-gear your 4x4! Motive Gear complete front and rear differential kit includes: front and rear ring and pinions, plus front and rear bearing kits. Everything you need when changing tire size on your off-road vehicle.

Specifications:
  • Cover Bolt Quantity: 10 Front, 12 Rear
  • Differential Case Design Type: Ford 8.8 IFS, Ford 9.75
  • Pinion Gear Tooth Quantity: 10
  • Pinion Shaft Diameter: 1.626 Front (Inch), 1.97 Rear (Inch)
  • Pinion Spline Count: 30 Front, 31 Rear
  • Ring & Pinion Gear Ratio: 4.10
  • Ring Gear Bolt Quantity: 10 Front, 12 Rear
  • Ring Gear Diameter: 8.8 Front (Inch), 9.75 Rear (Inch)
  • Ring Gear Material: 8620 Steel
  • Ring Gear Rotation: Reverse Front, Standard Rear
  • Ring Gear Tooth Quantity: 41
  • Taxonomy A: Differential LD
  • Taxonomy B: Ring and Pinion Gear Packages
  • Taxonomy C: Ford 8.8 IFS, Ford 9.75
  • Taxonomy D: Front and Rear
Fitment: 2011 – 2020 Ford Expedition | 2011 – 2020 Ford F-150 | 2011 – 2020 Lincoln Navigator
