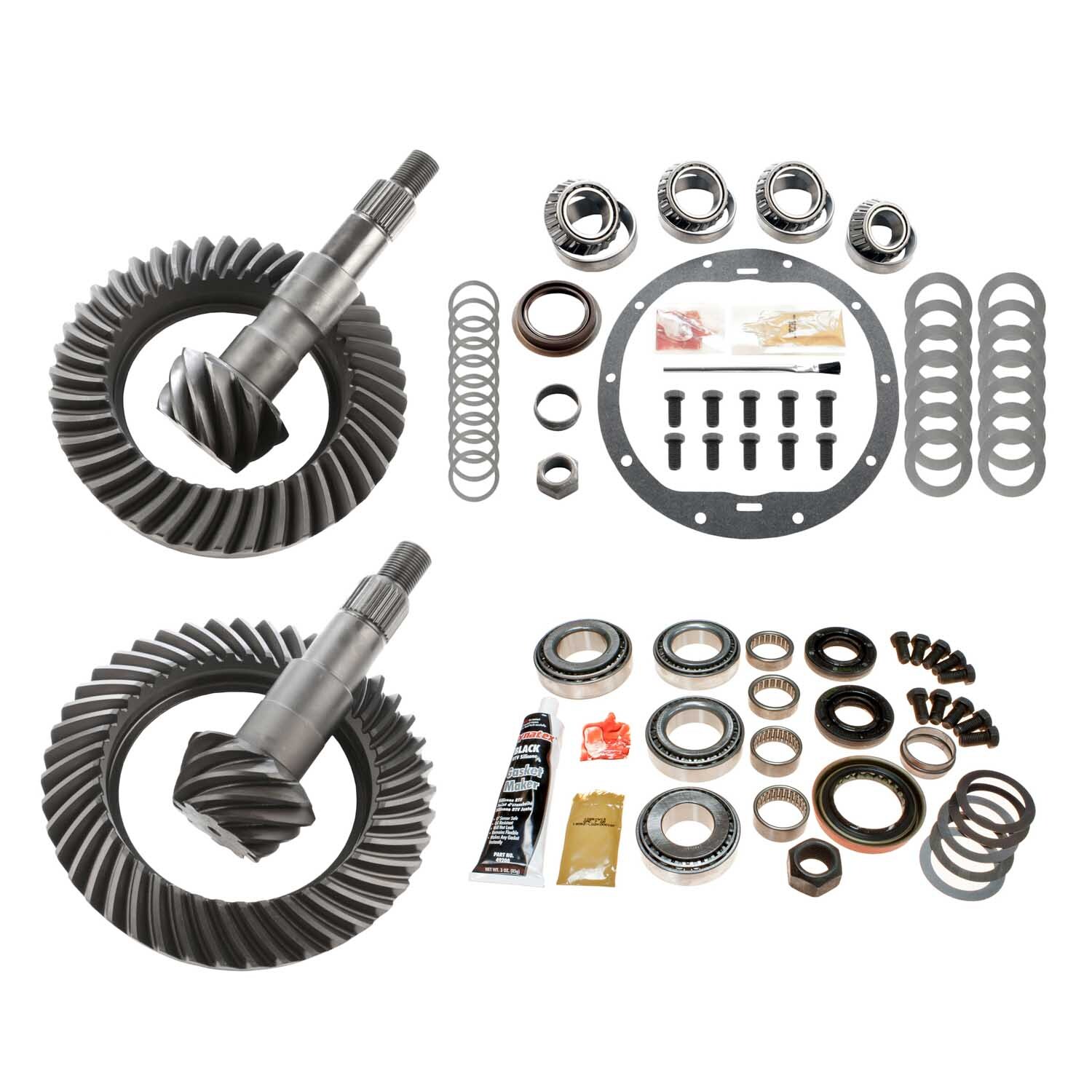

Motive Gear makes it easy to re-gear your 4x4! Motive Gear complete front and rear differential kit includes: front and rear ring and pinions, plus front and rear bearing kits. Everything you need when changing tire size on your off-road vehicle.

Specifications:
  • Cover Bolt Quantity: 10
  • Differential Carrier Break: 3.42 Ratio and Higher Front, 2.73 Ratio and Higher Rear
  • Differential Case Design Type: GM 8.25 IFS, GM 8.625
  • Pinion Gear Tooth Quantity: 10
  • Pinion Shaft Diameter: 1.626 (Inch)
  • Pinion Spline Count: 30
  • Ring & Pinion Gear Ratio: 4.30
  • Ring Gear Bolt Quantity: 10
  • Ring Gear Diameter: 8.25 Front (Inch), 8.5 Rear (Inch)
  • Ring Gear Material: 8620 Steel
  • Ring Gear Rotation: Reverse Front, Standard Rear
  • Ring Gear Tooth Quantity: 43
  • Taxonomy A: Differential LD
  • Taxonomy B: Ring and Pinion Gear Packages
  • Taxonomy C: GM 8.25 IFS, GM 8.625
  • Taxonomy D: Front and Rear
Fitment: 2002 – 2008 Cadillac Escalade | 2003 – 2008 Cadillac Escalade ESV | 2002 – 2008 Cadillac Escalade EXT | 2002 – 2006 Chevrolet Avalanche 1500 | 2007 – 2008 Chevrolet Avalanche | 1999 – 2008 Chevrolet Silverado 1500 | 2007 Chevrolet Silverado 1500 Classic | 2001 – 2002 Chevrolet Silverado 1500 HD | 2000 – 2008 Chevrolet Suburban 1500 | 2000 – 2008 Chevrolet Tahoe | 1999 – 2008 GMC Sierra 1500 | 2000 – 2008 GMC Yukon | 2000 – 2008 GMC Yukon XL 1500
