EWP®150 Combo Remote Electric Water Pump & Controller (24V) (Part #8971)

The EWP®150 Alloy 24V Electric Water Pump, combined with the LCD EWP®/Fan Digital Controller, delivers superior engine cooling control for high-performance, turbocharged, supercharged, and modified engines. Designed for remote mounting in the engine bay, this system is ideal for engines generating excessive heat and is widely used in intercooler applications.

This rugged, high-flow pump eliminates parasitic power losses of mechanical water pumps, freeing up to 10kW (13hp) and enhancing overall engine performance.

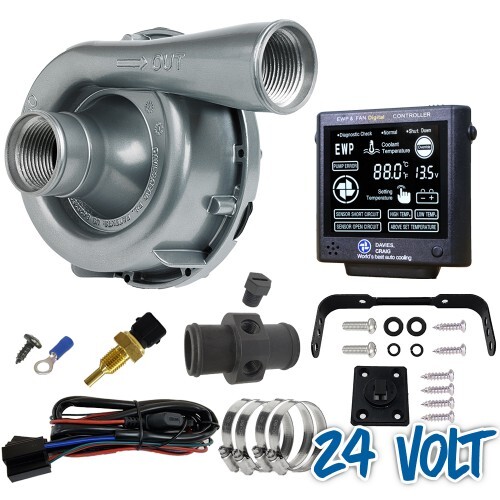

COMBO CONTENTS

Part Description Units
EWP®150 Alloy 24 Volt 1
EWP®/Fan Digital Controller & Mounting Plate + Bracket 1
Sensor Thermal - Coolant Temp - 1/4" NPT Thread 1
Adaptor - Nylon - Inline, 38mm (2 x 1/4" NPT) 1
1/4" NPT Nylon Bung 1
Wiring Harness 1
Hose Clamps 4
Screw - Self Tap 8x3/8 BZ 1
Blue 6mm Ring Terminal 1

TECHNICAL SPECIFICATIONS

Operating Voltage 20V DC to 27V DC
Maximum Current 5.5A @ 24V
Flow Rate (Max) 162 L/min (42.8 US gal/min) @ 24V DC
Operating Temp. -40°C to 120°C (-40°F to 248°F)
Pump Weight 1170 grams (2.6 lbs)
Pump Material Aluminum (Powder Coated)
Burst Pressure 500 kPa (72.5 PSI)
Seal Ceramic Face Seal
Fits Hose Sizes 35mm to 51mm (1?" to 2")
Push-On Fitting Size

38mm (Options: 44mm with 3mm Sleeve #8510, 51mm with 6mm Sleeve #8511)

Internal Fittings Inlet & Outlet: -16AN ORB

EWP & Controller Installation Demonstration
