HP & Torque: 436 HP / 443 FT. LBS

Cylinder Heads: BluePrint Engines Aluminum Cylinder Heads

Compression Ratio: 10:1

Camshaft: Hydraulic Roller Cam - .544 Intake / .555 Exhaust Lift and 230 Intake / 236 Exhaust Duration @ .050 - 110° LSA

Pistons: Hypereutectic

Crankshaft: Steel Crank - 3.750" Stroke and 5.700" Rods



DETAILED INFORMATION

Description:

  • HP and torque: 436 HP / 443 FT LBS
  • Compression Ratio: 10.0:1
  • Aluminum Heads
  • Hydraulic Roller Cam
  • Cast Steel Crank
  • Hypereutectic Pistons

Block:

  • NEW BluePrint Cast Iron Block
  • Manufactured and Machined in the USA!
  • 4-Bolt Main
  • 4.000" Bore
  • 1-Piece Rear Main Seal
  • Mech fuel pump provision: Yes
  • Passenger Side Dipstick
  • Drilled and tapped for clutch linkage

Rotating Assembly:

  • New BluePrint Cast steel crankshaft
  • 3.750" Stroke
  • OEM type 5.700" connecting rods w/ 150,000 psi bolts
  • Hypereutectic pistons
  • External Front/ External Rear

Cylinder Heads:

  • BluePrint Aluminum Cylinder Heads - H8002K
  • 64cc chamber
  • 2.02" intake/1.60" exhaust valves
  • 195cc intake/75cc exhaust runners

Cam Specs:

  • Cam Type: Roller
  • .544 Intake .555 Exhaust
  • 230 Intake / 236 Exhaust duration
  • @ .050, 110 ° lobe separation angle

Ignition Timing:

  • 34 Degrees Total at 3500 RPM

Also Includes:

  • Valve covers
  • Harmonic balancer
  • Spark plugs
  • Spark plug wires
  • Standard Rotation Long Style Water Pump
  • Fuel Pump
  • Oil pan
  • Timing cover
  • Aluminum Intake Manifold *Will not clear a stock Corvette hood. Please call for special build options
  • HEI distributor
  • 750 cfm Carburetor
  • Thermostat and thermostat housing

Notes:

  • Not for use in pollution-controlled vehicles.
  • This engine features a true 4-inch bore, which mathematically yields 377 CID with a 3.75-inch stroke.
  • The performance aluminum cylinder heads on this engine feature a .500 raised port vs OEM.


Engine Accessory Specifications

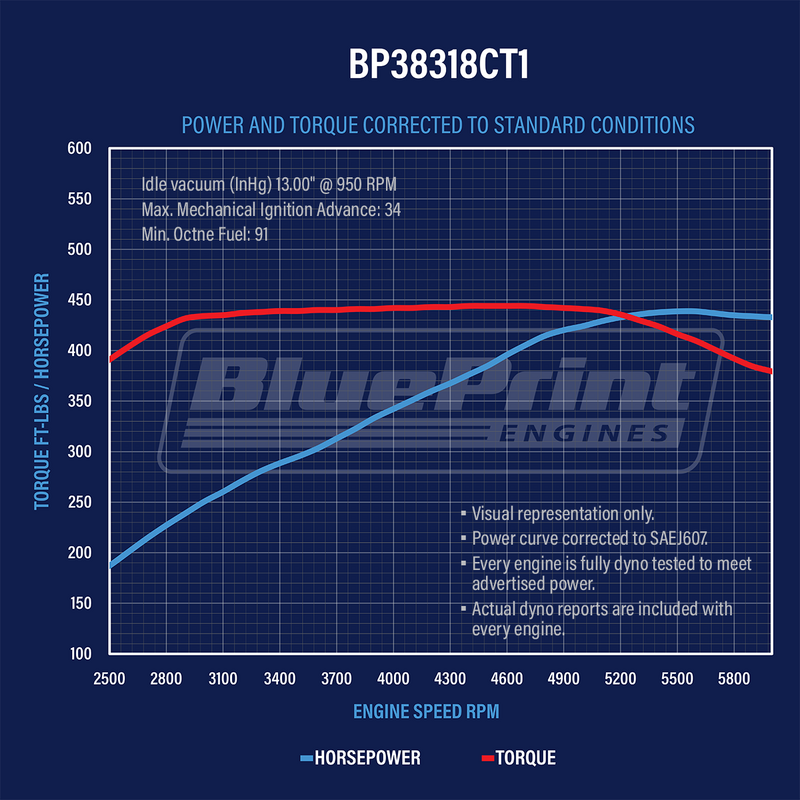

Your BluePrint engine was dyno tested with the parts and specifications listed below.  If you prefer to install a different part, your engine may not produce the horsepower recorded on your dyno sheet.

Part Number: BP38318CTC1D

Fuel Delivery Type: Carbureted, 750cfm, manual choke

Spark Plug: BPP7938 NGK 7938 BKR5E (.750 inch reach, 14mm thread, 5/8 hex, plug)

Spark Plug Gap: .035"

Harmonic Balancer: BPP400L - 400 ci weighed, 8" diameter

Flexplate/Flywheel: Late 350 Weighted

Stall Converter: 2000-2400 rpm

Intake Manifold: Dual plane, satin aluminum

Fuel Recommendation: 91 Octane

Timing (Initial/Total Advance): Initial timing - 10-16° and Total timing 32-34°

Firing Order: 1,8,4,3,6,5,7,2

Total Oil capacity with production oil pan, and Correct BPP51061 Filter : 5 Quarts
