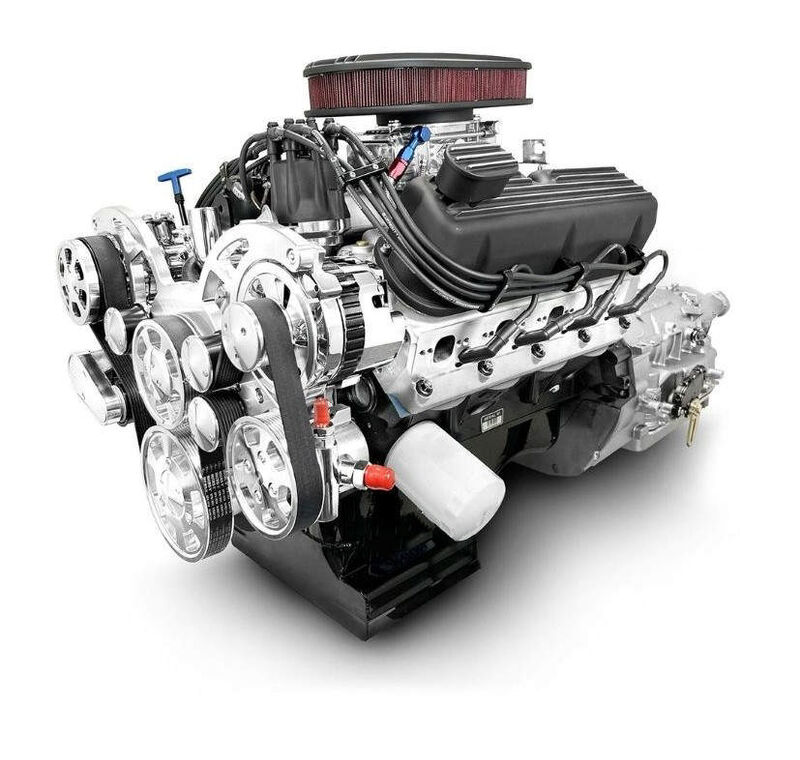

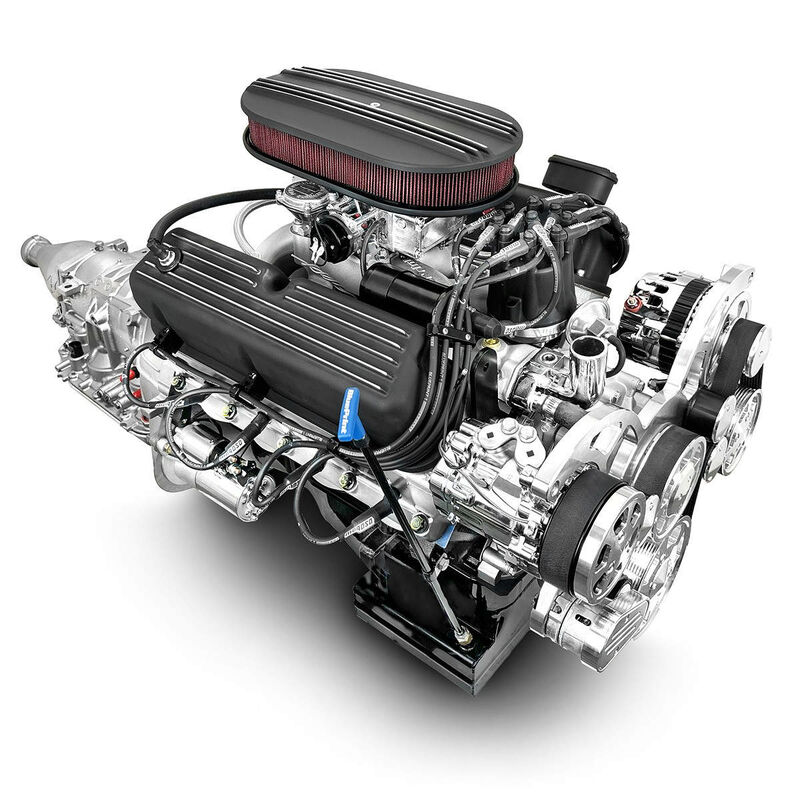

BluePrint Engines 302 c.i. Ford Compatible Builder Series - Standard Edition - Carbureted - 4R70W Automatic Transmission - Polished Pulley Kit. (PART #BPE-B302K4R7)

Equipped with a Holley 600 CFM carburetor, it provides crisp throttle response, easy tuning, and the classic feel of a traditional carbureted setup. The performance intake manifold, distributor, spark plugs and wires, valve covers, and harmonic balancer all work together to ensure smooth, consistent power throughout the RPM range. The polished front accessory drive gives the engine a clean, professional appearance, while the driver-side standard rotation water pump, Type II power steering pump with remote reservoir, 140-amp 1-wire alternator, and 7B10 peanut-style A/C compressor provide a complete front-end system.

This 302 c.i. package delivers the perfect blend of classic Ford V8 compatible performance and modern reliability — fully assembled, ready to drop in, and built to turn heads on the road or at the show.

Blocks:

• BluePrint Engines High-Strength Cast Iron Block
• Increased Deck Thickness & Strength Webbing
• Improved Water Jacket Design
• 1-Piece Rear Main Seal
• Priority Main Oiling
• 4.000" Bore
• 4-Bolt Main

Cylinder Heads:

• BluePrint Aluminum Cylinder Heads - HP9009
• 60cc Chamber
• 2.02" Intake / 1.60" Exhaust Valves
• 190cc Intake / 60cc Exhaust Runners

Rotating Assembly:

• Ford, Machined and Balanced by BluePrint Engines
• I-Beam 5.090” Connecting Rods
• 50oz External Balance Front and Rear

Included items:

• Holley 600 CFM Street Warrior Carburetor - BPP080457SA
• Thermostat and Thermostat Housing
• MSD Pro Billet Distributor - BPP3023BK
• Valve Covers - BPP9237BLK
• Harmonic Balancer - BPP50
• Ignition Coil - BPP82021BK
• Fuel Pump - BPP6588
• Painted Oil Pan
• Air Cleaner
• Dipstick

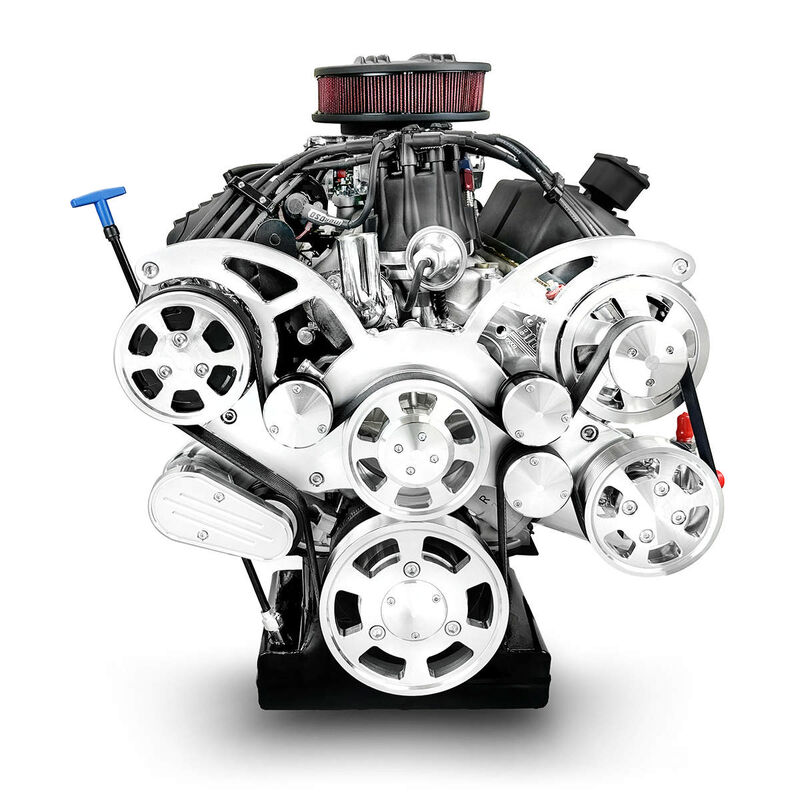

• Polished Front Accessory Drive - BPP302FDACPS4
  • Driver Side Standard Rotation Water Pump
  • Remote Power Steering Pump Reservoir
  • 140amp 1-wire Alternator
  • 7B10 Peanut Air Conditioning Compressor

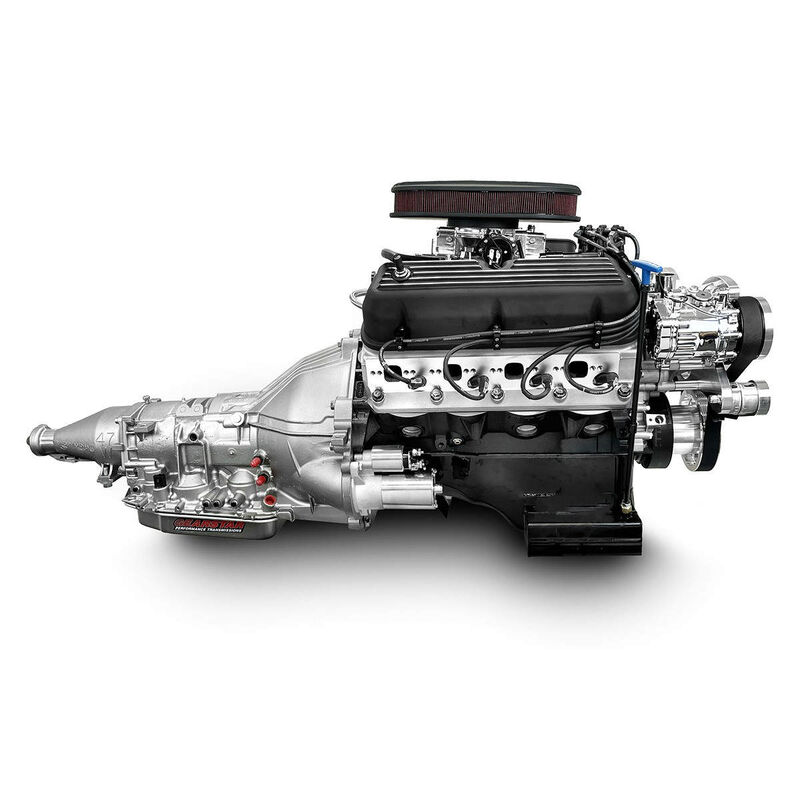

Assembled with Complete 4R70W Automatic Transmission Package:

• Includes Electronic Transmission Controller
• Transmission Built to 650 Horsepower
• 2200-2600 Stall Torque Converter
• Flex Plate
• Starter
• 4 Speed, Overdrive Transmission w/ Lockup
• GEAR RATIOS
  • First: 2.84 :1
  • Second: 1.55 :1
  • Third: 1.00 :1
  • Overdrive: 0.70 :1
  • Reverse: 2.32 :1

Notes:

• Note that 4R70W transmission may require modifications/replacement of driveshaft, transmission mount, exhaust routing, etc.
• Not for use in pollution-controlled vehicles.
• The front accessory drive on this engine fits many vehicles, however it is the customer responsibility to accurately measure and confirm fitment. Note this is a low-profile design, but things such as power steering hoses, alternator wiring, and additional fittings/fabrication may be required on some vehicles.
• Does not include TPS, as varies with carb or EFI type.
• PACKAGE SHIPS ASSEMBLED AS PICTURED.
• IF THIS IS BEING ORDERED FOR A FACTORY FIVE VEHICLE,
• A bronze distributor gear is NOT recommended on this engine
