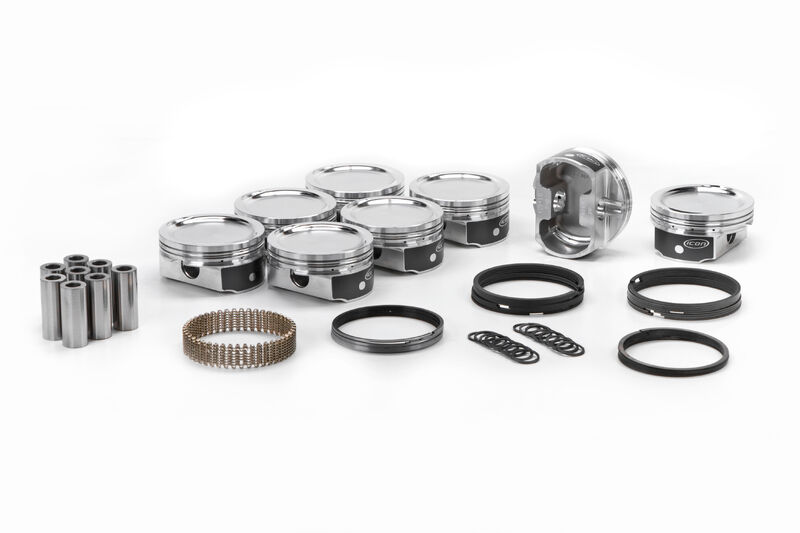

ICON Piston - Chrysler/Dodge 372ci/6.1L (V8) Kit with Rings (PART #UNI-IC541CKTS.020)

ICON forgings are created at UEM's in-house facility, utilizing the latest innovations in piston forging technology. Each ICON piston is purpose built from the ground up for extreme high-performance street or racing applications. From the FHR series to the LCAT, ICON offers the most diverse and fully-featured Off the Shelf forged piston on the market today. No matter what your high-performance application calls for, there is an ICON piston for you.

Click here to view the Installation Guide

SPECIFICATIONS

Engine Family Hemi - Gen III
Year Range -
Eng. Disp. In. 372
Piston Material Forged 2618 Alloy
Bore Diameter IN 4.055
Bore Diameter MM 103.0
Stroke (in) 3.9
Stroke (mm) 101.6
Rod (in) 6.125
Rod (mm) 155.6
Compression Height IN 1.165
Compression Height MM 29.6
Ring Pack 1.5mm, 1.5mm, 3.0mm
Pin Diameter (in) .927
Pin Diameter (mm) 23.5
Pin Type Press or Floating
Pin Configuration Offset
Pin Number .927X2.250X.200
Lock PRJ100-3
Crown Type DISH
Crown (cc) +23cc
Compression Ratio 65-9.6, 74-8.9, 85-8.1
Intake Valve Depth/diameter .101/2.200
Exhaust Valve Depth/diameter .101/2.200
Top Land .240
Oe Deck Height 9.25
Oversized Yes
Oversize .020
Oversizes STD .010 .020 .030 .040
