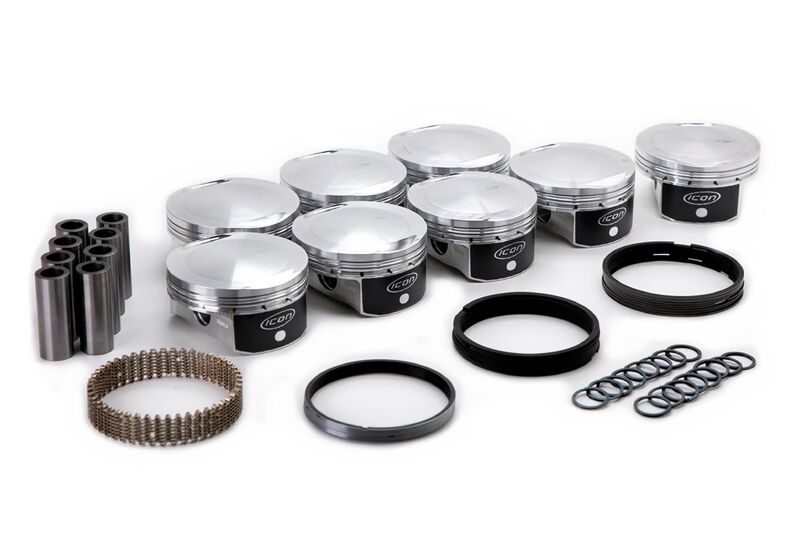

ICON Forged Coated Piston - Chrysler 6.4L Gen3 Hemi 11.1 Kit with Rings (PART #UNI-IC591CKTS.STD)

ICON forgings are created at UEM's in-house facility, utilizing the latest innovations in piston forging technology. Each ICON piston is purpose built from the ground up for extreme high-performance street or racing applications. From the FHR series to the LCAT, ICON offers the most diverse and fully-featured Off the Shelf forged piston on the market today. No matter what your high-performance application calls for, there is an ICON piston for you.

Click here to view the Installation Guide

SPECIFICATIONS

Engine Family Hemi - Gen III
Year Range 2011-2021
Eng. Disp. In. 392
Piston Material Forged 2618 Alloy
Bore Diameter IN 4.09
Bore Diameter MM 103.9
Stroke (in) 3.724
Stroke (mm) 94.6
Rod (in) 6.2
Rod (mm) 157.48
Compression Height IN 1.21
Compression Height MM 30.7
Ring Pack 1.2mm, 1.2mm, 3.0mm
Pin Diameter (in) 0.927
Pin Diameter (mm) 23.5
Pin Type Floating
Pin Configuration Offset
Pin Number .927x2.250x.200
Crown Type DOME
Crown (cc) -2.26cc
Intake Valve Depth/diameter .125/2.334
Exhaust Valve Depth/diameter .125/2.334
Top Land 0.25
Oe Deck Height 9.285
Oversized No
Oversize STD
Oversizes STD .005 .010
