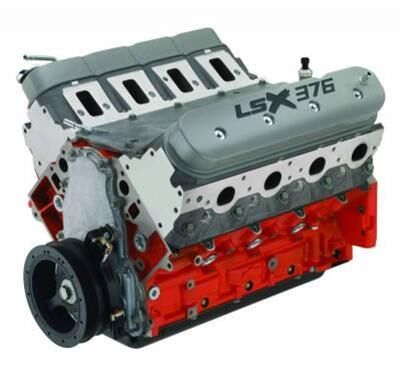

GM Performance Crate Engine, LSX376-B8, Forged Internals, Internally Balanced, 6-Bolt Mains, 58x
Part Number:GMP-19432776
GM Performance Crate Engine, LSX376-B8, Forged Internals, Internally Balanced, 6-Bolt Mains, 58x Reluctor, 6.2L, GenIV, LSX, Chevy, Each (PART #GMP-19432776)
The affordable LSX crate engine has arrived: the GM Performance Parts LSX 376-B8 476 hp crate engine! CPP takes the economical LSX Bowtie block and combines it with the LS3's high-flow L92 style heads to create the affordable, high-revving LSX 376 crate engine. It represents the essence of LS performance: exceptional airflow capability in straightforward packaging that delivers huge performance without the power adder. The engine is delivered without an intake or oil pan and without any front accessories. So whether you top the engine with a carburetor or production-style fuel injection system, it's suitable for your street rod, '57 Chevy or '71 Camaroabe it on the street or on the strip. (CPP horsepower and torque ratings are based on using the production style fuel injection system.)
NOTE: Due to the number of application variations, the LSX 376 crate engine is supplied with a dust shield instead of an oil pan; any LS-style oil pan and pickup that will fit your chassis can be used. Also, the LSX 376 valve covers do not include mounting provisions for mounting the ignition coil brackets. Aftermarket or custom relocation brackets must be used.
SPECIFICATIONS:
- Engine Includes:
- Fully GM assembled long block
- Harmonic Balancer
- Front timing cover
Power: 476 hp at 5900 rpm, 475 lbs.-ft. of torque at 4700 rpm
Displacement: 376 c.i.d., 6.2L
Bore x Stroke: 4.060 in. x 3.620 in.
Compression Ratio: 9.0:1
Recommended Fuel: 92 Octane
Block: LSX Cast Iron with 6-bolt cross bolted main caps
Crankshaft: Nodular Iron, standard 6-bolt flange
Connecting Rods: Powdered Metal Steel
Pistons: Forged Aluminum
Camshaft: Steel Hydraulic Roller Tappet
Cam Lift: .551 in. intake / .522 in. exhaust
Cam Duration at .050 in.: 204 deg. Intake / 211 deg. Exhaust
Lobe Separation: N/A
Cylinder Heads: Aluminum LS3 Rectangular style ports
Combustion Chamber: 68cc
Valves: 2.160 in. Intake/ 1.590 in. Exhaust
Rocker Arms: Cast Roller Trunnion, 1.7:1 Ratio
Balance: Internal
Reluctor: 58X
Maximum GM Recommended RPM: 6600
Warranty: General Motors limited 2-year / 50,000 mile parts and labor warranty
SPECIFICATIONS |
|
| Brand | GM Performance |
| Manufacturer's Part Number | 19432776 |
| Part Type | Crate Engines |
| Product Line | GM Performance CPP LSX 376-B8 476 HP Crate Engines |
| Crate Engine Family | Chevy LS |
| Actual Engine Displacement | 6.2L/376 |
| Crate Engine Cylinder Head Material | Aluminum |
| Engine Block Material | Cast iron |
| Advertised Compression Ratio | 9.0:1 |
| Assembled | Yes |
| Engine Balance | Internal |
| Cam Style | Hydraulic roller, OE roller |
| Rear Main Seal Style | 1-piece |
| Intake Manifold Included | No |
| Cylinder Heads Included | Yes |
| Carburetor Included | No |
| Throttle Body Included | No |
| Distributor Included | No |
| Oil Pan Included | Yes |
| Valve Covers Included | Yes |
| Timing Cover Included | Yes |
| Water Pump Included | No |
| Harmonic Balancer Included | Yes |
| Flexplate Included | No |
| Flywheel Included | No |
| Air Cleaner Included | No |
| Spark Plugs Included | No |
| Spark Plug Wires Included | No |
| Computer Included | No |
| Wiring Harness Included | No |
| Supercharger Included | No |
| Remanufactured | No |
| Quantity | Sold individually. |
