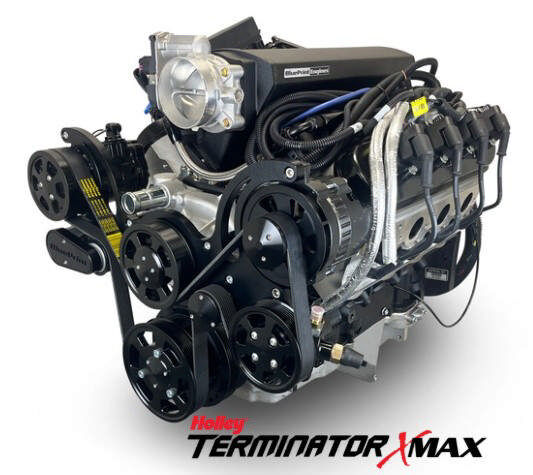

BluePrint Engines 376 c.i. GM LS Compatible - Deluxe Dressed - Fuel Injected - Black Pulley Kit (PART #BPE-S37651CTFKB)

Fuel and air management are handled by the Holley Terminator X Max system, paired with a fabricated aluminum intake manifold, high-flow injectors, and a matching fuel rail kit. The LS Swap oil pan ensures proper fitment across platforms, while the drive-by-wire throttle body adds cutting-edge responsiveness. Tying it all together is a black pulley kit featuring an LS2-style water pump, a high-output 140-amp alternator, a compact peanut-style A/C compressor, and a Type II power steering pump with remote reservoir—delivering both form and function in a sleek, performance-ready package.

Blocks:

• BluePrint Engines High Strength Cast Iron (LSX Style) Block
• Increased Deck Thickness and Strength Webbing
• Utilizes OEM LS3 Front and Rear Covers
• Improved Water Jacket Design
• Extended Cylinder Skirt
• 1-Piece Rear Main Seal
• Priority Main Oiling
• 4.0622" Bore
• 6-Bolt Main

Cylinder Heads:

• BluePrint LS3 Aluminum Cylinder Heads - PS8015
• 69cc Chamber
• 2.165" Intake / 1.590" Exhaust Valves
• 259cc Intake / 102cc Exhaust Runners

Included items:

• LS3 Fabricated Aluminum Intake Manifold - BPP822112
• Drive by Wire Throttle Body - BPP12191019
• LS Swap Oil Pan - BPP81073
• Injectors and Fuel Rail Kit
• Spark Plugs and Wires
• Harmonic Balancer
• Throttle Pedal
• Timing Cover
• Valve Covers

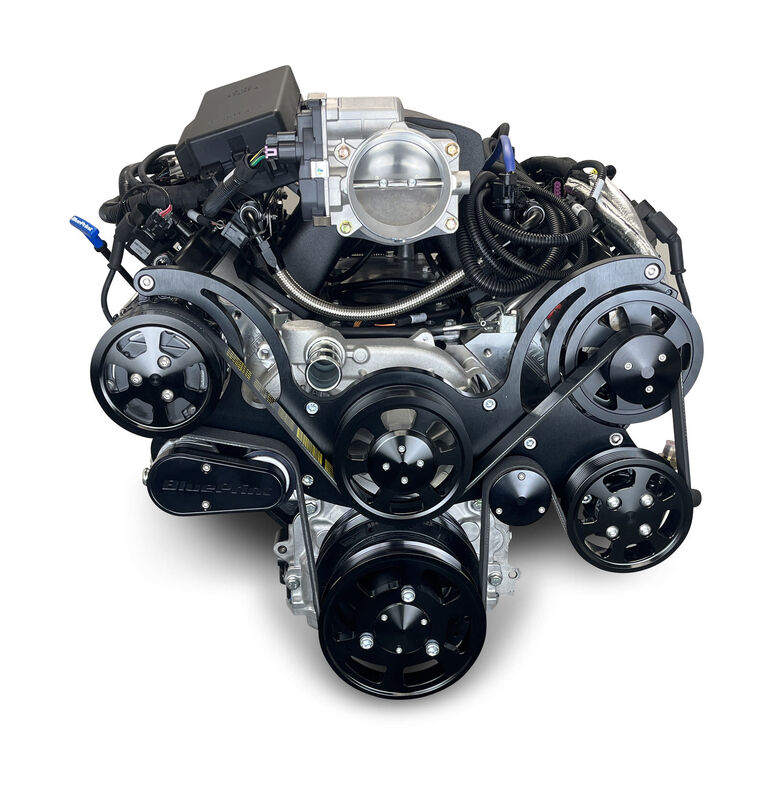

• Coil Packs
• LS2 Style Water Pump
• 1- Wire 140amp Alternator
• Peanut Style Air Conditioning Compressor
• Real Time Fuel Map Learning Simplifies Tuning by Dynamically Adjusting the Base Fuel Rate
• On Board Bosch LSU 4.9 Wideband Control, Enabling Accurate AFR Readings and Closed Loop Tuning
• Eight High Impedance Injector Drivers, Ideal for Stock LS Injectors and Holley EFI Injectors
• Integrated 1-Bar MAP Sensor for Naturally Aspirated or Nitrous Setups, with Harness Support for External Higher Bar Sensors if needed
• 4 Configurable Inputs (12V, Ground, 5V, Frequency) and 2 Outputs (Ground, PWM) - Ideal for Electric Fans, Boost Control Solenoids, Nitrous Control and more
• Free PC Tuning Software via USB/CAN Interface for Full Laptop Control and Advance Setup
• Integrated 3.5" Touchscreen Handheld with Setup Wizard, Internal Data Logging, and Real Time Gauge Displays
• Terminator X Max ECU will Include a Base Timing Map Pre-Configured for this engine

Notes:

• Please note, It is not necessary to run the Holley setup wizard, as this will erase the existing calibration loaded by BluePrint Engines. The ecu is fully unlocked and tunable for further adjustments once installed in customer vehicle.
• Retro fit oil pan will fit most 1955-1995 GM front engine, RWD, V8 cars.
• Not for use in pollution-controlled vehicles or in dry sump applications.
