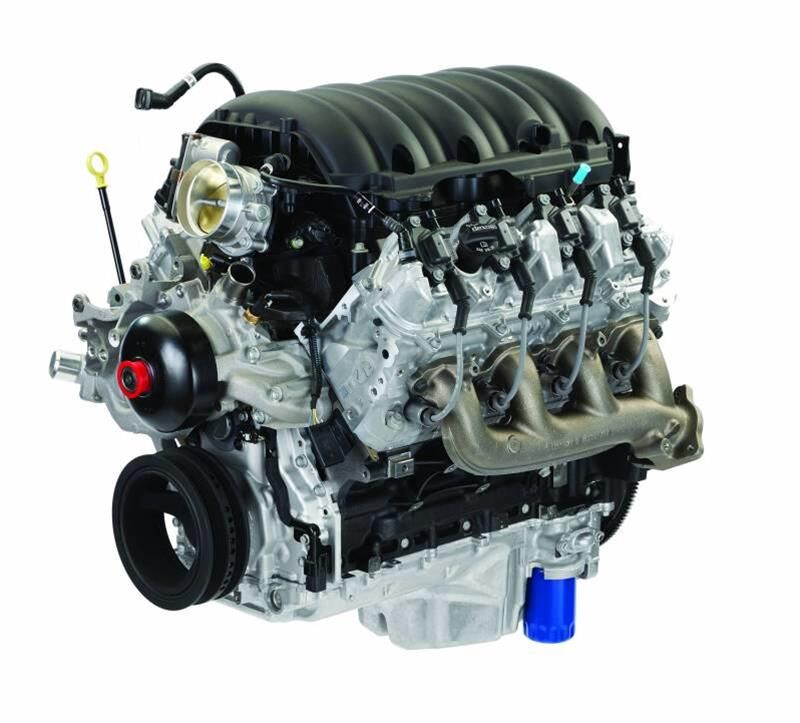

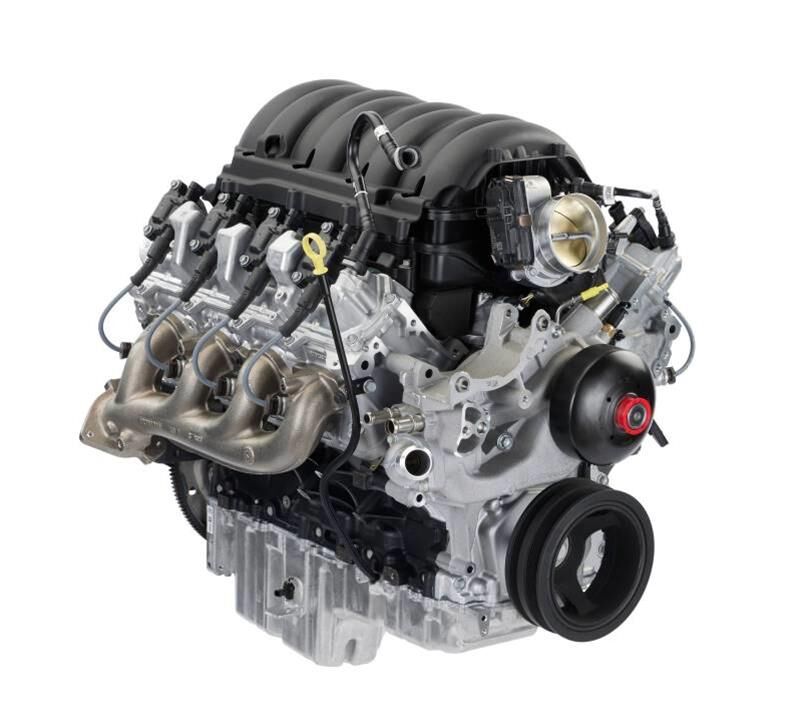

GM Performance Crate Engine, L8P Rotating Assembly, 6.6L, 400cid, 523 HP, 10.8:1 Compression, Cast Iron Block, Aluminum Heads, Chevy, GMC, Each (PART #GMP-19435523)
By combining the large-displacement and heavy-duty elements of the L8T 6.6L engine and a unique camshaft based off the Corvette Stingray's high-revving LT2 V-8, GM Performance engineers have created the all-new L8P 400 c.i.d. Performance crate engine. Rated at 523 hp and 543 lbs.-ft. of torque, it offers your project a unique and naturally aspirated combination of big-displacement torque and high-rpm horsepower.
The L8T 6.6L foundation is the same high-strength, big-displacement engine found in the Silverado HD from 2020 to present day, featuring a forged steel crankshaft and high-strength components. Additional features such as oil-spray cooling for the pistons and a cast iron, long-skirt cylinder block with 6-bolt, cross-bolted main caps contribute to the engine's strength and durability.
The new L8P builds on that with a unique, upgraded valvetrain featuring performance-oriented valves and springs, along with a unique camshaft that is based off the Corvette Stingray's LT2 engine. It has a non-active fuel management profile and more duration than the L8t's camshaft. It's the best of both engines: the largest displacement in the LT family and the power-building attributes of the Corvette camshaft. Put it to work in your project.
Fast Facts:
- Displacement: 400 cu. in. (6.6L)
- Bore x Stroke: 4.06 in. x 3.86 in.
- Crankshaft: Forged steel
- Pistons: Hypereutectic aluminum
- Compression ratio: 10.8:1
- Cylinder heads: Rectangular port D/I with 59.02cc chambers
- Camshaft type: Billet steel hydraulic roller
- Camshaft duration: 218 degree intake/231 degree exhaust at .050 in.
- Fuel delivery: Direct injection with high-pressure pump
- Horsepower: 523 at 5,800 rpm
- Torque (lbs.-ft.): 543 at 4,800 rpm
- Engine type: Gen V small block V-8 direct injection spark ignition
- Block: Cast iron with 6-bolt no Dula main bearing caps
- Connecting rods: Forged powder-metal
- Valve lift (in.): 0.549 intake / 0.549 exhaust
- Rocker arms: Investment cast roller trunnion
- Rocker arm ratio: 1.8:1
- Intake manifold: Composite
- Throttle body: 87mm diameter (single-bore)
- Fuel delivery: High-pressure direct injection (2,175 psi / 150 bar)
- Recommended fuel: Premium pump
- Ignition system: Coil-on-plug
- Maximum recommended RPM: 6,000 rpm
- Reluctor wheel: 58X
- Balanced: Internal
- Note:
Use with the new engine control kit, P/N 19435524, which includes a programmed controller, wire harness, pedal, oxygen sensors and mounts, MAD, fuel line pressure sensor and fuel pump power module. Flexplate P/N 12685003 must be purchased for these engines to be compatible with the 10-speed supermatic transmission. 10-speed supermatic transmission uses six bolts to attach the torque converter.
SPECIFICATIONS |
|
Brand | GM Performance |
Manufacturer's Part Number | 19435523 |
Part Type | Crate Engines |
Product Line | GM Performance L8P 6.6L 400 C.I.D Engine Assemblies |
Crate Engine Family | Chevy LT Gen V |
Actual Engine Displacement | 6.6L/400 |
Crate Engine Cylinder Head Material | Aluminum |
Engine Block Material | Cast iron |
Advertised Compression Ratio | 10.8:1 |
Assembled | Yes |
Engine Balance | Internal |
Cam Style | Hydraulic roller, OE roller |
Rear Main Seal Style | 1-piece |
Intake Manifold Included | Yes |
Intake Manifold Style | Fuel Injection |
Cylinder Heads Included | Yes |
Carburetor Included | No |
Throttle Body Included | Yes |
Distributor Included | No |
Oil Pan Included | Yes |
Valve Covers Included | Yes |
Timing Cover Included | Yes |
Water Pump Included | Yes |
Harmonic Balancer Included | Yes |
Flexplate Included | Yes |
Flywheel Included | No |
Air Cleaner Included | No |
Spark Plugs Included | Yes |
Spark Plug Wires Included | Yes |
Computer Included | No |
Wiring Harness Included | No |
Supercharger Included | No |
Remanufactured | No |
Quantity | Sold individually. |
