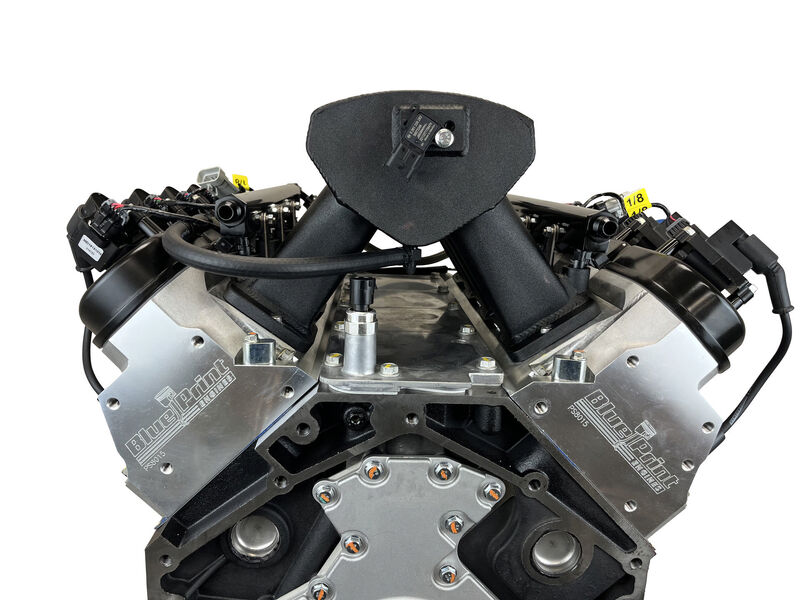

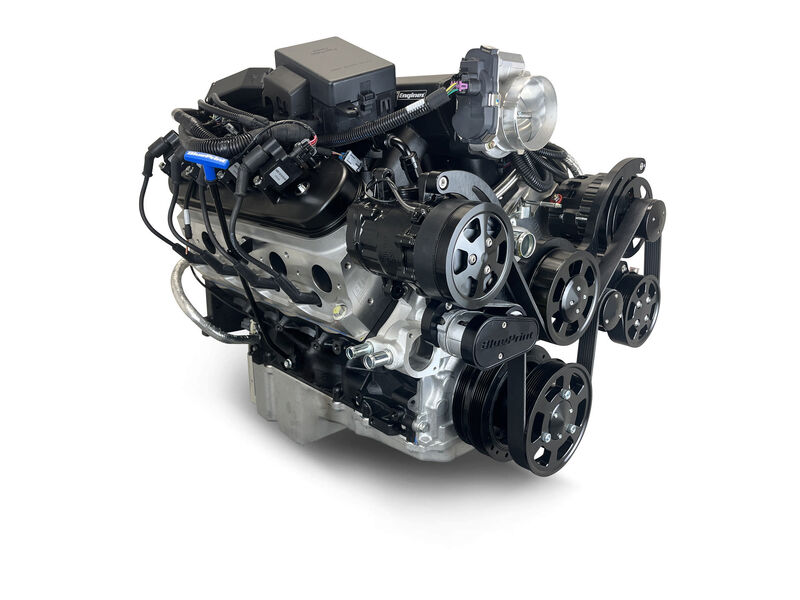

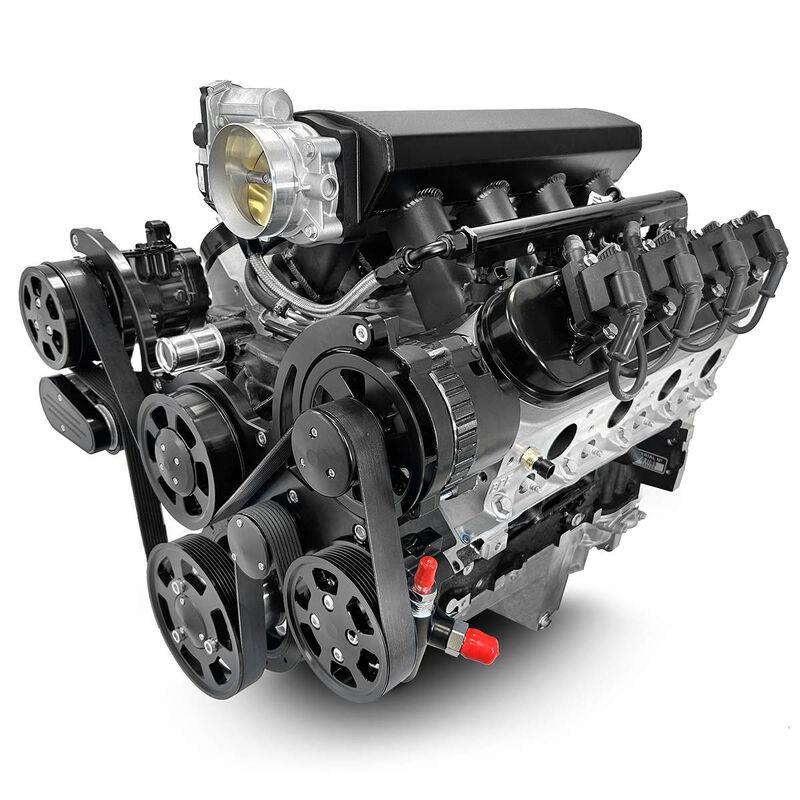

BluePrint Engines 427 c.i. GM LS Compatible - Deluxe Dressed - Fuel Injected - Black Pulley Kit (PART #BPE-S42751CTFKB)

Fuel and air are fed through a sleek LS3 fabricated intake manifold and fuel rail system, with a drive-by-wire throttle body ensuring precise control. The Holley Terminator X Max system brings advanced engine management to the table, making tuning and diagnostics seamless. A black pulley kit adds both function and flair, featuring an LS2-style water pump, a high-output 140-amp alternator, a compact peanut-style A/C compressor, and a Type II power steering pump with remote reservoir. This setup isn’t just built to perform—it’s built to impress, whether you're carving corners or cruising the boulevard.

Blocks:

• BluePrint Engines High Strength Cast Iron (LSX Style) Block
• Increased Deck Thickness and Strength Webbing
• Utilizes OEM LS3 Front and Rear Covers
• Improved Water Jacket Design
• Extended Cylinder Skirt
• 1-Piece Rear Main Seal
• Priority Main Oiling
• 4.0685" Bore
• 6-Bolt Main

Cylinder Heads:

• BluePrint Aluminum Cylinder Heads - PS8015
• 69cc Chamber
• 2.165" Intake / 1.590" Exhaust Valves
• 259cc Intake / 102cc Exhaust Runners

Rotating Assembly:

• Forged 6.125" Connecting Rods
• Internally Balanced Front and Rear

Included items:

• LS3 Fabricated Aluminum Intake Manifold - BPP822112
• Drive by Wire Throttle Body - BPP12191019
• LS Swap Oil Pan - BPP81074
• Injectors and Fuel Rail Kit
• Spark Plugs and Wires
• Harmonic Balancer
• Throttle Pedal
• Timing Cover
• Valve Covers
• Coil Packs
• LS2 Style Water Pump
• 1- Wire 140amp Alternator
• Peanut Style Air Conditioning Compressor

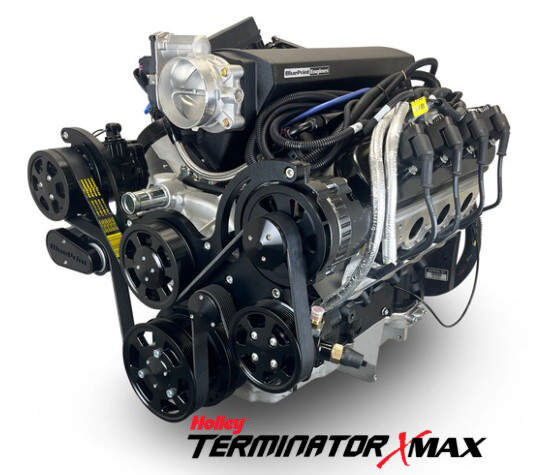

Holley Terminator X Max Specific Features and Benefits:

• Real Time Fuel Map Learning Simplifies Tuning by Dynamically Adjusting the Base Fuel Rate
• On Board Bosch LSU 4.9 Wideband Control, Enabling Accurate AFR Readings and Closed Loop Tuning
• Eight High Impedance Injector Drivers, Ideal for Stock LS Injectors and Holley EFI Injectors
• Integrated 1-Bar MAP Sensor for Naturally Aspirated or Nitrous Setups, with Harness Support for External Higher Bar Sensors if needed
• 4 Configurable Inputs (12V, Ground, 5V, Frequency) and 2 Outputs (Ground, PWM) - Ideal for Electric Fans, Boost Control Solenoids, Nitrous Control and more
• Free PC Tuning Software via USB/CAN Interface for Full Laptop Control and Advance Setup
• Integrated 3.5" Touchscreen Handheld with Setup Wizard, Internal Data Logging, and Real Time Gauge Displays
• Terminator X Max ECU will Include a Base Timing Map Pre-Configured for this engine

Notes:

• Please note, It is not necessary to run the Holley setup wizard, as this will erase the existing calibration loaded by BluePrint Engines. The ecu is fully unlocked and tunable for further adjustments once installed in customer vehicle.
• Retro fit oil pan will fit most 1955-1995 GM front engine, RWD, V8 cars.
• Not for use in pollution-controlled vehicles or in dry sump applications.
• The front accessory drive on this engine fits many vehicles, however it is the customer responsibility to accurately measure and confirm fitment. Note this is a low-profile design, but things such as power steering hoses, alternator wiring, and additional fittings/fabrication may be required on some vehicles.
