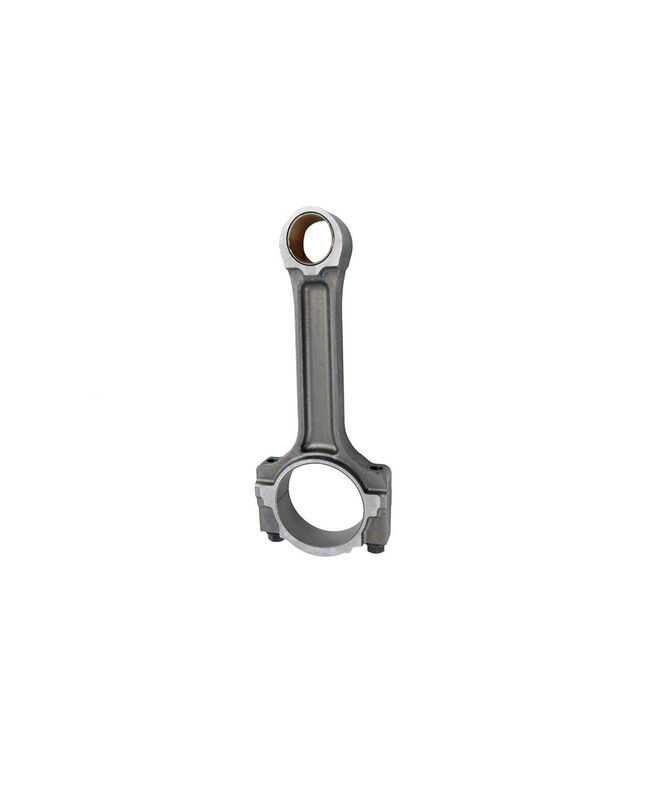

GM Performance Connecting Rod, I-beam, 6.098 in. Length, Forged 4340 Steel, Shot-peened, 4th Gen., Chevy, 6.0L LS2, 6.2L LS3, Each (PART #GMP-12649190)

Put a set of GM Performance connecting rods in your engine. They are guaranteed performers and have been proven time and time again in the popular LT1 and LT4 engines. Whether you're rebuilding your late model or putting together a budget street-pounder, a set of GM rods will get the job done.

SPECIFICATIONS

Brand Chevrolet Performance
Manufacturer's Part Number 12649190
Part Type Connecting Rods
Product Line Chevrolet Performance Connecting Rods
UPC 00195491149779
Connecting Rod Length Center to Center (in.) 6.098 in.
Connecting Rod Beam Style I-beam
Connecting Rod Material Forged 4340 steel
Wrist Pin Style Floating
Pin End Bore Diameter 0.944 in.
Rod Journal Diameter (in.) 2.100
Big End Bore Diameter (in.) 2.2250
Quantity Sold individually.
Cap Retention Style Through-bolt
Big End Width (in.) 0.945
Clearanced for Stroker No
Connecting Rod Bolt Brand GM Performance Parts
Connecting Rod Bolt Diameter 7/16 in.
Connecting Rod Bolt Material 4740 chromoly alloy
Fastener Tensile Strength (psi) 140,000 psi
Connecting Rod Bolt Head Style Hex head
Advertised Horsepower Rating 575 hp
Advertised RPM Rating 7,000 rpm
Pin End Width (in.) 0.945 in.
Weight Matched Set No
Remanufactured No
Magnafluxed Yes
Connecting Rod Color Shot-peened
Notes Sold individually.
Special Attention Sold individually.
