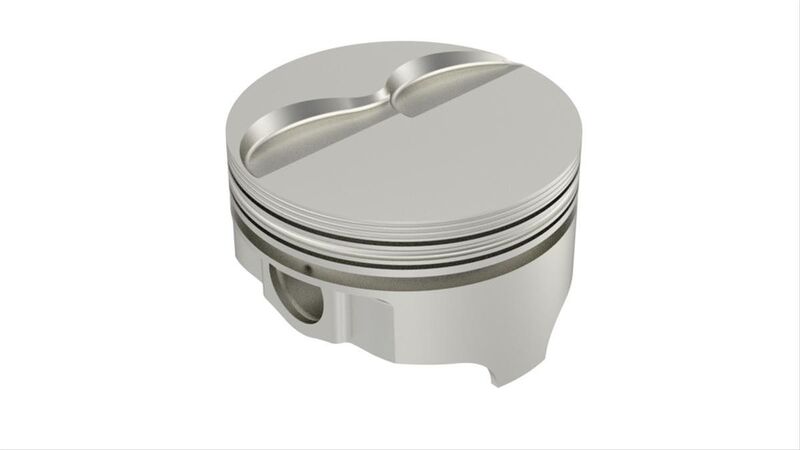

ICON Piston and Ring Kit, Forged, Dome, 4.040 in. Bore, General Motors, V6, Kit (PART #UNI-IC6732KTD.040)

You don't need a king's ransom to rule the track. ICON premium forged piston and ring kits deliver high performance racing pistons crafted from high-strength 2618 primary aluminum alloy and matched with performance rings, creating remarkable value-packed kits. The pistons feature fully machined heads and valve ports, advanced accumulator and mini groove technology, drilled pin holes, triple wound spiral lock rings, and their proprietary diamond-finished skirts. Heavy-duty ICON premium forged pistons can handle the pressure and abuse from the horsepower numbers that your engine produces. If you're ready to give up your kingdom to build more horsepower with a great set of pistons--think again! ICON premium forged pistons and ring kits will help you reign victorious without spending a lot of cash.

SPECIFICATIONS

Brand ICON
Manufacturer's Part Number IC6732KTD.040
Part Type Pistons
Product Line ICON Premium Forged Piston and Ring Kits
UPC 800745197382
Piston Rings Included Yes
Bore (in.) 4.040 in.
Bore (mm) 102.616mm
Stroke 3.480 in.
Rod Length 6.000 in.
Piston Style Dome, with two valve reliefs
Piston Material Forged aluminum
Compression Height (in.) 1.265 in.
Dome Height (in.) 0.163 in.
Piston Head Volume (cc) -6.26cc
Wrist Pin Style Press-fit or floating
Wrist Pin Retainers Included Yes
Wrist Pin Included Yes
Pin Diameter (in.) 0.927 in.
File Fit Yes
Gapless No
Top Ring Thickness 1/16 in.
Top Ring Material Ductile iron
Top Ring Facing Material Plasma-moly
Second Ring Thickness 1/16 in.
Second Ring Material Iron
Second Ring Facing Material Cast iron
Oil Ring Thickness 3/16 in.
Oil Ring Material Stainless steel
Oil Ring Tension Standard
Remanufactured No
Quantity Sold as a set of 6.
Notes Solid dome design. Spacer ring included.
