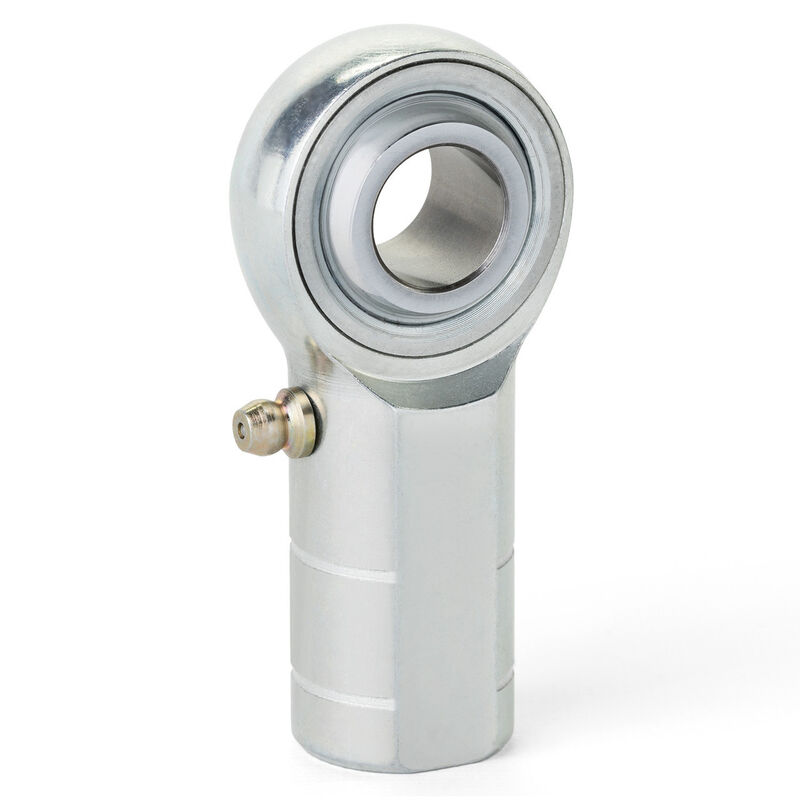

MH Series 3 Piece Alloy Rod End, 14mm Bore, M14X2.0 LH Female Thread (PART #QA1-MHFL14Z)

QA1's

MHF Series

alloy/chromoly metric female rod ends are precision constructed in a traditional three-piece design. MHF Series precision rod ends have a higher ball-to-race conformity, which creates tighter tolerances. This makes them ideal for precision applications where tight tolerances are critical. These rod ends are heat treated, are available in right- or left-hand threads. Includes a grease fitting which, when lubricated regularly, can extend the life of the rod end, reduce wear, and enhance performance. Stud configurations are also available.

BALL:

52100 Bearing Steel, Heat Treated, Precision Ground, Hard Chrome Plated

RACE:

Alloy/Chromoly Steel

BODY:

Alloy/Chromoly Steel, Heat Treated, Protective Coated for Corrosion Resistance

SPECIFICATIONS

Rod End Series MH Series
Style/Construction 3 Piece Alloy
Bore 14mm
Thread Direction LH
Thread Size and Pitch M14X2.0
Male or Female Thread Female
PTFE Lined? No
Configuration Greaseable

More From This Category

QA1 Rod End, HF Series, 3-Pieces, Chromoly Steel, HT Left Hand, 12mm-12mm, Zerk, Each

QA1 Rod End, HF Series, 3-Pieces, Chromoly Steel, HT Left Hand, 12mm-12mm, Zerk, Each

$45.20

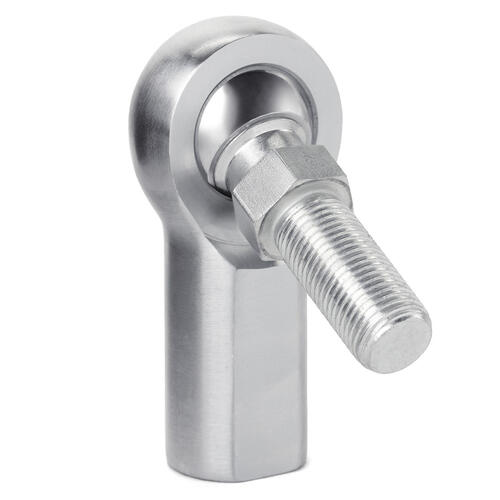

QA1 Rod End, XF Series, Endura, Chromoly Steel, HT Right Hand, 16mm-16mm, Each

QA1 Rod End, XF Series, Endura, Chromoly Steel, HT Right Hand, 16mm-16mm, Each

$50.20

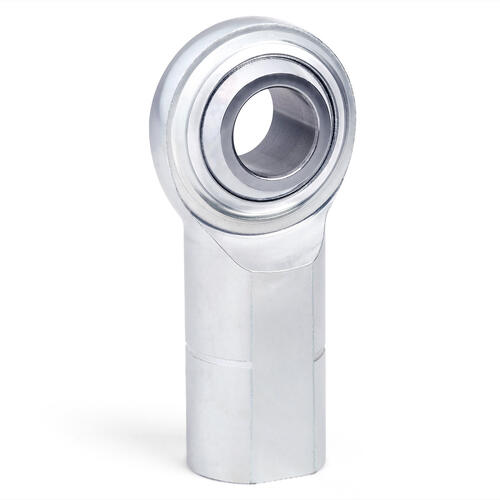

QA1 Rod End, MCF Series, 2-Pieces, Carbon/Steel, Right Hand, 10mm-10mm, Each

QA1 Rod End, MCF Series, 2-Pieces, Carbon/Steel, Right Hand, 10mm-10mm, Each

$9.86

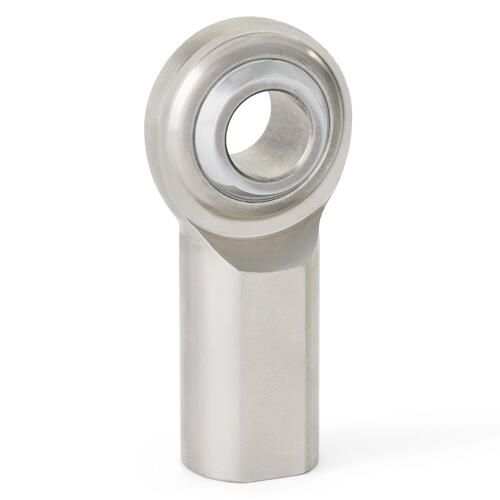

QA1 Rod End, GF Series, 2-Pieces, 300 SS Right Hand, 0.375in. Bore, 3/8 Teflon , Each
