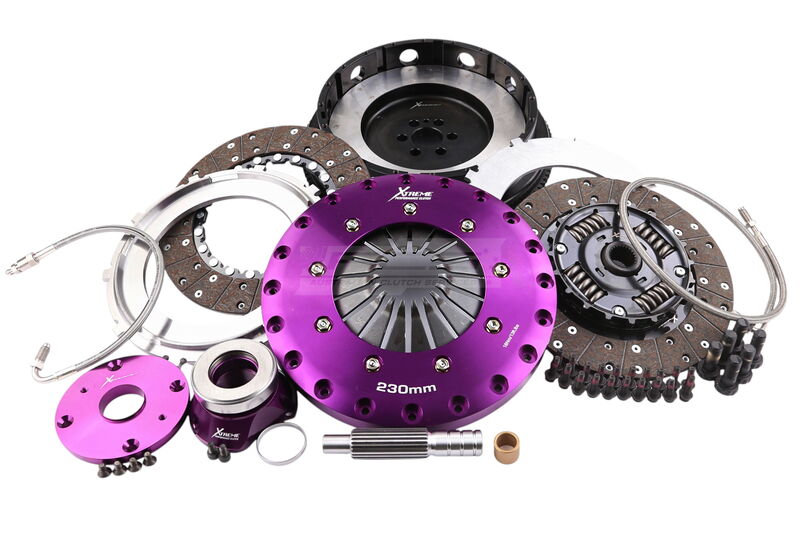

Xtreme Performance Twin-Plate Clutch Kit, Niss R34 GTR, High-Power Street, 230 mm, Organic, Single-Mass Flywheel, Push-Type CSC Conversion, 1000 Nm (XPC-KNI23683-2A)

Multi-Plate Organic - Stage 4

Organic multi-disc kits are available in 230mm or 270mm and with either rigid (-2G, -3G) or sprung (-2A) hubs. These kits are recommended for very high powered street vehicles.

SPECIFICATIONS

Brand Xtreme Performance
Category Clutch Kit (Multi-Plate)
Aligning Tool Included Yes
Clutch Disc Diameter (mm) 230
Clutch Disc Spline Count 24
Clutch Disc Spline Diameter (mm) 25.4
Concentric Slave Cylinder Included Yes-Push Type Conversion
Disc Type Sprung
Flywheel Bolts Included Yes
Flywheel Included Single Mass
Flywheel Step (mm) +3.8
Friction Material Organic
Multiplate Twin
Note 1 Conversion to Single Mass Flywheel
Note 2 Includes Braided Clutch Lines
Pressure Plate Bolts Included Yes
Recommended Use High Power Street
Spigot Bush/Bearing Included Yes
Spline Grease Included Yes
Torque (ftlbs) Inc FOS 740
Torque (Nm) Inc FOS 1000
Transport Weight (kg) 18.5
