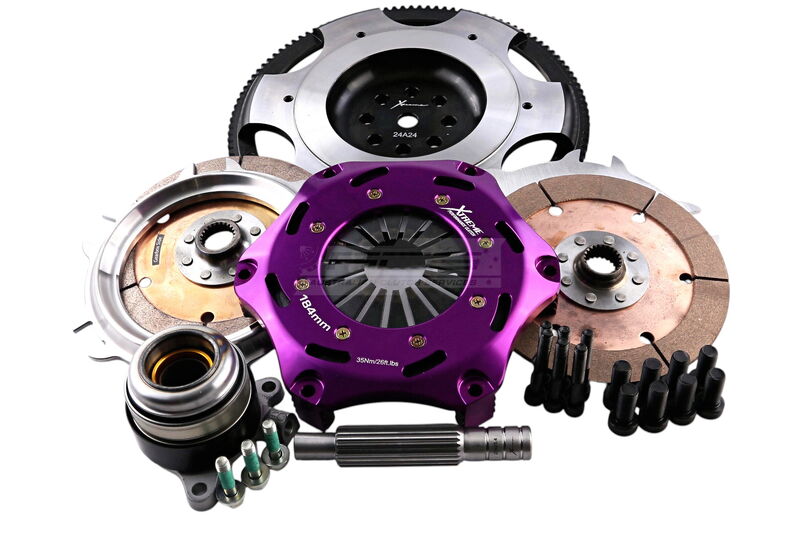

Xtreme Performance Twin-Plate Clutch Kit, Gr Yaris 1.6L, Track/Motorsport, 184 mm, Ceramic, Single-Mass Flywheel, CSC Included, Solid Disc, 1220 Nm (XPC-KTY18628-2E)

Motorsport - Stage 5

Xtreme Clutch Stage 5 Motorsport series kits are available in a variety of configurations and sizes including everything from single plate to quad plate. These kits differ from Motorsport suitable stage 2 & 3 kits by utilising a modular 184mm, 200mm or 230mm pressure plate in lightweight alloy (Except for select Subaru & Mitsubishi kits utilising a pull-type pressure plate). These kits are also serviceable* and can be rebuilt using an Xtreme Clutch service kit with replacements discs, intermediate plate etc. as required by application.

These kits are designed for dedicated motorsport use only

SPECIFICATIONS

Brand Xtreme Performance
Category Clutch Kit (Multi-Plate)
Aligning Tool Included Yes
Clutch Disc Diameter (mm) 184
Clutch Disc Spline Count 23
Clutch Disc Spline Diameter (mm) 26.0
Concentric Slave Cylinder Included Yes
Disc Type Solid
Flywheel Bolts Included Yes
Flywheel Included Single Mass
Flywheel Step (mm) +2.5
Friction Material Ceramic
Multiplate Twin
Pressure Plate Bolts Included Yes
Recommended Use Track/Motorsport
Spline Grease Included Yes
Torque (ftlbs) Inc FOS 900
Torque (Nm) Inc FOS 1220
Transport Weight (kg) 13.4
