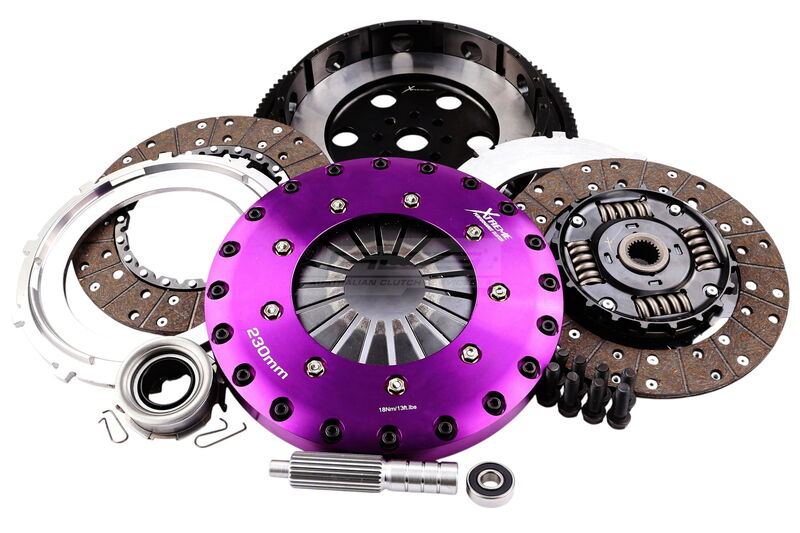

Xtreme Performance Twin-Plate Clutch Kit, Brz/Toy 86 2.0L, High-Power Street, 230 mm, Organic, Single-Mass Flywheel, Sprung Disc, 1000 Nm (XPC-KSU23540-2A)

Multi-Plate Organic - Stage 4

Organic multi-disc kits are available in 230mm or 270mm and with either rigid (-2G, -3G) or sprung (-2A) hubs. These kits are recommended for very high powered street vehicles.

SPECIFICATIONS

Brand Xtreme Performance
Category Clutch Kit (Multi-Plate)
Aligning Tool Included Yes
Clutch Disc Diameter (mm) 230
Clutch Disc Spline Count 24
Clutch Disc Spline Diameter (mm) 25.2
Disc Type Sprung
Flywheel Bolts Included Yes
Flywheel Included Single Mass
Flywheel Step (mm) +3.8
Friction Material Organic
Multiplate Twin
Note 1 Bellhousing Modification Required
Pressure Plate Bolts Included Yes
Recommended Use High Power Street
Spigot Bush/Bearing Included Yes
Spline Grease Included Yes
Torque (ftlbs) Inc FOS 740
Torque (Nm) Inc FOS 1000
Transport Weight (kg) 15.7
