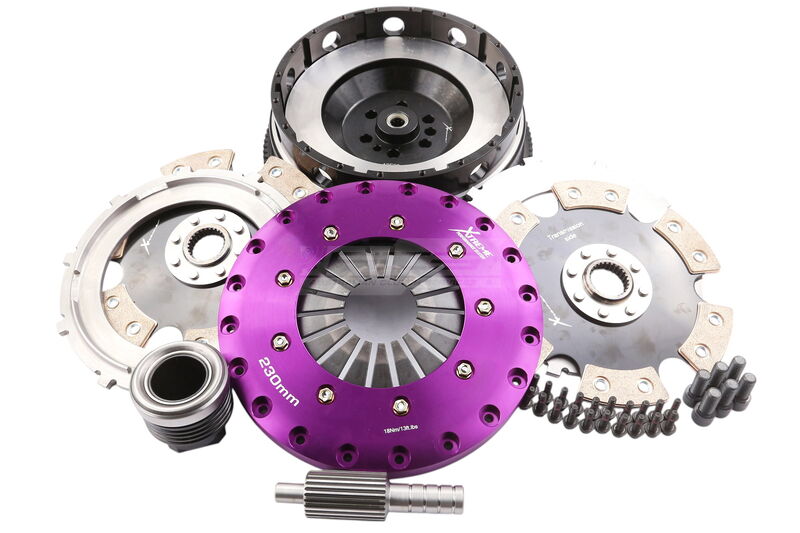

Xtreme Performance Twin-Plate Clutch Kit, BMW M2/3 S55 3.0L, Track/Motorsport, 230 mm, Ceramic, Single-Mass Flywheel, Solid Disc, 1830 Nm (XPC-KBM23560-2E)

Motorsport - Stage 5

Xtreme Clutch Stage 5 Motorsport series kits are available in a variety of configurations and sizes including everything from single plate to quad plate. These kits differ from Motorsport suitable stage 2 & 3 kits by utilising a modular 184mm, 200mm or 230mm pressure plate in lightweight alloy (Except for select Subaru & Mitsubishi kits utilising a pull-type pressure plate). These kits are also serviceable* and can be rebuilt using an Xtreme Clutch service kit with replacements discs, intermediate plate etc. as required by application.

These kits are designed for dedicated motorsport use only

SPECIFICATIONS

Brand Xtreme Performance
Category Clutch Kit (Multi-Plate)
Aligning Tool Included Yes
Clutch Disc Diameter (mm) 230
Clutch Disc Spline Count 26
Clutch Disc Spline Diameter (mm) 35.0
Disc Type Solid
Flywheel Bolts Included Yes
Flywheel Included Single Mass
Flywheel Step (mm) +3.8
Friction Material Ceramic
Multiplate Twin
Note 1 Conversion to SMF (Single Mass Flywheel)
Pressure Plate Bolts Included Yes
Recommended Use Track / Motorsport
Spigot Bush/Bearing Included Yes
Spline Grease Included Yes
Torque (ftlbs) Inc FOS 1350
Torque (Nm) Inc FOS 1830
Transport Weight (kg) 17.2
