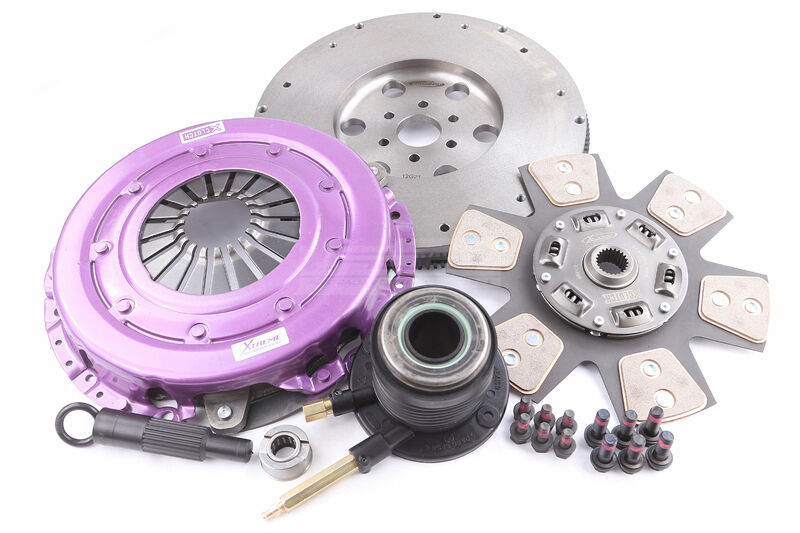

Xtreme Performance Single-Plate Clutch Kit, XR6 4.0L Con, Stage 2, 266 mm, Ceramic, Single-Mass Flywheel, CSC Included, Sprung Disc, 960 Nm (XPC-KFD27698-1B)

Sprung or Cushioned Ceramic - Stage 2

The stage 2 range has been designed primarily for very high performance street cars that are also used for track use. These single plate kits will offer a higher heat capacity than their organic equivalents, however they do lose a level of driveability for street use.

SPECIFICATIONS

Brand Xtreme Performance
Category Clutch Kit (Single Plate)
Aligning Tool Included Yes
Clamping Force % Increase 55%
Clutch Disc Diameter (mm) 266
Clutch Disc Spline Count 23
Clutch Disc Spline Diameter (mm) 26
Concentric Slave Cylinder Included Yes
Disc Type Sprung
Flywheel Bolts Included Yes
Flywheel Included Single Mass
Flywheel Step (mm) Flat
Friction Material Ceramic
Note Conversion to Single Mass Flywheel
Note 2 Non Self Adjusting
Pressure Plate Bolts Included Yes
Recommended Use Track
Spigot Bush/Bearing Included Yes
Spline Grease Included Yes
Stage 2
Torque (ftlbs) Inc FOS 710
Torque (Nm) Inc FOS 960
Transport Weight (kg) 21.5
