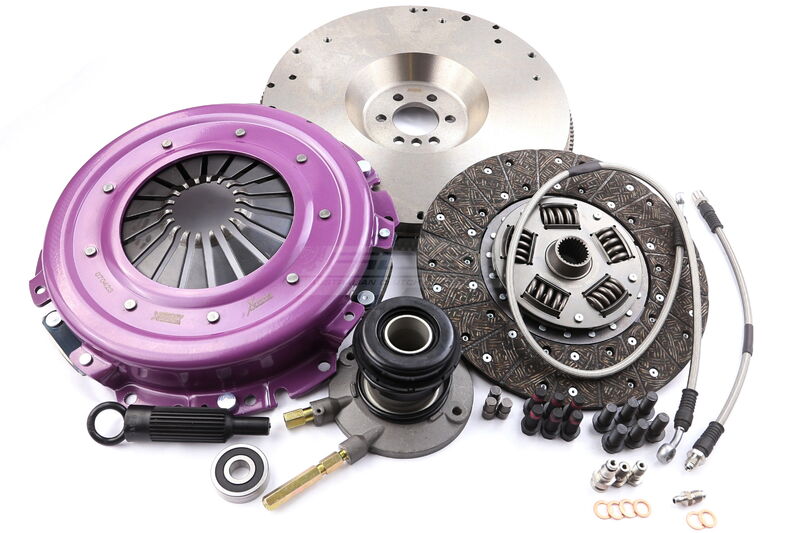

Xtreme Performance Single-Plate Clutch Kit, VF V8 Non Sac, Stage 1, 280 mm, Organic, Chromoly Single-Mass Flywheel, CSC Included, Sprung Disc, 710 Nm (XPC-KGM28696-1A)

Heavy Duty Organic - Stage 1

The most popular upgrade in the Xtreme Clutch range, the Stage 1 upgrade kits include single plate organic upgrades with either a sprung or rigid friction disc. These kits are ideal for vehicles with light modifications and are being used on the street.

SPECIFICATIONS

Brand Xtreme Performance
Category Clutch Kit (Single Plate)
Aligning Tool Included Yes
Clutch Disc Diameter (mm) 280
Clutch Disc Spline Count 26
Clutch Disc Spline Diameter (mm) 28.6
Concentric Slave Cylinder Included Yes
Disc Type Sprung
Flywheel Bolts Included Yes
Flywheel Included Single Mass-Chromoly
Flywheel Step (mm) Flat
Friction Material Organic
Pressure Plate Bolts Included Yes
Recommended Use Street
Spigot Bush/Bearing Included Yes
Spline Grease Included Yes
Stage 1
Torque (ftlbs) Inc FOS 520
Torque (Nm) Inc FOS 710
Transport Weight (kg) 26.5
