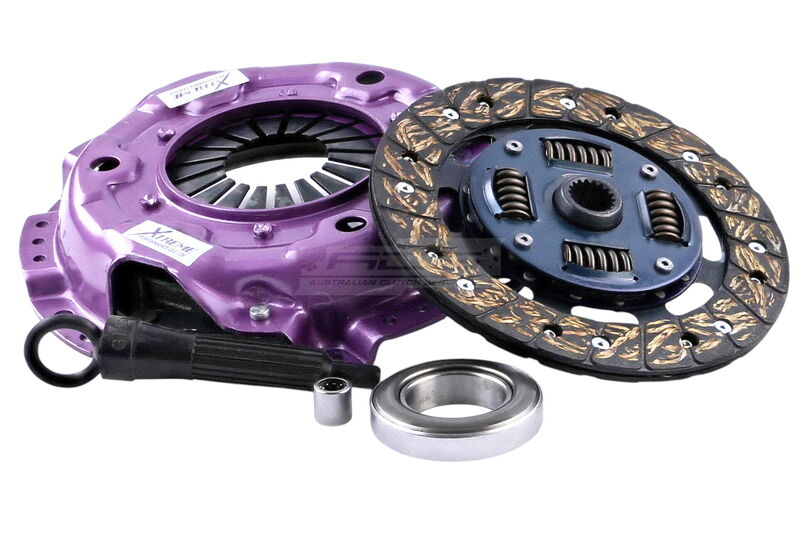

Xtreme Performance Single-Plate Clutch Kit, Suzuki Sierra 1.0L, Stage 1, 180 mm, Organic, Sprung Disc, 190 Nm (XPC-KSZ18003-1A)

Heavy Duty Organic - Stage 1

The most popular upgrade in the Xtreme Clutch range, the Stage 1 upgrade kits include single plate organic upgrades with either a sprung or rigid friction disc. These kits are ideal for vehicles with light modifications and are being used on the street.

SPECIFICATIONS

Brand Xtreme Performance
Category Clutch Kit (Single Plate)
Aligning Tool Included Yes
Clamping Force % Increase 60%
Clutch Disc Diameter (mm) 180
Clutch Disc Spline Count 18
Clutch Disc Spline Diameter (mm) 20.3
Disc Type Sprung
Flywheel Step (mm) +1.8
Friction Material Organic
Recommended Use Street
Spigot Bush/Bearing Included Yes
Spline Grease Included Yes
Stage 1
Torque (ftlbs) Inc FOS 140
Torque (Nm) Inc FOS 190
Transport Weight (kg) 4.6
