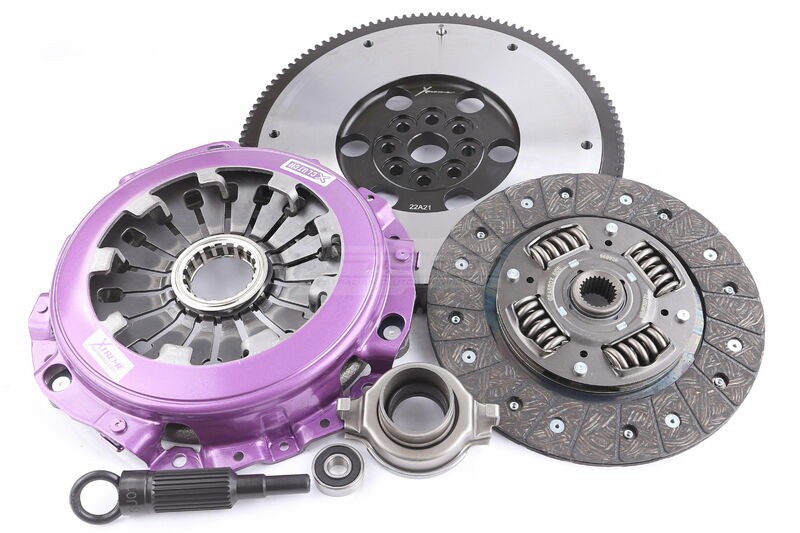

Xtreme Performance Single-Plate Clutch Kit, Sub WRX Pull 2.0L, Stage 1, 230 mm, Organic, Single-Mass Flywheel, Sprung Disc, 560 Nm (XPC-KSU23506-1A)

Heavy Duty Organic - Stage 1

The most popular upgrade in the Xtreme Clutch range, the Stage 1 upgrade kits include single plate organic upgrades with either a sprung or rigid friction disc. These kits are ideal for vehicles with light modifications and are being used on the street.

SPECIFICATIONS

Brand Xtreme Performance
Category Clutch Kit (Single Plate)
Aligning Tool Included Yes
Clamping Force % Increase 40%
Clutch Disc Diameter (mm) 230
Clutch Disc Spline Count 24
Clutch Disc Spline Diameter (mm) 25.2
Disc Type Sprung
Flywheel Included Single Mass
Flywheel Step (mm) Flat
Friction Material Organic
Recommended Use Street
Spigot Bush/Bearing Included Yes
Spline Grease Included Yes
Stage 1
Torque (ftlbs) Inc FOS 410
Torque (Nm) Inc FOS 560
Transport Weight (kg) 14.8
