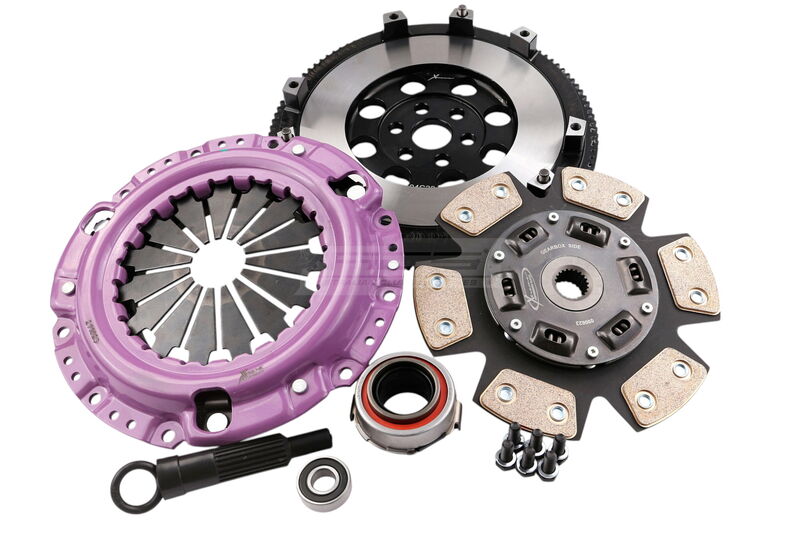

Xtreme Performance Single-Plate Clutch Kit, Maz MX5 1.6L/1.8L, Stage 2R, 225 mm, Ceramic, Single-Mass Flywheel, Sprung Disc, 550 Nm (XPC-KMZ22506-1R)

Ceramic Race - Stage 2R

The Stage 2R kits are designed for motorsport use and offer a motorsport focused pressure plate with increased clamping force with a ceramic friction disc.

SPECIFICATIONS

Brand Xtreme Performance
Category Clutch Kit (Single Plate)
Aligning Tool Included Yes
Clamping Force % Increase 85%
Clutch Disc Diameter (mm) 225
Clutch Disc Spline Count 22
Clutch Disc Spline Diameter (mm) 24.5
Disc Type Sprung
Flywheel Included Single Mass
Flywheel Step (mm) -20
Friction Material Ceramic
Pressure Plate Bolts Included Yes
Recommended Use Track
Spigot Bush/Bearing Included Yes
Spline Grease Included Yes
Stage 2R
Torque (ftlbs) Inc FOS 410
Torque (Nm) Inc FOS 550
Transport Weight (kg) 12.7
