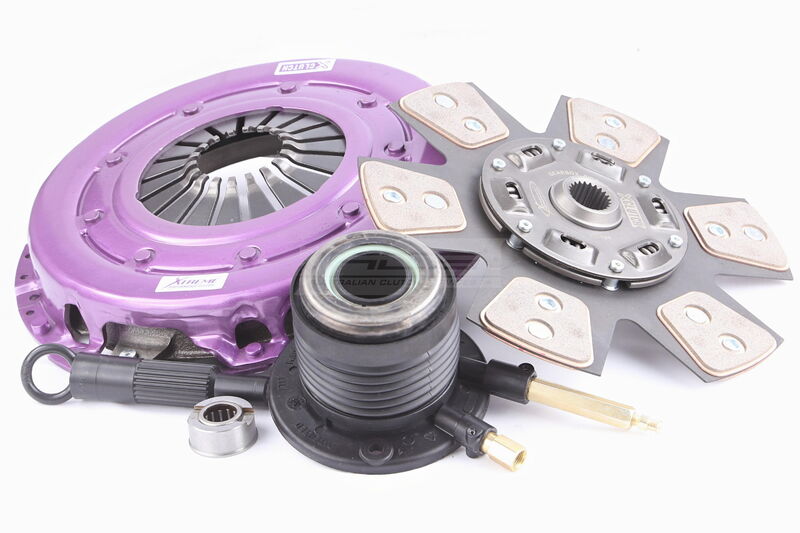

Xtreme Performance Single-Plate Clutch Kit, Ford XR6 4.0L Con, Stage 2R, 266 mm, Ceramic, CSC Included, Sprung Disc, 1190 Nm (XPC-KFD27498-1R)

Ceramic Race - Stage 2R

The Stage 2R kits are designed for motorsport use and offer a motorsport focused pressure plate with increased clamping force with a ceramic friction disc.

SPECIFICATIONS

Brand Xtreme Performance
Category Clutch Kit (Single Plate)
Aligning Tool Included Yes
Clamping Force % Increase 90%
Clutch Disc Diameter (mm) 266
Clutch Disc Spline Count 23
Clutch Disc Spline Diameter (mm) 26
Concentric Slave Cylinder Included Yes
Disc Type Sprung
Flywheel Step (mm) Flat
Friction Material Ceramic
Note Non Self Adjusting
Note 2 Suits ACS Flywheel
Recommended Use Track
Spigot Bush/Bearing Included Yes
Spline Grease Included Yes
Stage 2R
Torque (ftlbs) Inc FOS 880
Torque (Nm) Inc FOS 1190
Transport Weight (kg) 11.7
