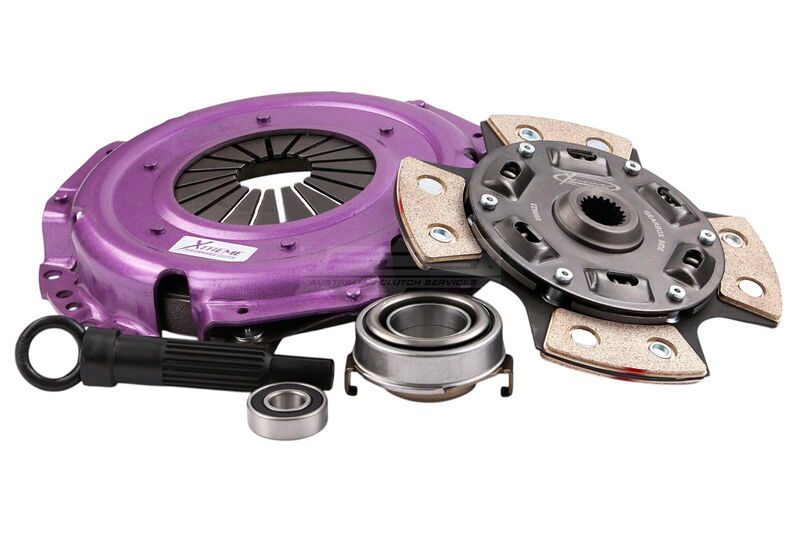

Xtreme Performance Single-Plate Clutch Kit, Ford/Mazda 323 1.6L, Stage 2, 190 mm, Ceramic, Sprung Disc, 310 Nm (XPC-KFD19002-1B)

Sprung or Cushioned Ceramic - Stage 2

The stage 2 range has been designed primarily for very high performance street cars that are also used for track use. These single plate kits will offer a higher heat capacity than their organic equivalents, however they do lose a level of driveability for street use.

SPECIFICATIONS

Brand Xtreme Performance
Category Clutch Kit (Single Plate)
Aligning Tool Included Yes
Clamping Force % Increase 30%
Clutch Disc Diameter (mm) 190
Clutch Disc Spline Count 20
Clutch Disc Spline Diameter (mm) 22.8
Disc Type Sprung
Flywheel Step (mm) +0.5
Friction Material Ceramic
Recommended Use Track
Spigot Bush/Bearing Included Yes
Spline Grease Included Yes
Stage 2
Torque (ftlbs) Inc FOS 230
Torque (Nm) Inc FOS 310
Transport Weight (kg) 5.6
