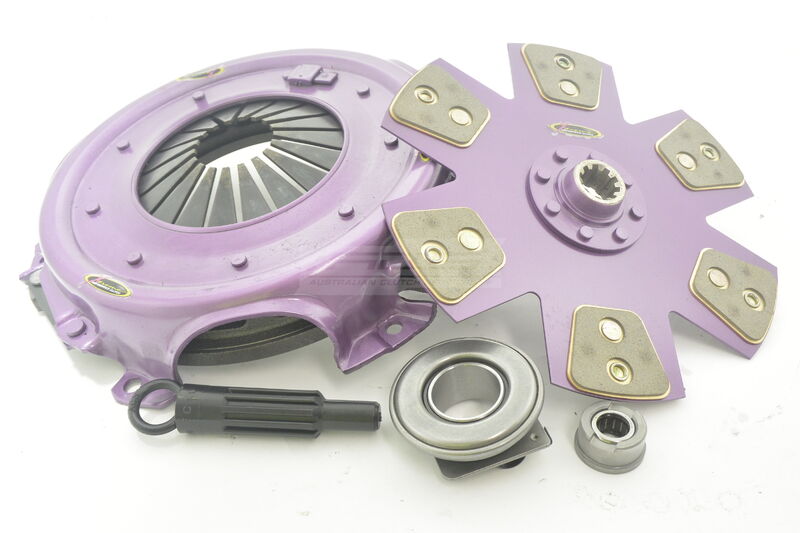

Xtreme Performance Single-Plate Clutch Kit, Ford Bronco F-Series V8, Motorsport, 280 mm, Ceramic, Solid Disc, 940 Nm (XPC-KFD28002-1E)

Motorsport - Stage 5

Xtreme Clutch Stage 5 Motorsport series kits are available in a variety of configurations and sizes including everything from single plate to quad plate. These kits differ from Motorsport suitable stage 2 & 3 kits by utilising a modular 184mm, 200mm or 230mm pressure plate in lightweight alloy (Except for select Subaru & Mitsubishi kits utilising a pull-type pressure plate). These kits are also serviceable* and can be rebuilt using an Xtreme Clutch service kit with replacements discs, intermediate plate etc. as required by application.

These kits are designed for dedicated motorsport use only

SPECIFICATIONS

Brand Xtreme Performance
Category Clutch Kit (Single Plate)
Aligning Tool Included Yes
Clamping Force % Increase 30%
Clutch Disc Diameter (mm) 280
Clutch Disc Spline Count 10
Clutch Disc Spline Diameter (mm) 27
Disc Type Solid
Flywheel Step (mm) Flat
Friction Material Ceramic
Recommended Use Motorsport
Spigot Bush/Bearing Included Yes
Spline Grease Included Yes
Torque (ftlbs) Inc FOS 690
Torque (Nm) Inc FOS 940
Transport Weight (kg) 11
