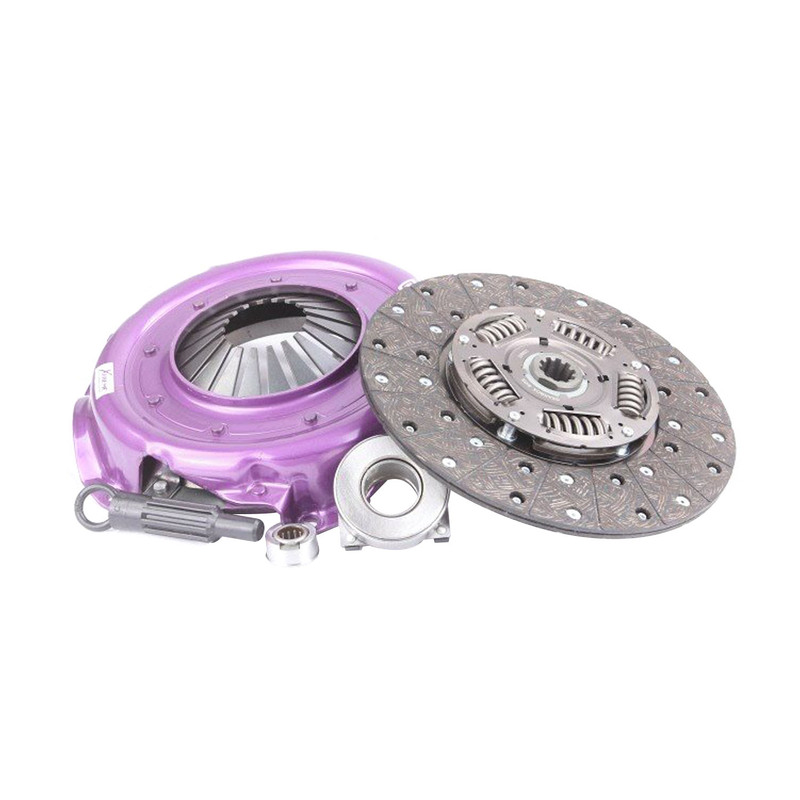

Extreme Clutch Stage 1A Sprung Organic Clutch Kits are recommended for Street use in vehicles with minor engine modifications.

Sprung organic clutch kits offer exceptional driveability for vehicles used daily but also have performance modifications. The sprung organic disc offers improved dampening which reduces the shock loading on the transmission.

This pressure plate bolt pattern uses the 6 x evenly spaced 5/16" bolt holes used in late model 157 tooth Ford Flywheels.

RTS steel flywheels are drilled for this and all other Ford bolt patterns

Specifications
Flywheel Step (mm) Flat
Clutch Disc Diameter (mm) 268
Clutch Disc Spline Count 10
Clutch Disc Spline Diameter (mm) 27
Disc Type Sprung
Friction Material Organic
Stage 1
Recommended Use Street
Clamping Force % Increase 25%
Torque (Nm) Inc FOS 560
Torque (ftlbs) Inc FOS 410
Spigot Bush/Bearing Included Yes
Aligning Tool Included Yes
Spline Grease Included Yes
Transport Weight (kg) 12
