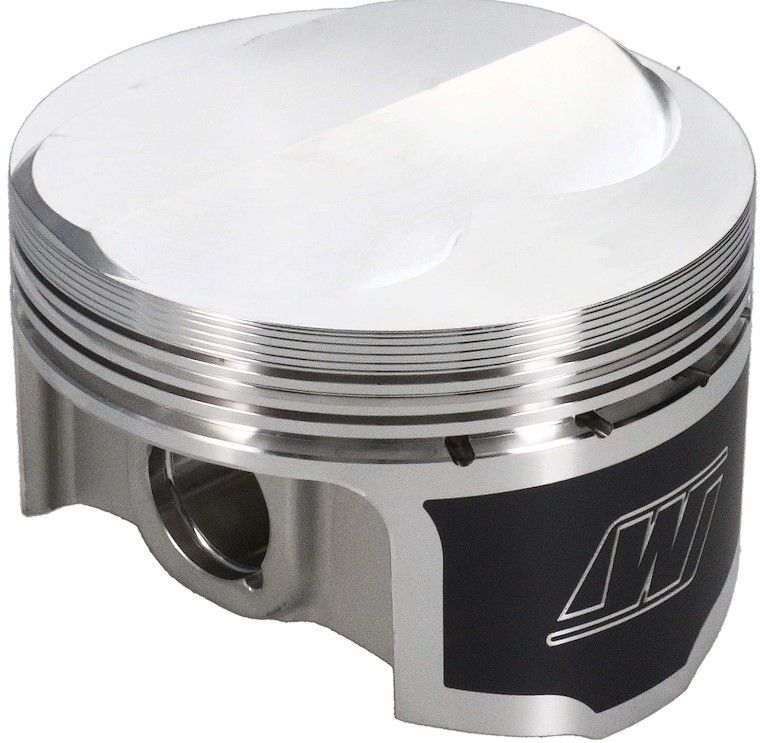

Appropriately dubbed the RED series, these forged pistons utilize Race Engineered Design to offer the strength and durability performance engines need with precision-machined features to provide a competitive edge. RED series piston kits are available for range of popular, domestic V8 platforms, the cornerstone of racing and performance from drag racing to circle track.
Engineered, forged, and machined in the USA from 2618 aluminum for tensile strength needed in performance racing and power adder applications, Dedicated forgings allow for optimized, engine-specific strutted design to maximize strength-to-weight characteristics, ArmorGlide skirt coating reduces operating friction and noise while also reducing skirt and cylinder wear, Horizontal slot oiling in pin bores maintain optimal wrist pin and small-end lubrication, critical for long service life, Accumulator groove helps maintain consistent ring seal and power, Each part number includes premium rings no need for additional sourcing

Product Series

RED Series

Bore Diameter

4.155 IN

Stroke

4.000 IN

Rod Length

6.000 IN

Compression Height

1.000 IN

Cylinder Head

Small Block 23?

Piston Volume

-12.00 CC

Piston Material

2618

Ring Set Included

Yes

Top Compression Ring Thickness

1.20 MM

Top Ring Material

Stainless Steel

Second Compression Ring Thickness

1.20 MM

Second Ring Material

Ductile Iron

Oil Ring Thickness

3.00 MM

Oil Ring Tension

Standard

Third Ring Material

Stainless Steel

Wrist Pin Style

Floating

Wrist Pin Outer Diameter

0.927 IN
