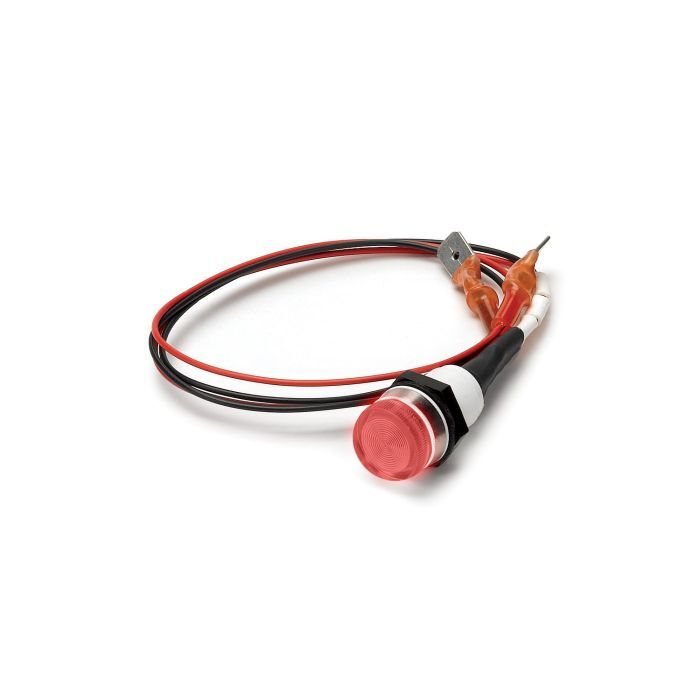

Autometer Warning Light, Panel Mount, Red, Stack Instruments (SKU: STK-ST537)

  • Outer diameter of lamp bezel - 14.7mm (0.579 in)
  • Stands 9.1mm (0.358 in) proud of mounting surface.
  • Recommended for panels up to a thickness of 9.6mm (0.378 in)
  • Allow a minimum clearance to other surfaces behind the panel of 50mm (2 in.) for wiring and installation purposes.
  • Suitable for operation on 12V and 16V systems. 100mA draw when illuminated.

SPECIFICATIONS

Series STACK INSTRUMENTS
Product Type Warning Light
