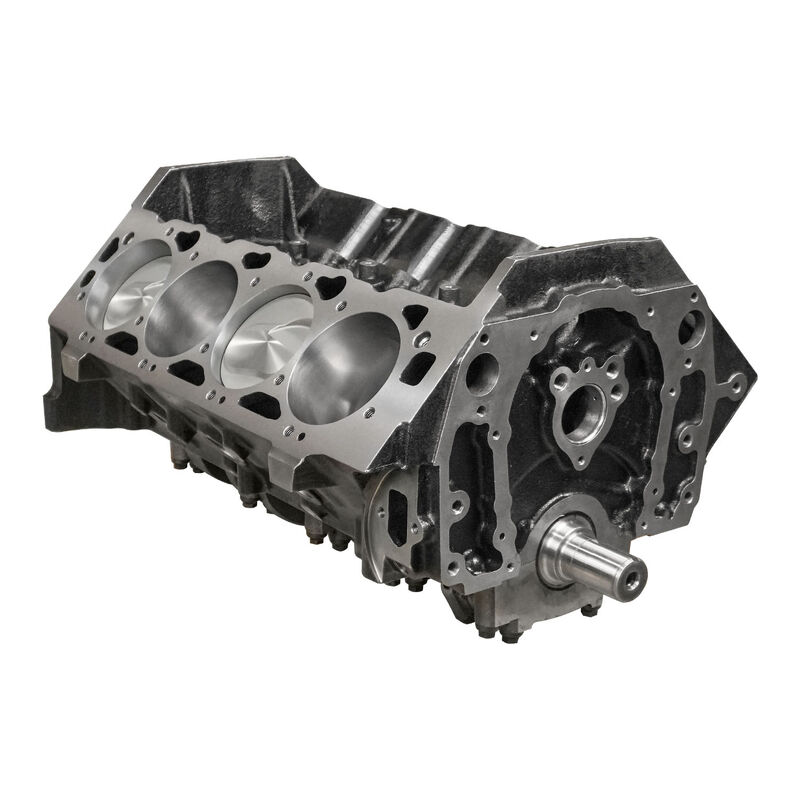

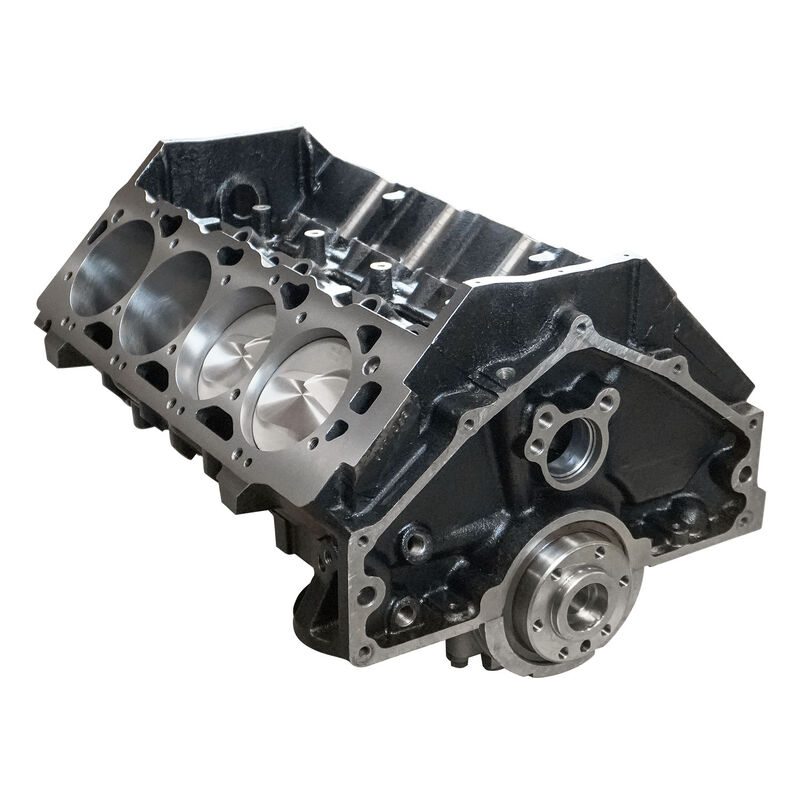

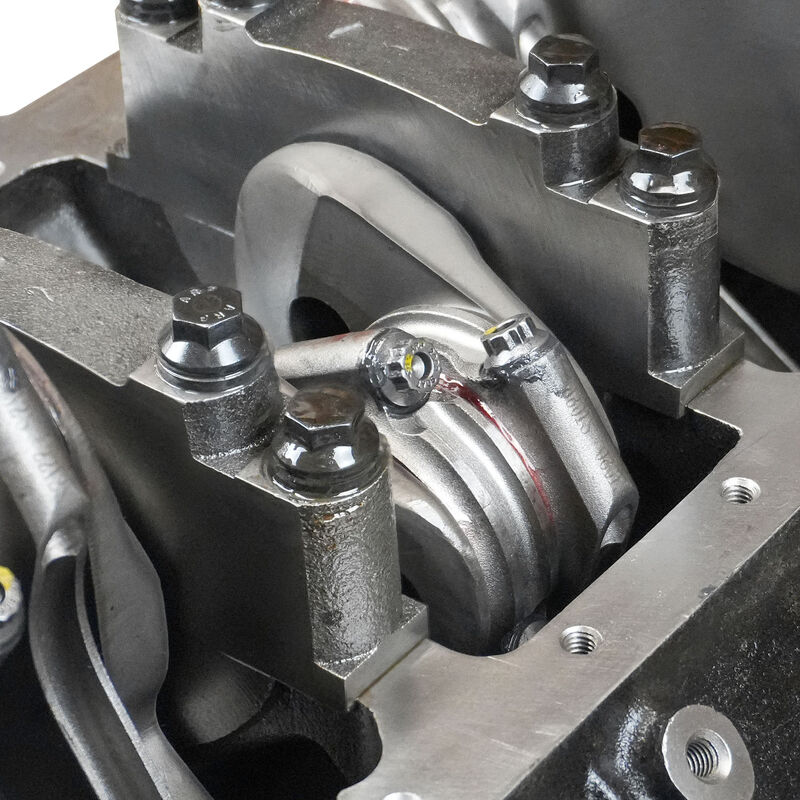

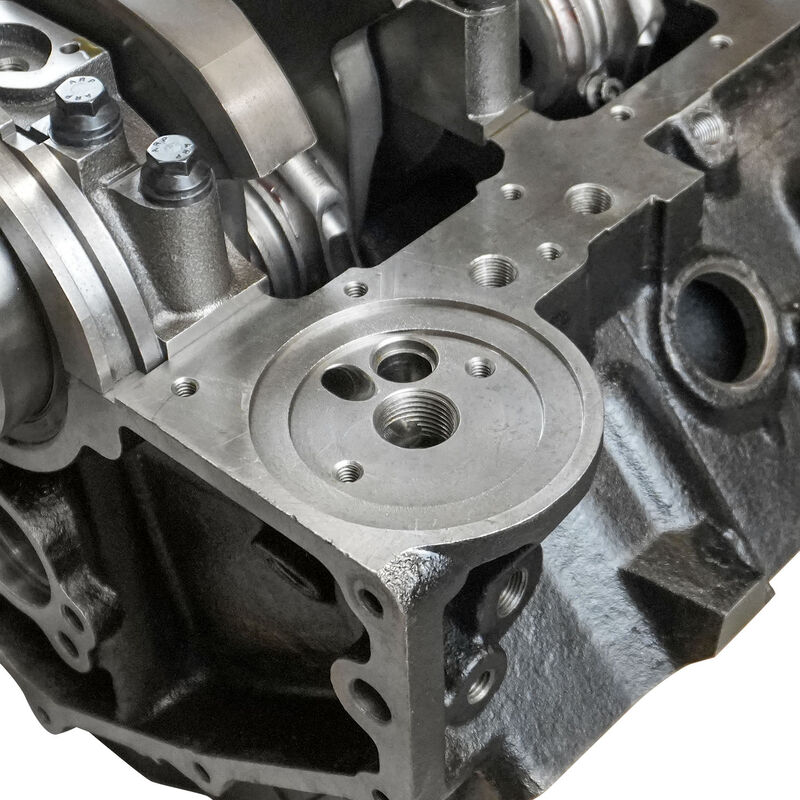

Proflow Warlord Plus BB540 Stroker Assembly

Your engine needs a rock-solid foundation to make the horsepower you crave; that's where these Proflow Warlord Plus Stroker short blocks come in. With these blocks, all of the hard work has been done for you. Everything comes machined, clearanced, balanced, and blueprinted, so you have a bulletproof bottom-end that is ready to run. Just decide how mild or wild you want to go.

These Warlord Plus Stroker short blocks include the following:

* All New

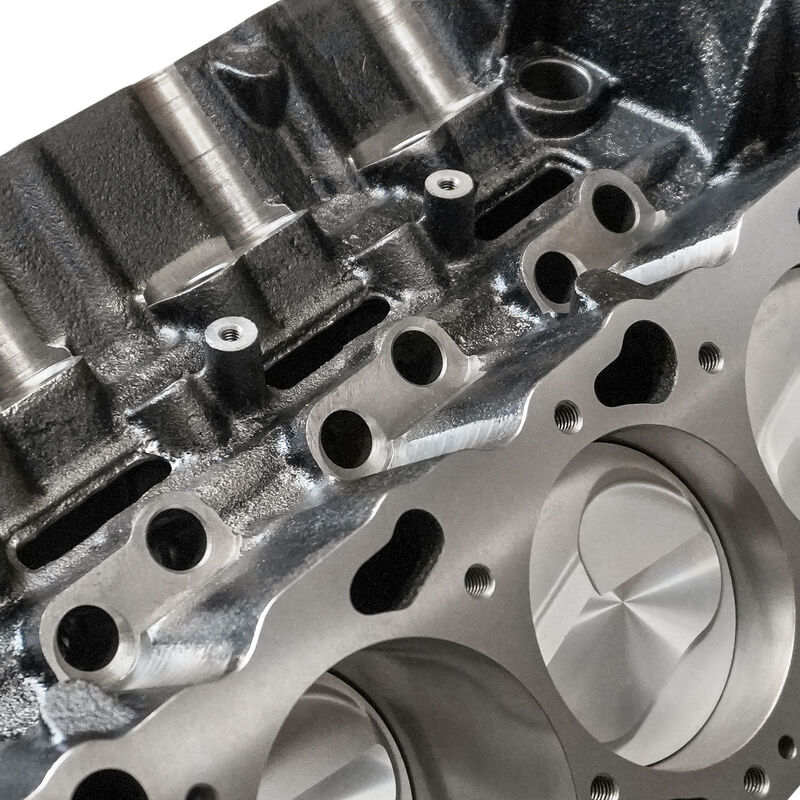

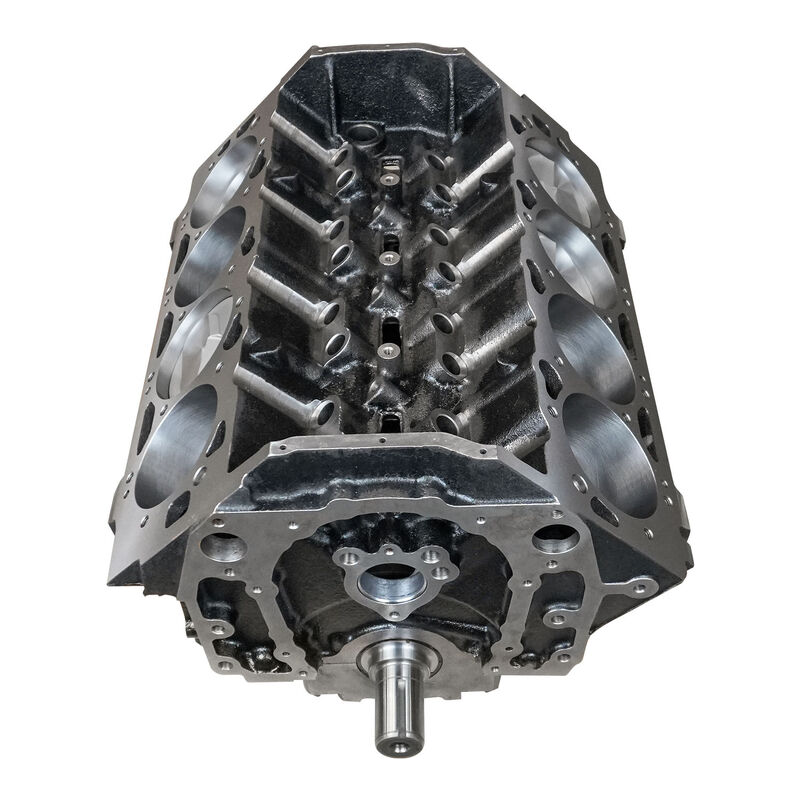

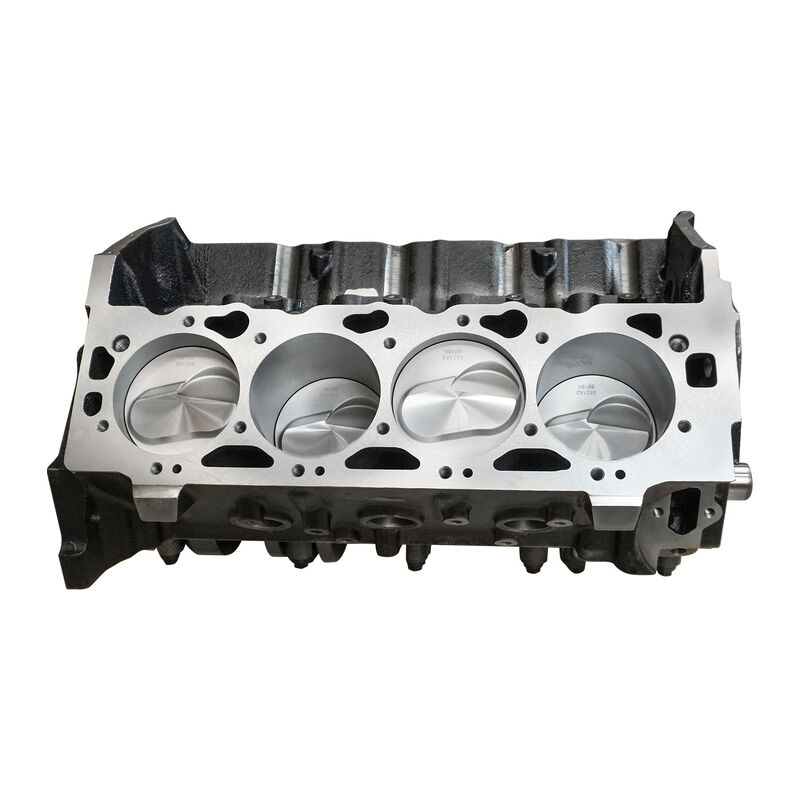

* 4-bolt Main block 4.500" bore, Gen 6
* Aligned and honed main bores

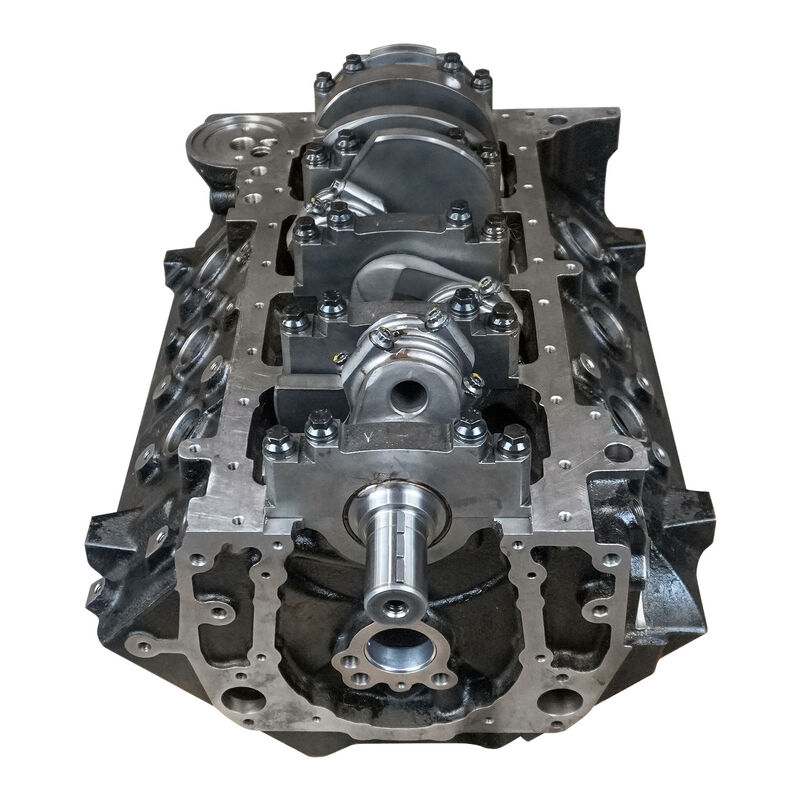

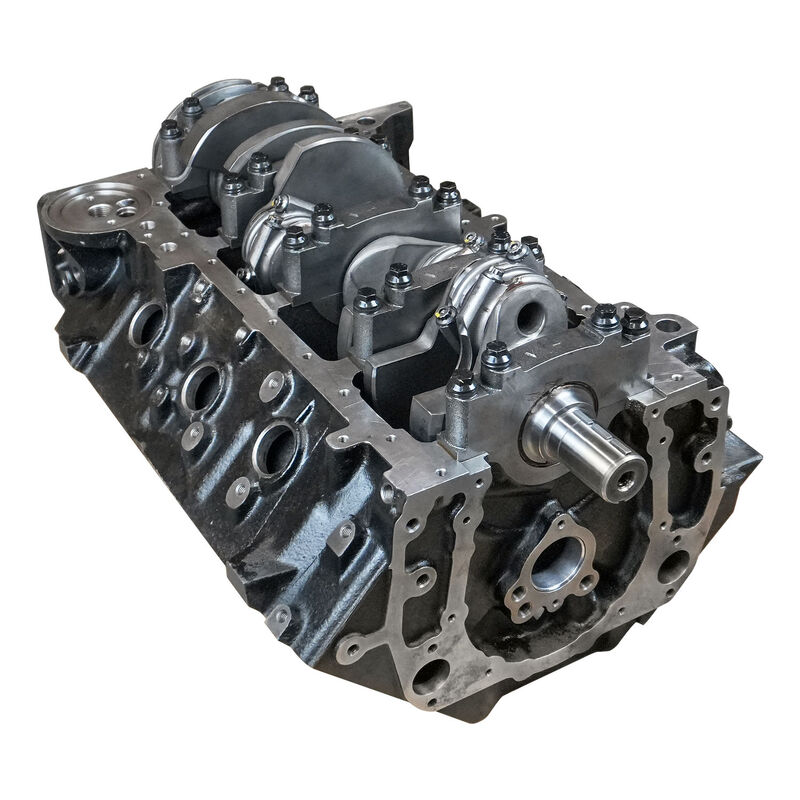

* 4340 Steel Crankshaft
* 4.250 in. stroke
* 6.385" H-beam connecting rods
*  Wiseco, Racetec or SRP Dish ,Flat Top or Dome Pistons



Engine Specifications:
• Block: Warlord 4 bolt main Gen 6, 1 pce RMS with ARP Bolts
• Bore/Stroke: 4.500” x 4.250”
• Displacement: 540CI
• Crankshaft: Scat 4340 Forged internally balanced
• Rods: Scat 6.385'' 4340 forged H beam with ARP 2000 bolts

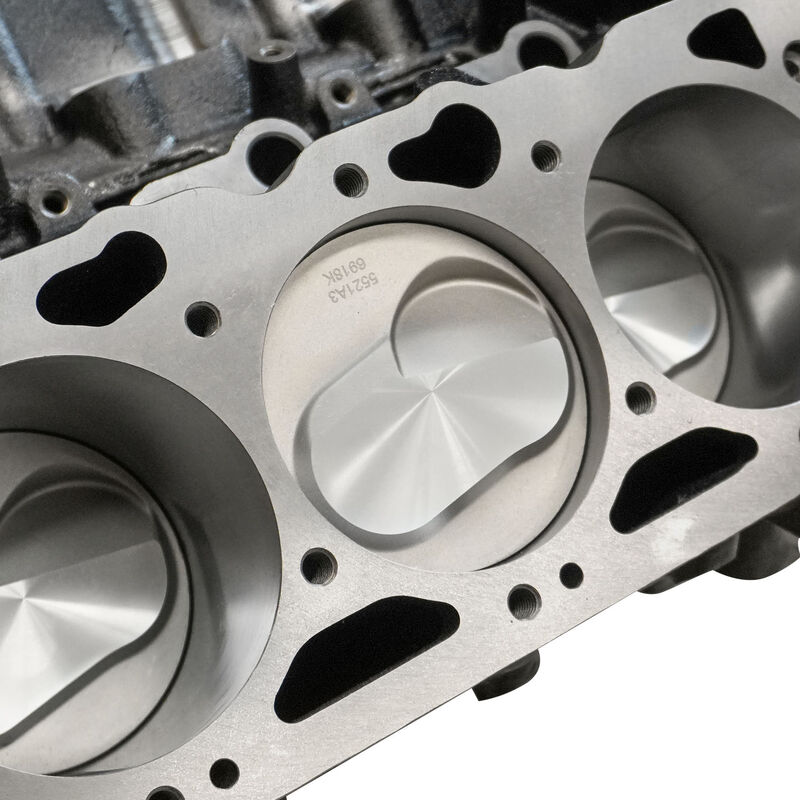

• Pistons: Forged 15cc
• Compression Ratios: 10.8:1 / 119cc Heads
• Rings: Plasma-moly
• Camshaft Bearings: Clevite H Series
• Freeze Plugs: installed and sealed


Recommended Components:
• Balancer: Internal balance
• Flexplate/Flywheel: Internal balance

Engine Info:
• Oil: 10W30 Conventional / Non Synthetic for first 3000 miles
• Oil Filter: Fram

* Built & Machined in Melbourne by Reputable Engine Builders
