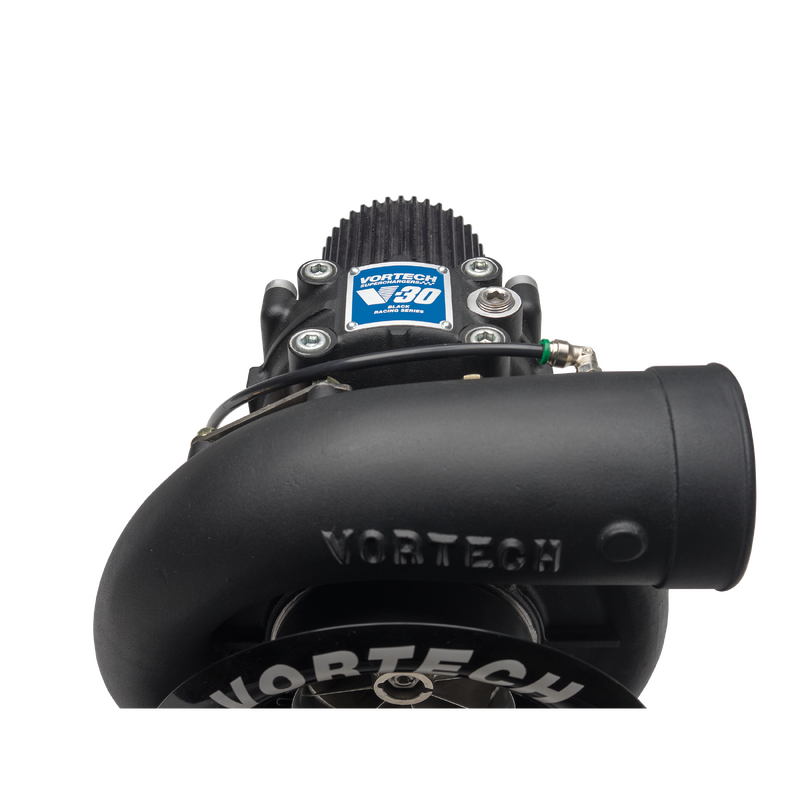

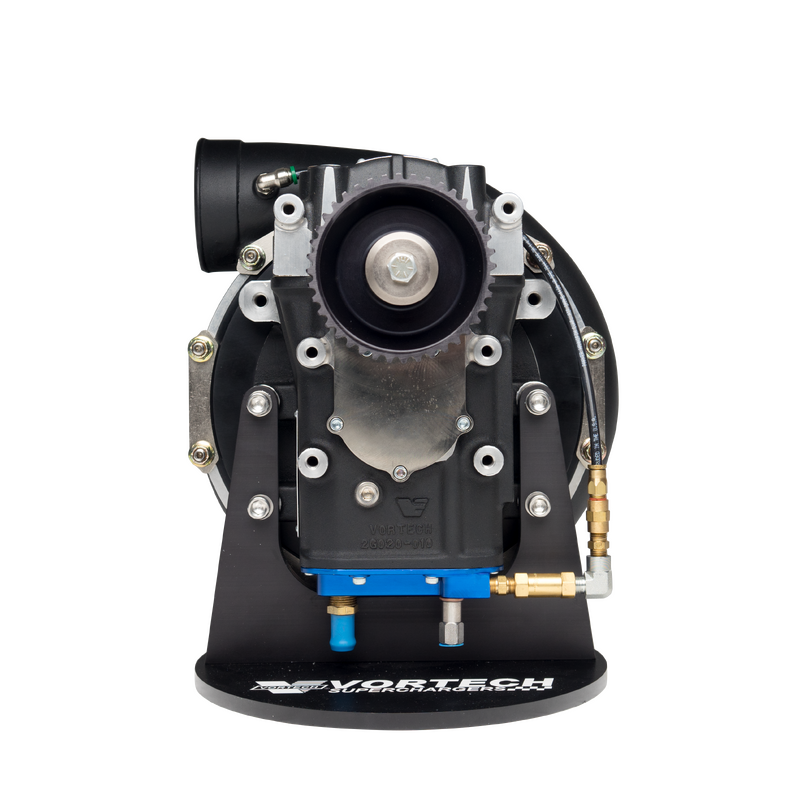

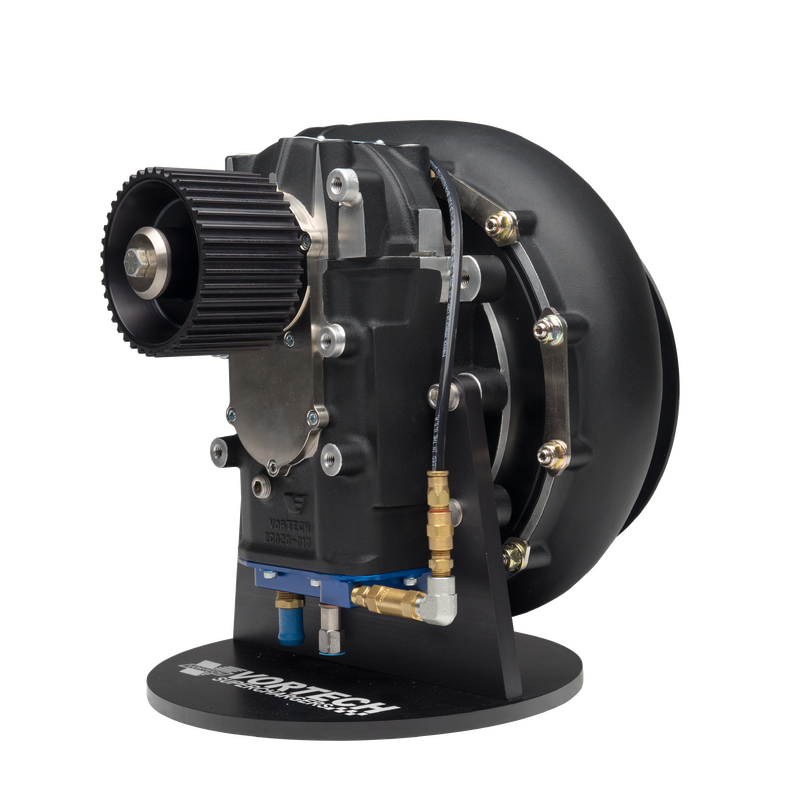

Vortech Superchargers, V-30 94A, Straight Discharge, CCW Rotation, Black Finish (PART #VOR-2G459-014)

The V-30 94A is the next step in compressor development, replacing the existing V-27 YSi-B, and incorporates a technologically advanced, high-efficiency, 5-Axis machined billet impeller and high-diffusion housing developed in our SAE-J1723-compliant supercharger test cell.

The V-30 Series combines the advanced technology and race-proven performance and is designed for vehicles with highly modified engines and extreme CFM/boost demands. All units feature our exclusive D-port volute for improved efficiently and require the use of a Vortech Racing Bypass Valve or larger to meet discharge flow demands. All V-30 series superchargers share a 4.21:1 internal step-up ratio and are engine oil lubricated or an auxiliary system can be fabricated. The heavy duty (H/D) configuration includes high speed, ceramic hybrid ball bearings, ideal for race applications, and is compatible with cog pulley/Gilmer style drive setups.
