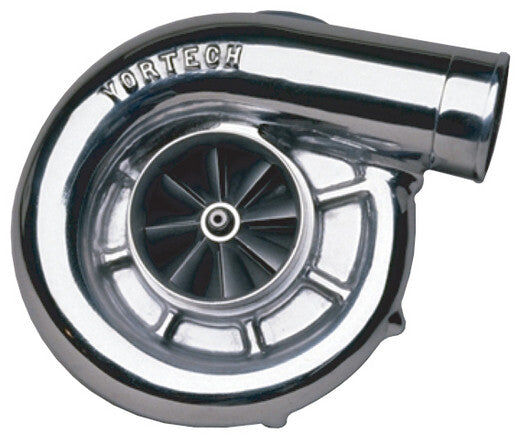

Vortech Superchargers, V-1 Ti-Trim, Curved Discharge, Heavy Duty, CW Rotation, Black Finish (PART #VOR-2A138-144)

The supercharger of choice for street/strip vehicles with modified engines. Fits engines up to 825 horsepower. Available with straight or curved discharge and clockwise or counterclockwise rotation.

Performance Specs

Internal Step-Up Ratio: 3.45:1
Max Speed: 55,000 RPM
Max Boost: 26 PSI
Max Flow: 1,400 CFM
Max Power: 950 HP
Peak Efficiency: 75%

Performance specs apply to units equipped with heavy duty gearcase.

Dimensions

Discharge OD: 2.75"
Inlet OD: 3.75"
Discharge ID: 2.38"
Inducer Diameter: 3.51"

The supercharger of choice for street/strip vehicles with modified engines

  • Straight cut spur gear
  • Available with straight or curved discharge and clockwise or counterclockwise rotation
  • Part numbers below do not include drive pulley
  • 8.75" Wide, 9.44" Tall, 5.52" Deep (not including input shaft)
