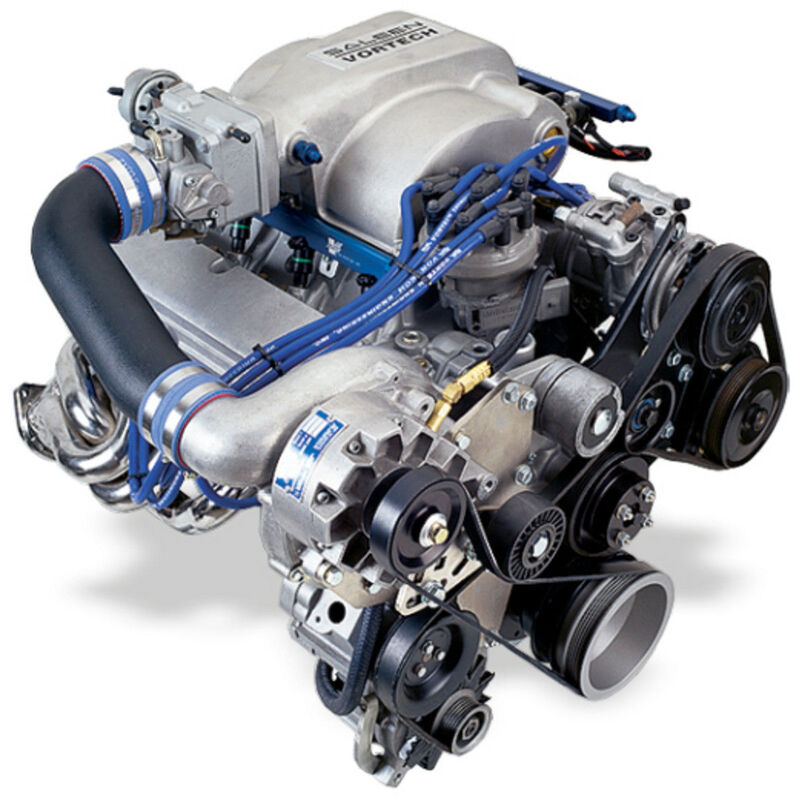

Vortech Superchargers, 1986-1993 5.0 Mustang Supercharging System w/V-3 SCi, Satin Finish (PART #VOR-4FA218-010L)

  • Vortech's Fox Body Mustang Systems are available as either a complete, fully calibrated bolt on, or as tuner kits for custom installations for 2,500+HP. We offer several Superchargers to choose from for your Tuner or Super High Output system. See the supercharger page or call the Vortech tech line for assistance. The engine oil lubricated V-2 supercharger is the preferred unit for sustained boost such as circuit road racing; also, a dedicated oil cooler and/or filter can be fitted.

  • Systems that include the V-3 internally lubricated supercharger do not require a connection between the oil pan and gearcase (V-1 and V-2 systems are engine oil fed and require oil lines).

  • Vortech supercharger systems are a great value. Dollar for dollar, Vortech systems deliver more horsepower than virtually any other method of upgrade. Also, driven normally, gas mileage often increases rather than decrease.

  • The Entry Level (5-6psi) Fox Body Mustang systems utilize Vortech's V-3 SCi supercharger. Continued development in Vortech's Lab resulted in the V-3 SCi. The "i" stands for improved and with its new patented oil control system and state of the art centrifugal compressor stage this V-3 literally blows away the competition. Industry leading adiabatic efficiency [SAE J1723 standard] means less heat is being generated, drive power is reduced and more net power is produced. Less heat also means better durability.

    • System Components and Features
  • - Technologically advanced, high-efficiency impeller and housing design developed in our SAE J1723 compliant supercharger test cell.
  • - Complete systems include a fuel management upgrade with fuel management unit (FMU).
  • - Cast aluminum supercharger mounting bracket assembly includes idler, drive belt and all hardware.
  • - Inlet and discharge duct connections utilize heat resistant silicon sleeves and premium quality stainless steel clamps.

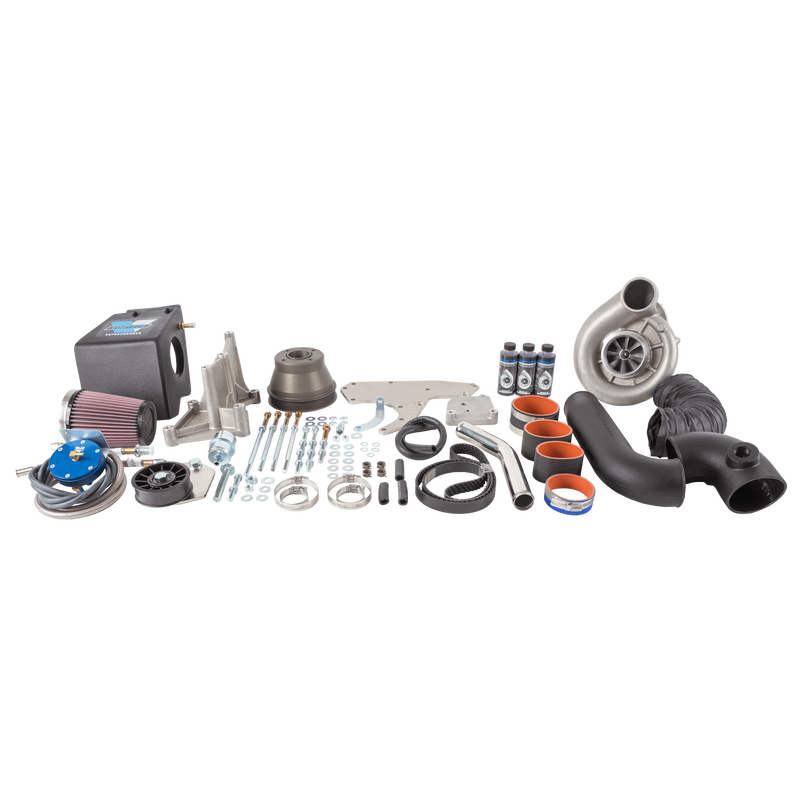

  • - Complete bolt-on system including all necessary belts, pulleys and reusable high-flow air filter.

    • Upgrades, Accessories and Spare Parts
  • - H.O. Upgrade Package: Upgrades 5-6 psi Entry Level System to 7-9 psi H.O. System spec., and includes all necessary components
  • - Power Cooler Upgrade Kit: Air-to-Water style charge cooler package allows for even higher horsepower gains per psi with minimal pressure loss.
  • - Battery Relocation Kit All charge-cooled systems for the '86-'93 Mustang require the battery relocation kit (sold separately).
  • Supercharger Pulleys
  • - 6-Rib pulleys: 2A036-312, 2A036-287, 2A036-262
  • - 8-Rib & 10-Rib S/C Pulley Packages With Underdrive and Non-Underdrive Accessories.
  • - Fuel Rails and Fuel Pumps
  • - Fuel Management Units and Super FMU
  • - Ignition Upgrade Assembly with MSD 6AL-BTM
  • - Bypass and Blowoff Valves
  • - Supercharger Oil Cooler
  • - Replacement Hardware Kit: includes replacement bolts, spacers and other hardware for supercharger mounting.

    • CARB Compliance
  • Complete systems are smog legal per California Air Resources Board (CARB) Executive Order # D-213-37

    • Warranty Information:
  • - 3-Year Supercharger Limited Warranty - Available with V-3 superchargers (if purchased as part of a complete street-legal system) for an additional $50.00. Note: Tuner kits are only eligible for a 1-Year Warranty. More information (PDF).
  • - 1-Year Supercharger Limited Warranty - Included with all superchargers except race/heavy-duty models. More information (PDF).

    • No POWER ADDER company produces more products for the 86-93 Fox Body Mustang than Vortech. For more than 25 years, we have demonstrated our product leadership with our wide range of super-efficient centrifugal superchargers. From complete, 50-state emissions-legal, 6-psi starter systems to full-blown (literally) 3,000+ horsepower V-30 series superchargers, Vortech has you covered.

    Vortech offers a bargain priced entry-level supercharger systems that allow you to build and improve as your budget allows. Upgrades can be matched to meet your end goal whether street scene or all out racer.
