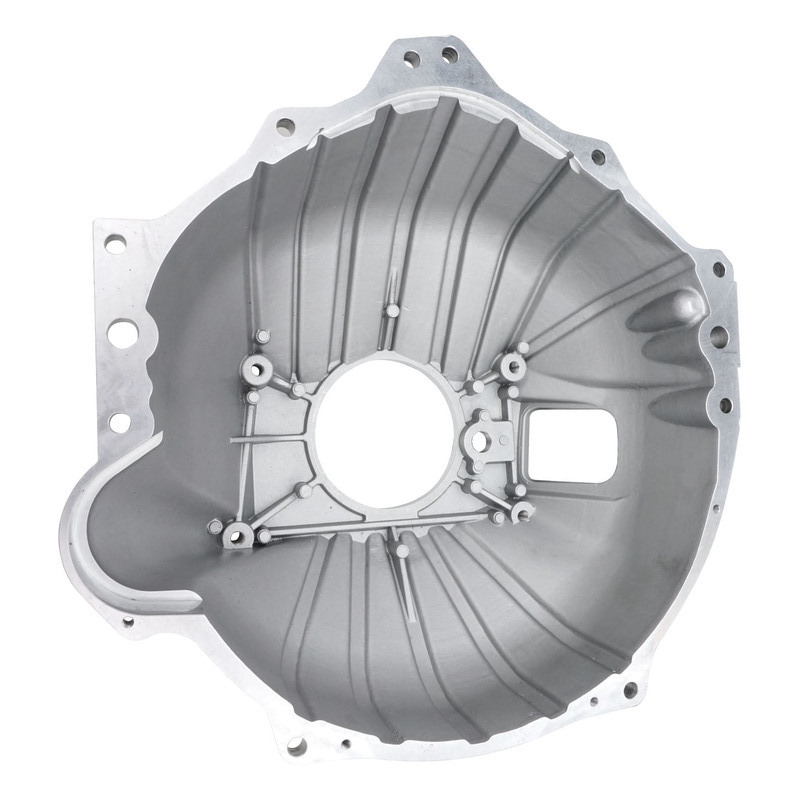

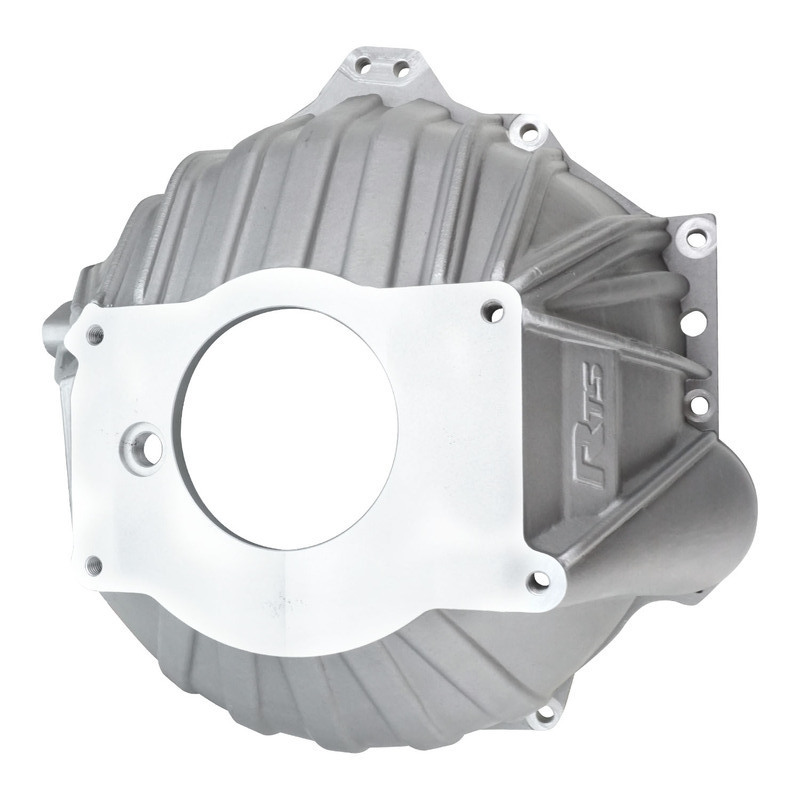

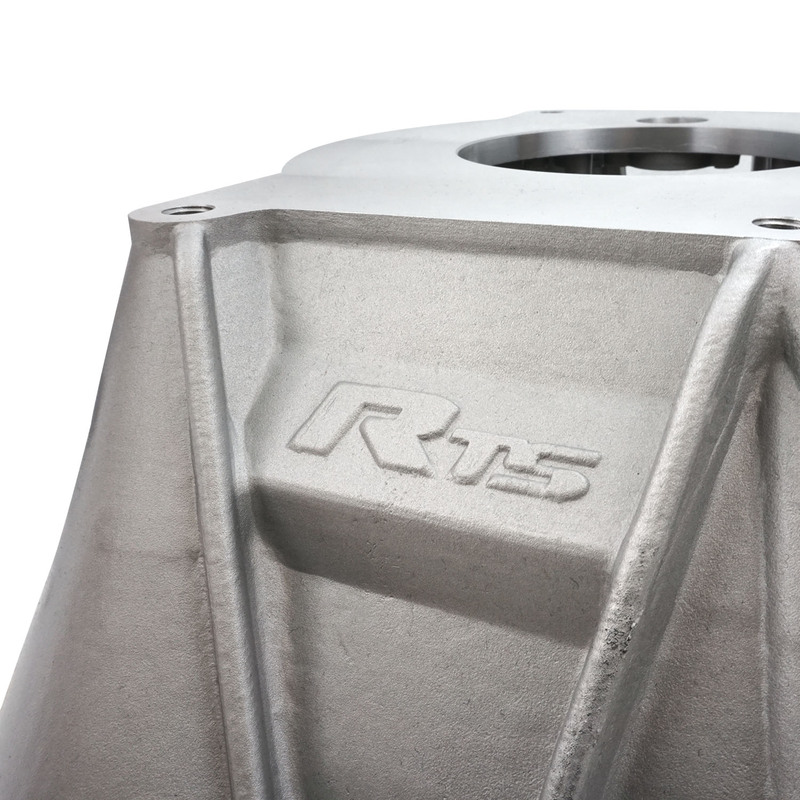

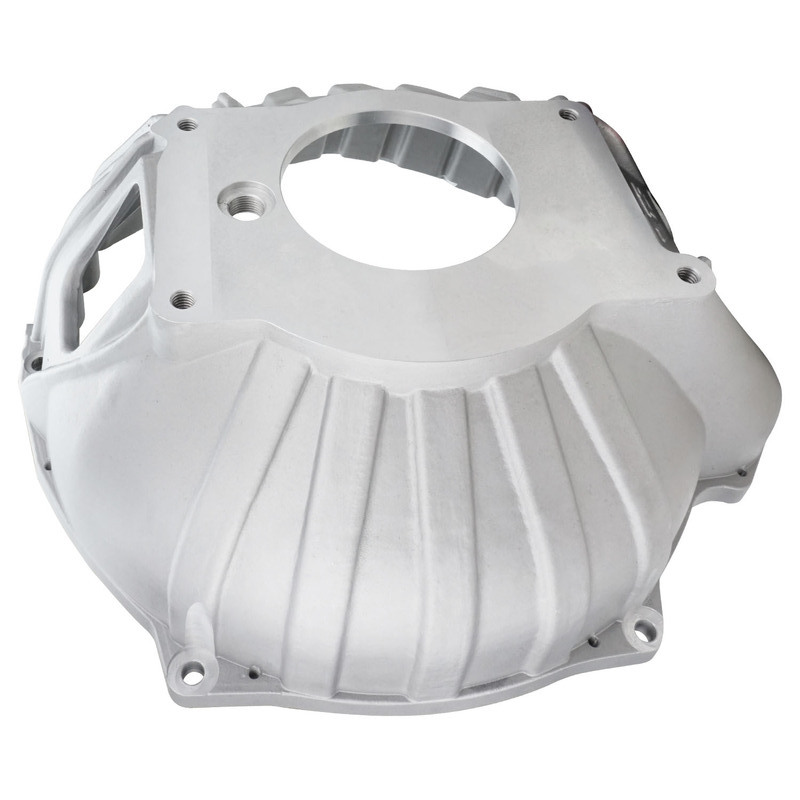

RTS’ replacement bellhousings are cast aluminium production style bellhousings built to Ford and GM specifications, ensuring you of a high quality product that’s right for the job. Some applications may require minor modifications for transmission clearance and mounting.

Features:

  • Lightweight cast aluminium design equivalent to the original equipment bellhousings
  • non-SFI rated option for projects that do not require a steel SFI rated unit
  • RTS branded premium quality
  • A356-T6 cast aluminium
  • Designed for hydraulic and mechanical fork throwout bearing linkage
  • Bellhousing depth: 6.45 in
  • Clutch fork opening: 2.125 in x 3.3 in
  • Transmission bore diameter: 4.684 in
  • No hardware included
  • LS correct dedicated bolt pattern, but will also fit SB & BB Chevrolet

Note: will not suit Holden V8 with GM/Chev bolt pattern.
