Autometer Throttle Stop Kit, Linkage Style, Includes Ab10K Bottle Kit, Dedenbear (SKU: DED-TS10K)

The Dedenbear TS10K combines the economical general purpose CO2 operated in-line linkage stop for carbs or injectors together with the AB10K CO2 bottle kit in one tidy package to ensure you've got what you need to install and operate the stop in your vehicle. The 3/4 inch bore and 2 inch stroke work well with single carb or throttle body injectors. Chromoly adjustment bolts ensure maximum durability. All Dedenbear linkage style throttle stops come with a needle valve to control the opening rate of the stop, quick disconnect fittings, stainless steel solenoid & cylinder, high temperature seals and plated steel parts for corrosion resistance.

  • Linkage Stop: 3/4 in. bore, 2 in. Stroke.
  • Adjustable needle valve allows precise and quick control of the opening rate of the stop.
  • Adapters for 10-32 and 1/4-28 threaded throttle cables and linkages included as standard.
  • 1/4 in. Quick Disconnect CO2 fitting

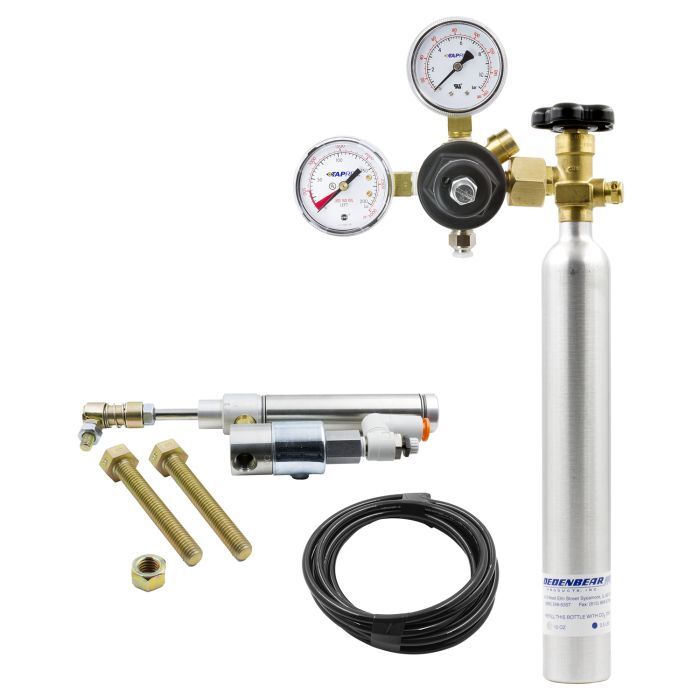

  • Includes 10 oz. CO2 bottle, valve, dual gauge adjustable pressure regulator, and 10 feet of 1/4 inch nylon air line.
  • Bottle measures 16.5 inches tall and 2 inches in diameter.

SPECIFICATIONS

Series DEDENBEAR
Product Type Throttle Stop, CO2
Instruction Manual Part Number 2650-1336
