Autometer Throttle Stop Kit Linkage Style, Double Acting, Knob Adjust Incl Ab10K Btl Kit, Dedenbear (SKU: DED-TS30K)

The Dedenbear T30K combines the heavy duty TS30 stop together with the AB10K CO2 bottle kit in one tidy package to ensure you've got what you need to install and operate the stop in your vehicle. 'Air on / air off' 7/8 inch bore and 2.25 inch stroke cylinder that makes this stop super smooth and excellent for high horsepower applications. Suitable for most induction systems carbureted or injected. Premium remote solenoid package included. Incredibly simple knob adjustment. All Dedenbear linkage style throttle stops come with a needle valve to control the opening rate of the stop, quick disconnect fittings, stainless steel solenoid & cylinder, high temperature seals and plated steel parts for corrosion resistance.

  • Linkage Stop: 7/8 in. bore, 2.25 in. Stroke.
  • Adjustable needle valve allows precise and quick control of the opening rate of the stop.
  • Adapters for 10-32 and 1/4-28 threaded throttle cables and linkages included as standard.
  • 1/4 in. Quick Disconnect CO2 fitting
  • Dual acting CO2 'air on / air off' actuation provides precise tunability of stop close and open rates to allow for smooth and consistent transitions onto and off of the stop during a run.

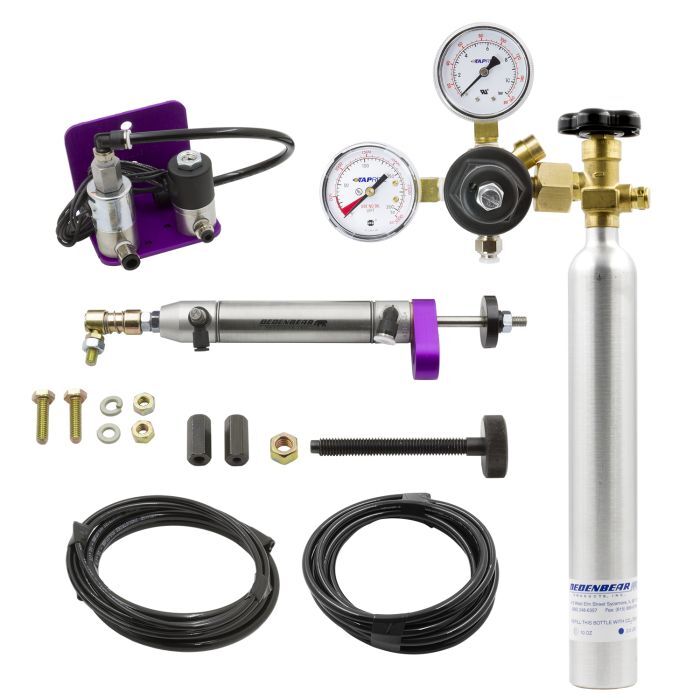

  • Includes 10 oz. CO2 bottle, valve, dual gauge adjustable pressure regulator, and 10 feet of 1/4 inch nylon air line.
  • Bottle measures 16.5 inches tall and 2 inches in diameter.

SPECIFICATIONS

Series DEDENBEAR
Product Type Throttle Stop, CO2
Instruction Manual Part Number 2650-1335
