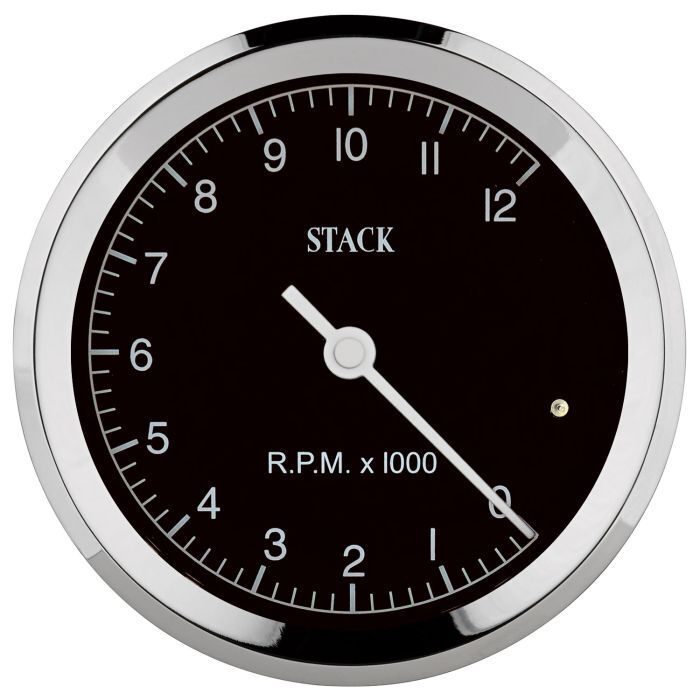

Autometer Tachometer, Classic, 80mm, Black, 0-12K Rpm, Stack Instruments (SKU: STK-ST200C-012)

Stack’s 88mm and 125mm Classic tachometers boast solid-state electronics whilst faithfully replicating the styling of original mechanical tachometers have long been favorites with a loyal following. The Classic Clubmans features the legendary, extremely rugged, STACK steppermotor movement, with Digital Quartz accuracy for unparalleled precision. Configurable for most engine types utilizing standard and magneto style ignitions, STACK clubman classic tachometers come standard with Peak RPM ‘Tell-Tale’ memory and a user-configurable output to drive an optional external gear shift light. Push-button programming and simple four wire harness make installation simple. Off-road and open top vehicle aficionados will appreciate the Clubman’s aluminium casing, which is fully sealed against dust and moisture, to exacting IP67 standards.

  • Highly polished chrome bezel
  • Accurate replica of original classic style instrumentation
  • Solid-state electronics for exceptional reliability
  • Stepper-motor needle technology
  • Chrome style bezel
  • No backlighting
  • Peak RPM Tell Tale Memory
  • Configurable for all negative earth ignition systems and magneto ignition systems
  • Fully sealed against water and dust to IP67.
  • User adjustable shift light option (lamp not included).

SPECIFICATIONS

Series STACK INSTRUMENTS
Product Type Gauge Tachometer
Dial Color Black
Lens Style Flat, Clear
Bezel Color Chrome
Bezel Style Classic
Size (Metric) 80mm
Size (Standard) 3.175"
Cup/Hole Size (Metric) 81.5mm
Cup/Hole Size (Standard) 3.210"
Outer Bezel Diameter 3.540"
Lighting Type NONE
Lighting Color NONE
Pointer Color White
Movement Electric, Digital Stepper Motor
Gauge Type In-Dash Tachometer
Range 0-12,000 RPM
Includes (Replacement) Wire Harness Yes
Includes (Replacement) Mounting Hardware ST913029
Instruction Manual Part Number 2650-1756
